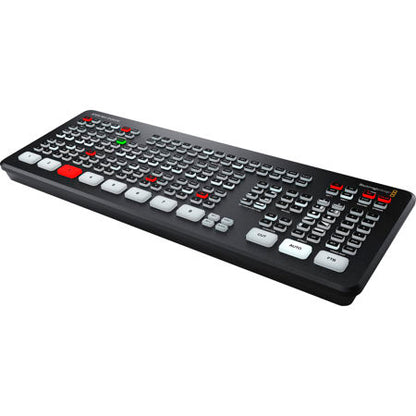

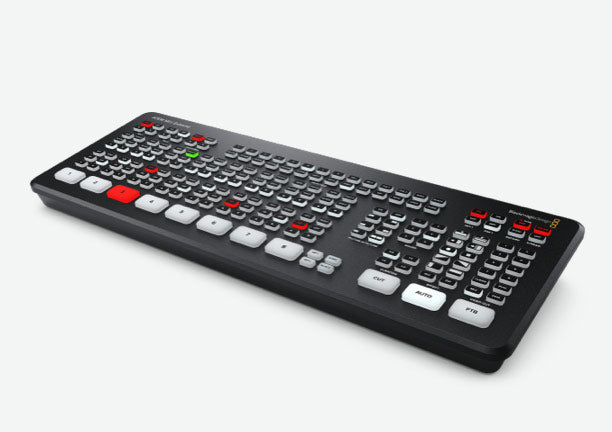

The Blackmagic ATEM Mini Extreme is the big-format member of the ATEM Mini family, built for shows that have outgrown four inputs. It switches eight HDMI cameras and computers live, streams on its own and records to USB, and adds the extra keyers, outputs and effects that more ambitious productions need, all in a single box you run by hand.
Overview
The Extreme doubles the input count to eight standards-converted HDMI connections, so you can run a full multi-camera shoot plus computers for slides or playback without an external router. As with the Pro, a built-in streaming engine sends your program straight to YouTube, Facebook, Twitch and other RTMP services over Ethernet, recording to a USB-C disk in H.264 at the same time, and the USB connection presents the switched program to your computer as a webcam for Zoom, Teams and OBS.
Where the Extreme pulls ahead is production firepower. It has more upstream keyers and DVE channels than the Mini Pro for layered graphics and picture-in-picture, a large multiview to watch every input at once, two HDMI outputs for program and an auxiliary feed, and a headphone output plus microphone inputs for hands-on audio. The Fairlight mixer gives you EQ and dynamics across the board, and the media pool holds stills for titles and lower thirds.
It is still a combined switcher and control surface, so everything is at your fingertips on the front panel, while Ethernet lets you place the unit near the cameras and control it remotely from a quieter room.
Key features
- Eight standards-converted HDMI inputs for cameras and computers at mixed formats
- Built-in streaming engine to YouTube, Facebook, Twitch and other RTMP services over Ethernet
- Direct program recording to USB-C disks in H.264
- USB webcam output for Zoom, Teams, OBS and any streaming software
- More upstream keyers and DVE channels than the Mini Pro for layered effects
- Large multiview to monitor every input, preview and program on one screen
- Two HDMI outputs for program and auxiliary feeds
- Fairlight audio mixer with EQ and dynamics, mic inputs and headphone monitoring
- Supports video standards up to 1080p60
At a Glance
| Brand | Blackmagic Design |
|---|---|
| Model | ATEM Mini Extreme |
| Type | HDMI live production switcher |
| Inputs | 8 standards-converted HDMI |
| Outputs | 2 HDMI (program and auxiliary) |
| Streaming | Built-in engine, direct to RTMP over Ethernet |
| Recording | Program to USB-C disk in H.264 |
| Effects | Multiple upstream keyers and DVE channels, chroma key |
| Audio | Fairlight mixer with EQ and dynamics, mic in, headphone out |
| Max format | 1080p60 |
| SKU / MPN | BMD-SWATEMMINICEXT |
| Warranty | Full Blackmagic Design manufacturer warranty |
| Availability | Special order, brought in after purchase |
Who it is for
The ATEM Mini Extreme suits larger live productions that need more than four cameras and richer graphics: sports, concerts, multi-presenter events and broadcast-style studios. If you need every input recorded separately for editing, look at the ATEM Mini Extreme ISO G2, which adds ISO recording, a pro control panel and CFexpress and Thunderbolt storage.
Frequently Asked Questions
How many inputs does the ATEM Mini Extreme have?
Eight standards-converted HDMI inputs, so you can mix cameras and computers at different formats.
How is it different from the ATEM Mini Pro?
It doubles the inputs to eight and adds more keyers and DVE channels, a larger multiview, a second HDMI output and more audio connections for bigger productions.
Can it stream and record on its own?
Yes. It has a built-in streaming engine for RTMP services over Ethernet and records the program to USB-C in H.264, with no computer required.
Does it work as a webcam?
Yes. The USB output presents the switched program to your computer as a standard webcam for any streaming software.
Is it authentic and under warranty?
Yes. Victory Musical Instruments is an authorized Blackmagic Design dealer, so it ships new with the full Blackmagic Design manufacturer warranty.
