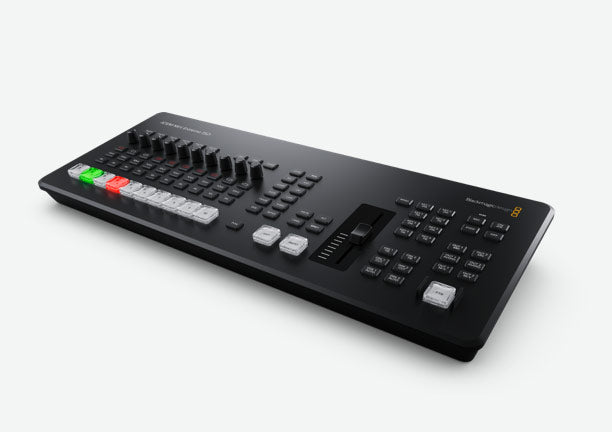

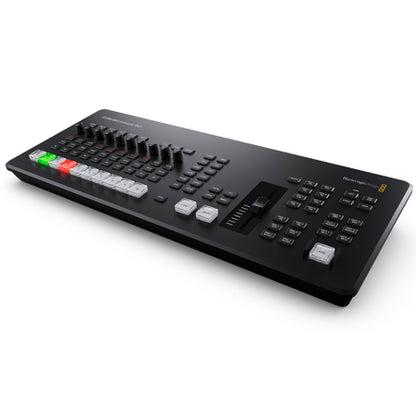

The Blackmagic ATEM Mini Extreme ISO G2 is the most capable switcher in the ATEM Mini line and, because it combines the switcher and a professional control panel in one chassis, one of the most portable broadcast tools you can buy. It switches eight HDMI sources, records every one of them as a separate file, and connects to modern storage and replay workflows through CFexpress, Thunderbolt and 10G Ethernet.
Overview
The G2 carries a redesigned professional control surface: large NKK red and green source-select buttons, multiple knob controls, a hardware T-bar fader and a cleaner button layout, so a single operator can run a high-end show by feel. Eight standards-converted HDMI inputs handle cameras and computers at mixed formats, and three independent HDMI outputs can each be routed to program, preview or multiview.
It records ISO files of all eight inputs plus the program, and the storage options are what set it apart. There is a built-in CFexpress card slot and a Thunderbolt port for record and playback, and a 10G Ethernet connection that can expose the CFexpress card or an external disk as a shared network drive. Through Thunderbolt you get fill and key playback, live capture and a real live-action replay system: with DaVinci Resolve you can press the Point of Interest button and instantly play back all eight ISO angles, build a replay and push it out, something no traditional replay unit does at this size.
Recorded media can sync to Blackmagic Cloud, so an editor can open the DaVinci Resolve project and start cutting while you are still live. Audio is handled properly too, with balanced XLR input, MADI input, a Fairlight status display and headphone monitoring. There is a media pool with 200 frames of animation, plus DVE, chroma key and a media player. It streams over RTMP and presents a USB webcam output for software like Zoom and OBS.
Key features
- Integrated professional control panel with NKK source buttons, knobs and a hardware fader
- Eight standards-converted HDMI inputs and three independent routable HDMI outputs
- ISO recording of all eight inputs plus the program
- Built-in CFexpress slot and Thunderbolt for record and playback
- 10G Ethernet to share CFexpress or external storage as a network drive
- Live-action replay through DaVinci Resolve using the Point of Interest button
- Blackmagic Cloud sync so editors can cut while you are still live
- Balanced XLR and MADI audio inputs, Fairlight status display, headphone monitoring
- Built-in streaming engine and USB webcam output
- Media pool with 200 frames of animation, DVE, chroma key and media player
- Supports video standards up to 1080p60
At a Glance
| Brand | Blackmagic Design |
|---|---|
| Model | ATEM Mini Extreme ISO G2 |
| Type | HDMI live switcher with integrated control panel |
| Inputs | 8 standards-converted HDMI |
| Outputs | 3 independent HDMI (program, preview or multiview) |
| ISO recording | All 8 inputs plus program |
| Storage | CFexpress slot, Thunderbolt, 10G Ethernet network share |
| Replay | Live-action replay via DaVinci Resolve, Blackmagic Cloud sync |
| Audio | Balanced XLR in, MADI in, Fairlight display, headphone out |
| Effects | DVE, chroma key, media player, 200-frame animation pool |
| Max format | 1080p60 |
| SKU / MPN | BMD-SWATEMMINICEXTISOG2 |
| Warranty | Full Blackmagic Design manufacturer warranty |
| Availability | Special order, brought in after purchase |
Who it is for
The ATEM Mini Extreme ISO G2 is for high-end portable productions and broadcast studios that want a single operator running an eight-camera show with replay and a clean post workflow: sports, large worship campuses, esports and professional live events. If you do not need ISO recording, CFexpress and Thunderbolt, the ATEM Mini Extreme covers eight-input live switching at a lower price.
Frequently Asked Questions
What makes the G2 different from the other ATEM Minis?
It adds a professional hardware control panel, three independent outputs, ISO recording of all eight inputs, and CFexpress, Thunderbolt and 10G Ethernet storage and replay options.
Can it run live-action replay?
Yes. Through Thunderbolt and DaVinci Resolve you can press the Point of Interest button to play back all eight ISO angles and build replays in real time.
Can an editor start before the show ends?
Yes. Media can sync to Blackmagic Cloud so an editor can open the DaVinci Resolve project and cut while you are still live.
What audio connections does it have?
Balanced XLR input, MADI input, a Fairlight status display and a headphone output for monitoring.
Is it authentic and under warranty?
Yes. Victory Musical Instruments is an authorized Blackmagic Design dealer, so it ships new with the full Blackmagic Design manufacturer warranty.
