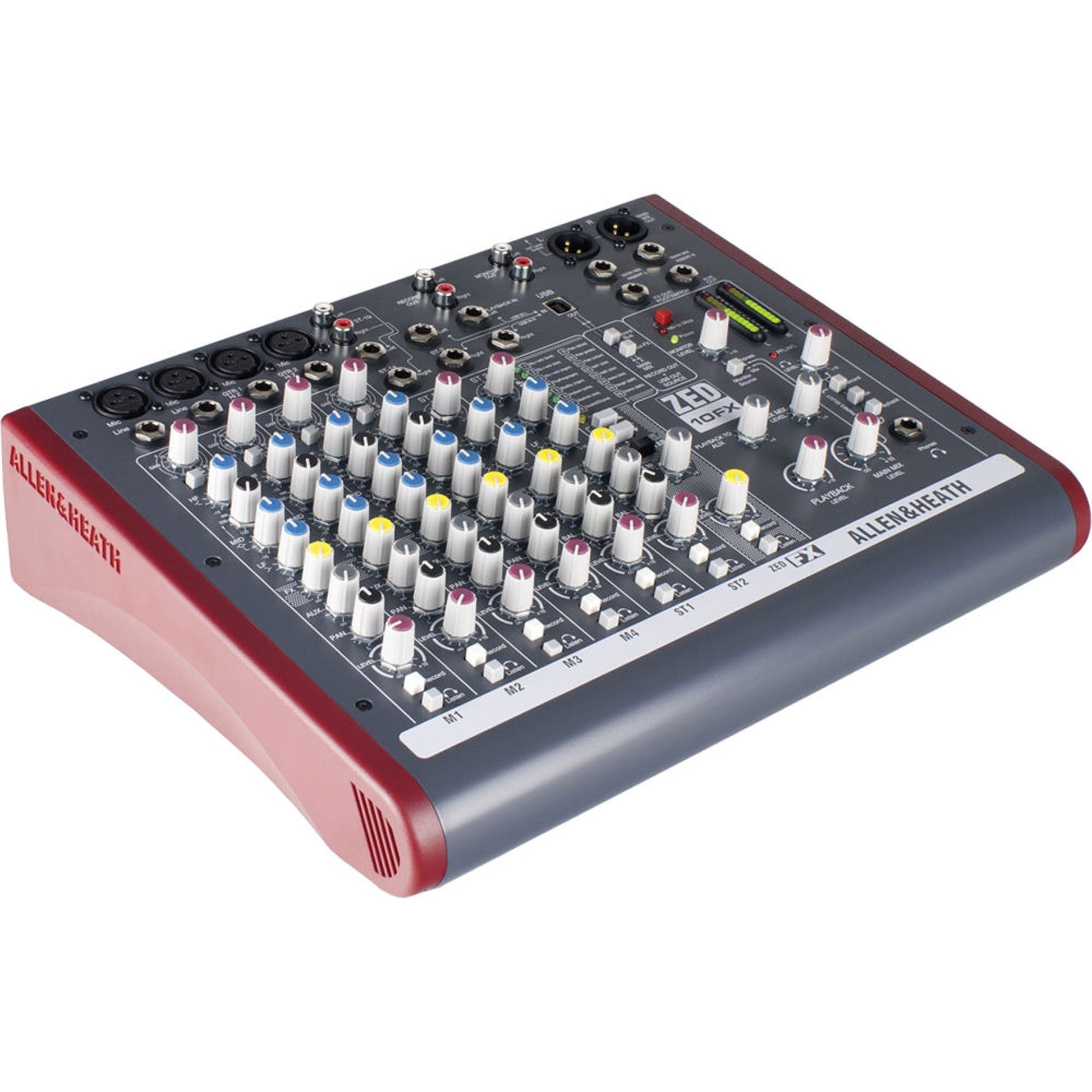

Allen & Heath ZED-10FX is a 10-channel analog mixer with a 2-in 2-out USB audio interface and onboard digital effects. It carries 4 mic/line inputs on XLR and TRS jack sockets, 2 stereo inputs on TRS plus one on RCA, 2 Hi-Z instrument inputs, 3-band EQ with a sweepable mid, and XLR main outputs with insert points.
The ZED-10 with reverb already patched in.
ZED Mini puts a working live mixer, a USB recording interface and Allen & Heath preamps in a frame small enough to carry one-handed. Every model in the range takes two Hi-Z instrument inputs, so a guitar or bass plugs straight in with no DI box, and every one carries a 2-in 2-out USB interface for recording the show or playing tracks back into it.
The preamp is where the ZED range earns its reputation. Allen & Heath's DuoPre design splits the gain into two stages, which keeps noise down and headroom high across the whole range of the control rather than only at the top of it. It is the same R&D team that builds the preamps on the company's flagship touring consoles.
MusiQ EQ was designed specifically for the ZED mixers. Rather than borrowing a generic curve, the analogue engineers set the target frequencies and the slope of each band around what actually needs correcting on instruments and voices, which is why it tends to sound right with less movement of the controls.
At a Glance
| Type | Analog mixer with USB interface and FX |
| Mic/line inputs | 4, XLR and TRS jack |
| USB audio | 2 in / 2 out |
| Effects | Onboard digital FX |
| Stereo inputs | 2 TRS plus 1 RCA |
| Instrument inputs | 2 Hi-Z |
| EQ | 3-band with sweepable mid |
| Main outputs | XLR with insert points |
What Does the FX Engine Add?
Onboard digital reverb and delay, which means vocal effects without an outboard unit, an aux send and a return. For a small system run without an engineer, having the effects inside the desk is usually the difference between using them and not.
Who Is the ZED-10FX For?
Small bands, worship teams and venues that want effects on stage without a rack, plus anyone recording rehearsals who wants a monitor mix with reverb on it.
How Is It Different From the ZED-10?
The onboard digital FX engine is the addition. Inputs, USB interface, EQ, insert points and outputs are otherwise identical.
Can I Run Backing Tracks Through It?
Yes. The USB interface returns a stereo playback from a computer, and there are two TRS stereo channels plus an RCA pair for other sources.
Connections
| Mic/line inputs | 4, XLR and TRS jack sockets |
| Stereo inputs | 2 TRS, 1 RCA |
| Instrument inputs | 2 Hi-Z |
| USB audio | 2 in / 2 out |
| Main outputs | XLR with insert points |
Why Allen & Heath?
Allen & Heath has built mixing consoles in Cornwall, England since 1969, starting with desks for Pink Floyd, Genesis and The Who. The company still designs its own analog preamps and EQ in house, and the same R&D team works on both the flagship dLive touring systems and the compact ZED range. That is why a small ZED mixer carries preamps developed alongside consoles used on arena tours.
Frequently Asked Questions
Is this a genuine Allen & Heath product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging with full manufacturer support.
Is this covered by warranty?
Yes. This console carries the full Allen & Heath manufacturer warranty, registered to you as the original purchaser. Call 844-687-4208 for the current term.
How is it different from the ZED-10?
It adds an onboard digital FX engine. Everything else, including the 2 in 2 out USB interface, is the same.
Does it have faders or knobs?
The ZED-10FX uses faders on its channels. The ZED60 models in the same range use premium 60 mm faders.
Can I plug a guitar in directly?
Yes, two Hi-Z instrument inputs accept guitar or bass without a DI box.
