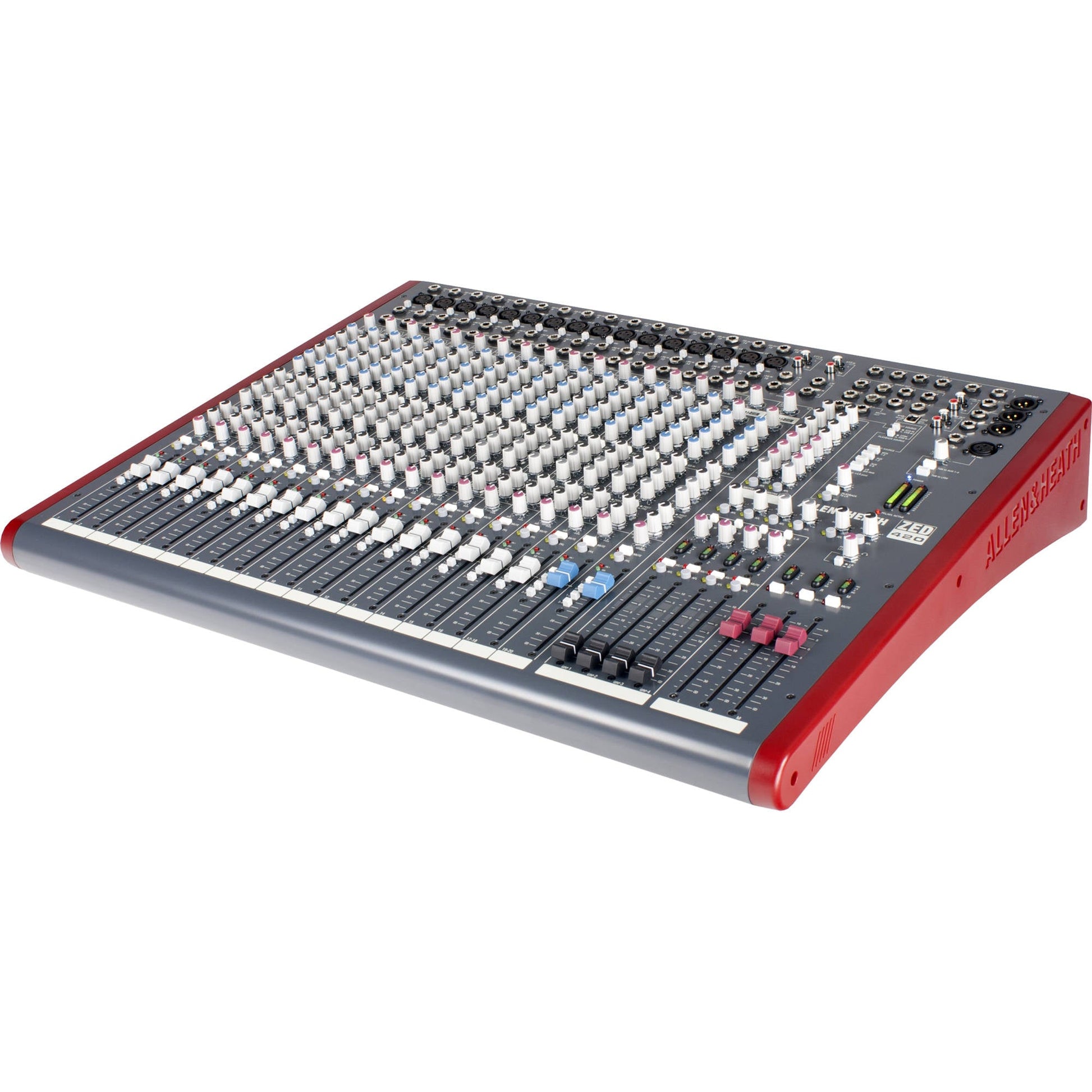

Allen & Heath ZED-420 is a four-bus analog mixer with 16 mic/line channels with inserts, 2 stereo channels, a 2-in 2-out USB audio interface, 6 aux sends split two pre-fade, two post-fade and two switchable, 4 sub groups, a 7x2 matrix, 4-band EQ with sweepable mids, XLR main outputs with insert points and 100 mm faders.
Sub groups and a matrix, which is where a two-bus desk stops being enough.
ZED Max is the four-bus end of the ZED range, built for larger live work where subgrouping and a matrix are not optional. Every model carries four sub groups, six aux sends split two pre-fade, two post-fade and two switchable, a 7x2 matrix, 4-band EQ with sweepable mids, XLR main outputs with insert points and 100 mm faders.
The preamp is where the ZED range earns its reputation. Allen & Heath's DuoPre design splits the gain into two stages, which keeps noise down and headroom high across the whole range of the control rather than only at the top of it. It is the same R&D team that builds the preamps on the company's flagship touring consoles.
MusiQ EQ was designed specifically for the ZED mixers. Rather than borrowing a generic curve, the analogue engineers set the target frequencies and the slope of each band around what actually needs correcting on instruments and voices, which is why it tends to sound right with less movement of the controls.
At a Glance
| Type | 4-bus analog mixer |
| Mic/line channels | 16, with inserts |
| Stereo channels | 2 |
| Sub groups | 4 |
| Matrix | 7x2 |
| Aux sends | 6, two pre, two post, two switchable |
| EQ | 4-band with sweepable mids |
| USB audio | 2 in / 2 out |
What Do Sub Groups and a Matrix Give Me?
Four sub groups let related channels ride on a single fader, so a whole drum kit or a vocal group moves together. The 7x2 matrix builds separate output mixes from the groups and mains, which is how delay speakers, fill speakers, a lobby feed and a broadcast mix get fed independently from the same desk.
Who Is the ZED-420 For?
Theaters, larger houses of worship, schools with a real auditorium, and production companies covering events where multiple output zones are the normal case rather than the exception.
How Are the Six Auxes Split?
Two pre-fade for monitors, two post-fade for effects and aux-fed subs, and two switchable pre or post depending on what the show needs. That covers monitors and effects at the same time without compromise.
How Is It Different From the ZED-24?
Both carry 16 mic/line channels. The ZED-420 adds 4 sub groups, a 7x2 matrix, six auxes instead of four, and 4-band EQ with sweepable mids instead of 3-band with one sweepable mid.
Connections
| Mic/line channels | 16, with inserts |
| Stereo channels | 2 |
| Sub groups | 4 |
| Matrix | 7x2 |
| Aux sends | 6 |
| USB audio | 2 in / 2 out |
| Main outputs | XLR with insert points |
Why Allen & Heath?
Allen & Heath has built mixing consoles in Cornwall, England since 1969, starting with desks for Pink Floyd, Genesis and The Who. The company still designs its own analog preamps and EQ in house, and the same R&D team works on both the flagship dLive touring systems and the compact ZED range. That is why a small ZED mixer carries preamps developed alongside consoles used on arena tours.
Frequently Asked Questions
Is this a genuine Allen & Heath product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging with full manufacturer support.
Is this covered by warranty?
Yes. This console carries the full Allen & Heath manufacturer warranty, registered to you as the original purchaser. Call 844-687-4208 for the current term.
How many sub groups does it have?
Four, plus a 7x2 matrix for building independent output mixes.
How many aux sends?
Six: two pre-fade, two post-fade and two switchable pre or post.
What EQ does it have?
4-band with sweepable mids, a step up from the 3-band with one sweepable mid used across ZED Mid.
