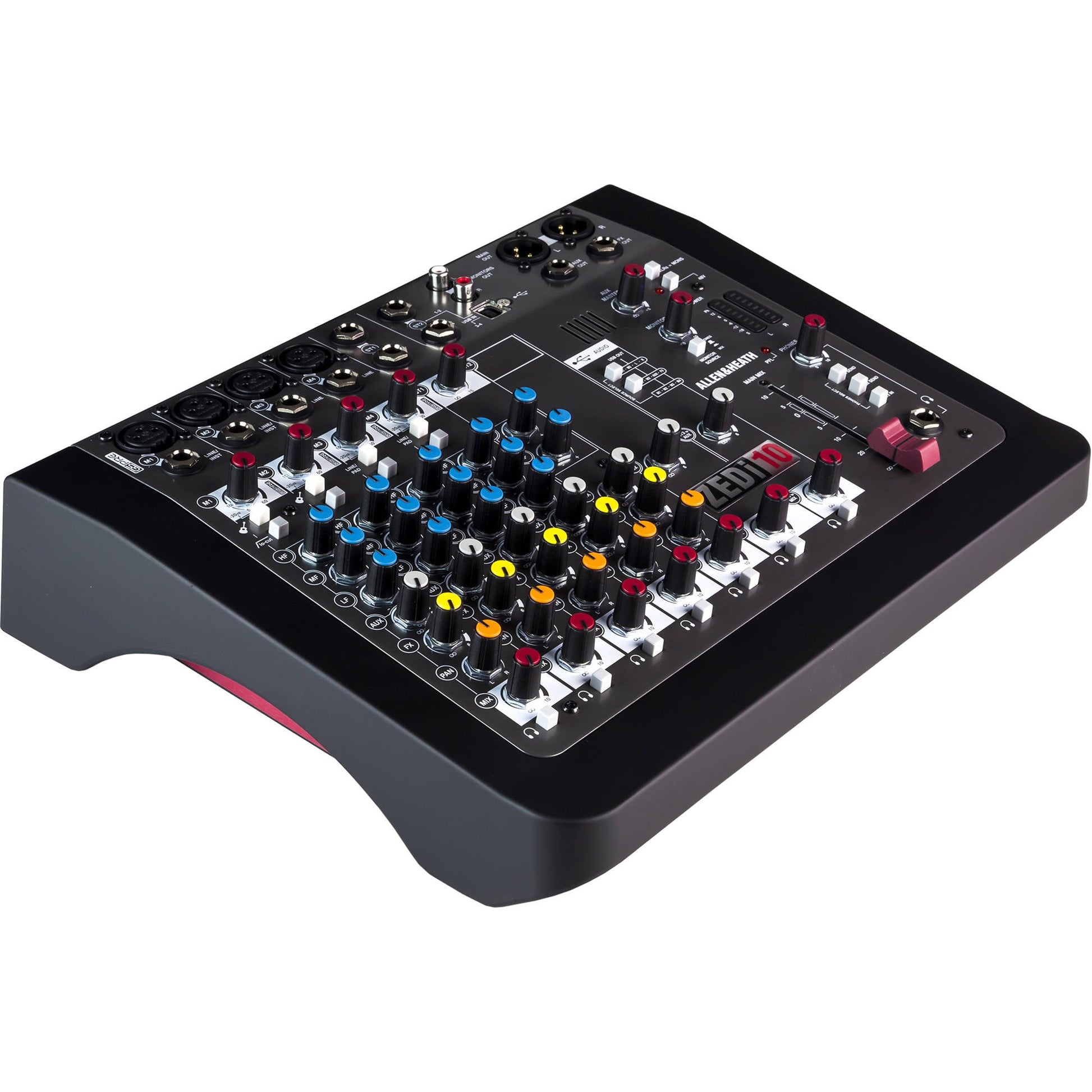

Allen & Heath ZEDi-10 is a hybrid compact mixer and 4-in 4-out USB audio interface with 4 mic/line inputs on XLR and TRS, 2 stereo inputs on TRS, and 2 Hi-Z instrument inputs. It carries 3-band EQ with a low cut filter, XLR main outputs and 48 V phantom power, and runs standalone or as a computer interface.
Four Allen & Heath preamps into a laptop, and a working mixer when the laptop is closed.
Four in and four out over USB is the difference that matters against the ZEDi-8. Four separate sources reach the computer as separate tracks rather than as a stereo mix, which means a multitrack session is possible rather than only a stereo capture.
As a mixer it stands on its own with no computer connected: four mic or line channels with 48 V phantom, two stereo channels, and two Hi-Z inputs for guitar or bass straight in. The EQ steps up to 3-band with a low cut filter, which is enough to work with rather than only to correct.
For a small studio that also plays live, this removes the usual duplication of owning a mixer for the room and an interface for the desk.
At a Glance
| Type | Hybrid compact mixer and USB interface |
| Mic/line inputs | 4, XLR and TRS jack |
| USB audio | 4 in / 4 out |
| Stereo inputs | 2, TRS jack |
| Instrument inputs | 2 Hi-Z |
| EQ | 3-band with low cut filter |
| Main outputs | XLR |
| Phantom power | 48 V |
Can I Multitrack With the ZEDi-10?
Yes, up to four channels. The four in and four out USB interface sends four separate sources to the computer as individual tracks rather than as a single stereo mix, which is what multitracking requires.
Who Is the ZEDi-10 For?
Small studios that also need a live mixer, bands recording rehearsals as separate tracks, podcasters with several microphones, and anyone who would otherwise own both a compact mixer and a four-channel interface.
How Is It Different From the ZEDi-8?
Four mic/line inputs instead of two, four in and four out USB instead of two, and 3-band EQ instead of 2-band. The Hi-Z inputs, phantom power and XLR outputs are the same.
Does It Have Onboard Effects?
No. The ZEDi-10FX is the same mixer with an internal digital FX engine added.
Connections
| Mic/line inputs | 4, XLR and TRS jack sockets |
| Stereo inputs | 2, TRS jack sockets |
| Instrument inputs | 2 Hi-Z |
| USB audio | 4 in / 4 out |
| Main outputs | XLR |
| Phantom power | 48 V |
Why Allen & Heath?
Allen & Heath has built mixing consoles in Cornwall, England since 1969, starting with desks for Pink Floyd, Genesis and The Who. The company still designs its own analog preamps and EQ in house, and the same R&D team works on both the flagship dLive touring systems and the compact ZED range. That is why a small ZED mixer carries preamps developed alongside consoles used on arena tours.
Frequently Asked Questions
Is this a genuine Allen & Heath product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging with full manufacturer support.
Is this covered by warranty?
Yes. This console carries the full Allen & Heath manufacturer warranty, registered to you as the original purchaser. Call 844-687-4208 for the current term.
How many channels can I record at once?
Four. The USB interface is 4 in and 4 out, so four sources arrive at the computer as separate tracks.
Does it work without a computer?
Yes. It is a complete analog mixer whether or not USB is connected.
Does it have effects?
No. The ZEDi-10FX adds an internal digital FX engine to the same platform.
