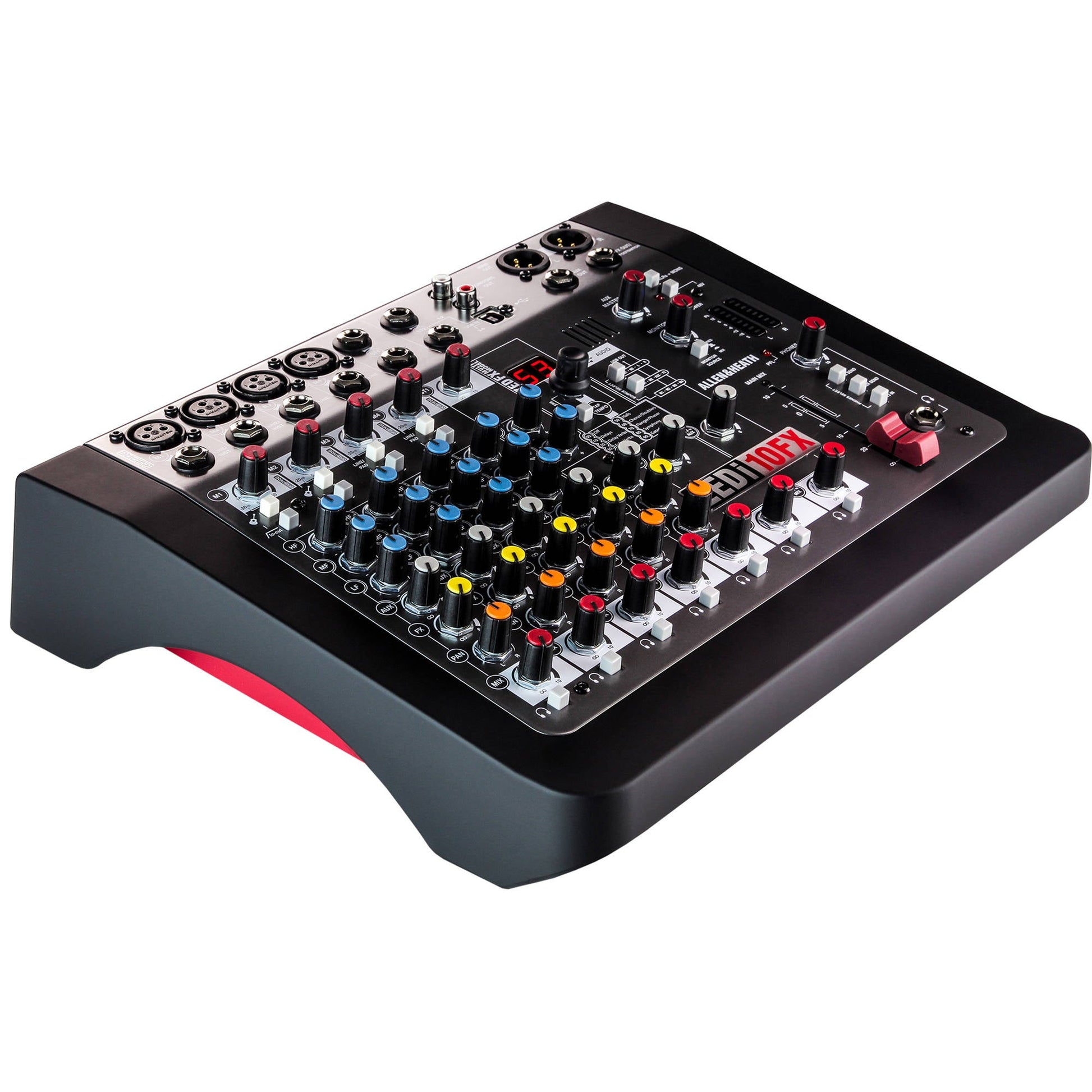

Allen & Heath ZEDi-10FX is a hybrid compact mixer and 4-in 4-out USB audio interface with onboard digital effects. It carries 4 mic/line inputs on XLR and TRS, 2 stereo inputs, 2 Hi-Z instrument inputs, 3-band EQ with a low cut filter, XLR main outputs and 48 V phantom power.
Everything the ZEDi-10 does, with reverb already in the box.
This is the ZEDi-10 with an internal digital FX engine added. The audio path, the four in and four out USB interface, the 3-band EQ and the Hi-Z instrument inputs are unchanged.
Onboard effects matter most in the two situations this mixer is bought for. Live, vocal reverb is available without an outboard unit or an aux loop. Tracking, singers monitor with reverb while the recorded signal stays dry, which is the setup most people want and the one that usually takes extra routing to achieve.
Four separate channels reach the computer as individual tracks, so a rehearsal or a session multitracks properly rather than arriving as a stereo bounce.
At a Glance
| Type | Hybrid compact mixer and USB interface with effects |
| Mic/line inputs | 4, XLR and TRS jack |
| USB audio | 4 in / 4 out |
| Effects | Onboard digital FX engine |
| Stereo inputs | 2, TRS jack |
| Instrument inputs | 2 Hi-Z |
| EQ | 3-band with low cut filter |
| Phantom power | 48 V |
Can I Monitor With Reverb and Record Dry?
Yes, and it is a common reason to choose this version. The effects sit in the mixer, so a singer can hear reverb in the monitor path while the signal reaching the computer over USB stays dry and gets treated in the session instead.
Who Is the ZEDi-10FX For?
Home and project studios that also play live, podcasters and streamers with several microphones, and small venues that need effects on stage without an outboard rack.
How Is It Different From the ZEDi-10?
The onboard digital FX engine is the addition. Inputs, USB channel count, EQ, phantom power and outputs are the same.
How Many Channels Can I Record at Once?
Four. The USB interface is 4 in and 4 out, so four sources land in the session as separate tracks.
Connections
| Mic/line inputs | 4, XLR and TRS jack sockets |
| Stereo inputs | 2, TRS jack sockets |
| Instrument inputs | 2 Hi-Z |
| USB audio | 4 in / 4 out |
| Main outputs | XLR |
| Phantom power | 48 V |
Why Allen & Heath?
Allen & Heath has built mixing consoles in Cornwall, England since 1969, starting with desks for Pink Floyd, Genesis and The Who. The company still designs its own analog preamps and EQ in house, and the same R&D team works on both the flagship dLive touring systems and the compact ZED range. That is why a small ZED mixer carries preamps developed alongside consoles used on arena tours.
Frequently Asked Questions
Is this a genuine Allen & Heath product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging with full manufacturer support.
Is this covered by warranty?
Yes. This console carries the full Allen & Heath manufacturer warranty, registered to you as the original purchaser. Call 844-687-4208 for the current term.
Does the USB output carry the effects?
The FX engine sits in the mixer's signal path. Routing determines whether the effect reaches the USB send, which allows monitoring wet while recording dry. Call 844-687-4208 to confirm the routing for your setup.
How is it different from the ZEDi-10?
It adds an onboard digital FX engine. Everything else, including the 4 in 4 out USB interface and 3-band EQ, is the same.
Can I plug a guitar in directly?
Yes, two Hi-Z instrument inputs accept guitar or bass without a DI box.
