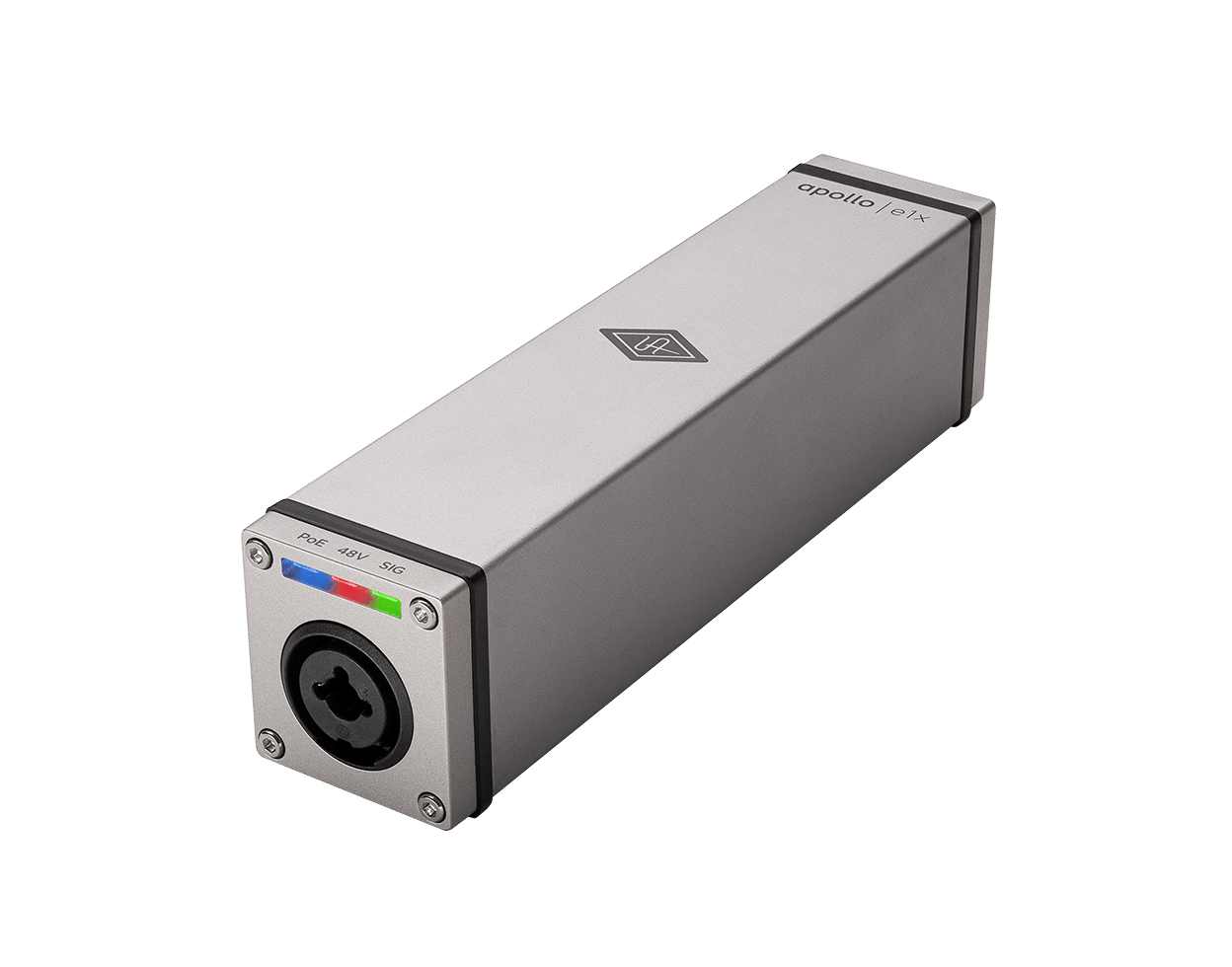

Universal Audio Apollo e1x is a single-channel Unison microphone and line preamp with Dante networked audio, built to expand an Apollo x16D. Up to 16 units run per Apollo x16D depending on DSP resources, gain and phantom power are controlled over the network from UAD Console, and it mounts on a threaded 5/8 in. microphone stand.
A Unison preamp that lives at the microphone instead of in the rack.
The point of the e1x is distance. Rather than running a long analog microphone cable back to the rack, the preamp sits at the source and the signal travels the rest of the way as Dante over the network. Gain, phantom power, polarity and low cut are all set remotely from UAD Console, so nobody has to walk out to the stand.
It is a Unison preamp, which means the UAD plug-in has bidirectional control over the analog front end. Emulations of API, Neve, Manley and SSL preamps change the impedance and gain staging of the hardware rather than only processing the converted signal.
It works on any Dante audio network, not only with an Apollo. Routing is handled either through Dante Controller directly or inside UAD Console when paired with an Apollo x16D. Sample rates run 44.1 to 96 kHz, with AES67 support at 48 kHz, and Dante Device Lock is available. A coupling bracket is included for linking multiple units together.
At a Glance
| Type | Single-channel Unison mic/line preamp |
| Network | Dante |
| Input | Combination jack, XLR mic and 1/4 in. line |
| Expansion | Up to 16 units per Apollo x16D, DSP dependent |
| Remote control | Gain, 48 V phantom, polarity, low cut over UAD Console |
| Sample rates | 44.1 to 96 kHz, AES67 at 48 kHz |
| Mounting | Threaded 5/8 in. mic stand mount, coupling bracket included |
Why Put a Preamp on a Dante Network?
Because the analog cable run stops at the microphone. The preamp amplifies and converts at the source and the signal travels the rest of the way digitally, which removes the noise and loss that come with a long analog run. In an install or a large room that is the difference between a usable signal and a compromised one.
Who Is Apollo e1x For?
Installations, houses of worship, broadcast rooms and studios running an Apollo x16D that need microphone inputs distributed around a building rather than concentrated in one rack. It also works on any Dante network independently of an Apollo.
How Many Can I Run?
Up to 16 Apollo e1x units per Apollo x16D, subject to available DSP resources. A coupling bracket is included so multiple units link together securely when they sit side by side.
Do I Need an Apollo to Use It?
No. It works with any Dante audio network, with routing handled in Dante Controller. Pairing it with an Apollo x16D adds routing and remote control inside UAD Console and enables Unison.
Connections
| Input | Combination jack, XLR microphone and 1/4 in. line |
| Network | Dante |
| Phantom power | 48 V, remotely switched |
| Mount | Threaded 5/8 in. |
Why Universal Audio?
Universal Audio was founded in 1958 by M.T. "Bill" Putnam, the engineer who built the first recording console with integrated equalization and effects sends, and who designed the 1176 and the 610. The company was revived in 1999 by his sons and now does two things: it still hand-builds analog hardware in California, and it licenses and models the classics from Neve, API, Manley, SSL, Lexicon, Studer, Ampex and others rather than emulating them without authorization.
Frequently Asked Questions
Is this a genuine Universal Audio product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging with full manufacturer support, including software registration rights.
Is this covered by warranty?
Yes. This unit carries the full Universal Audio manufacturer warranty, registered to you as the original purchaser. Call 844-687-4208 for the current term.
Does it work with any Dante network?
Yes. Routing can be handled directly in Dante Controller, or inside UAD Console when paired with an Apollo x16D.
How is gain controlled?
Over the network. Gain, 48 V phantom power, polarity inversion and low cut are all set remotely from UAD Console, so nobody has to reach the unit.
What sample rates does it support?
44.1 to 96 kHz, with AES67 support at 48 kHz, set in Dante Controller. Dante Device Lock is also available.
