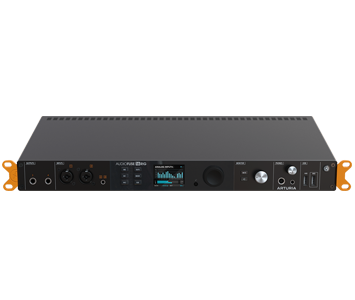

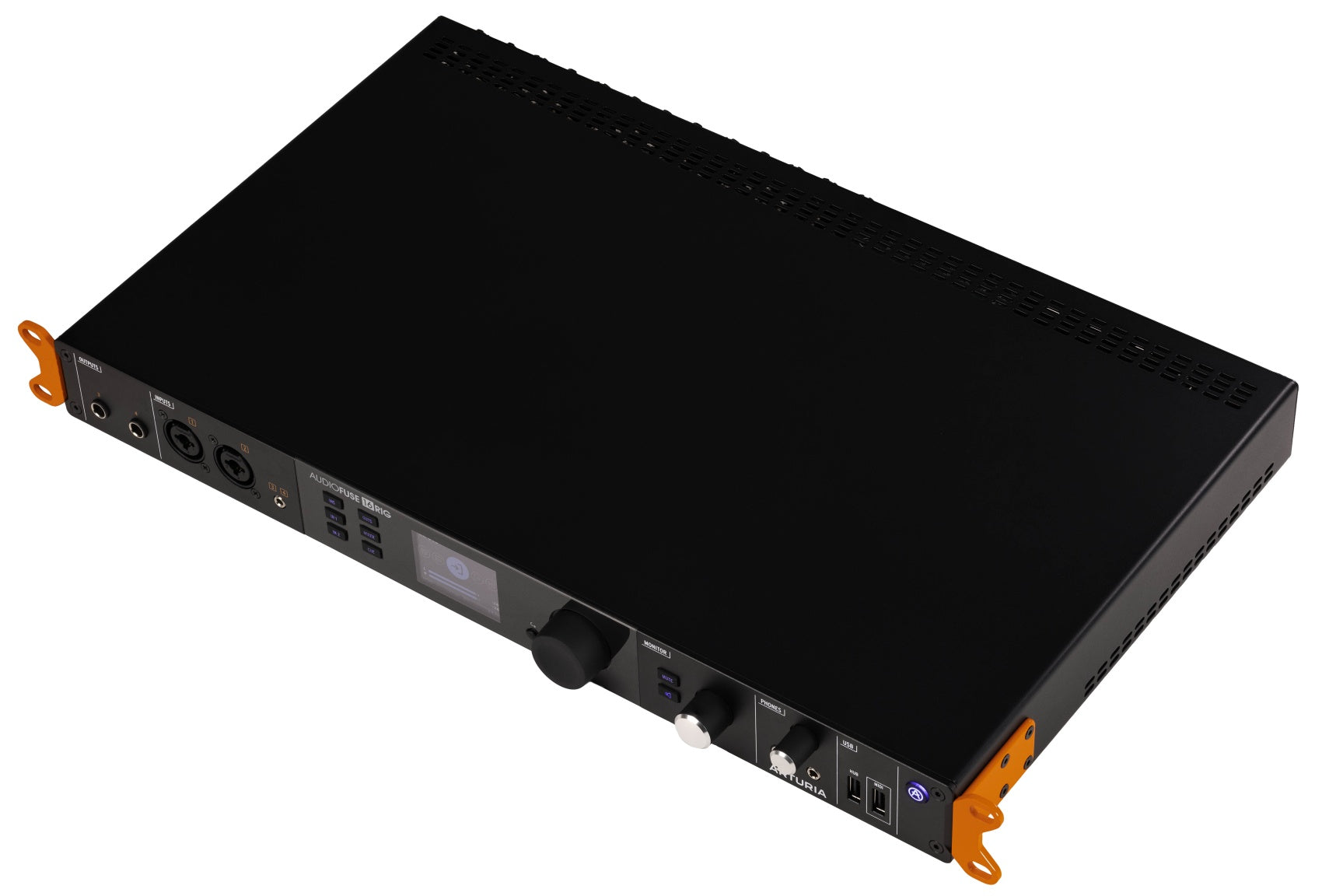

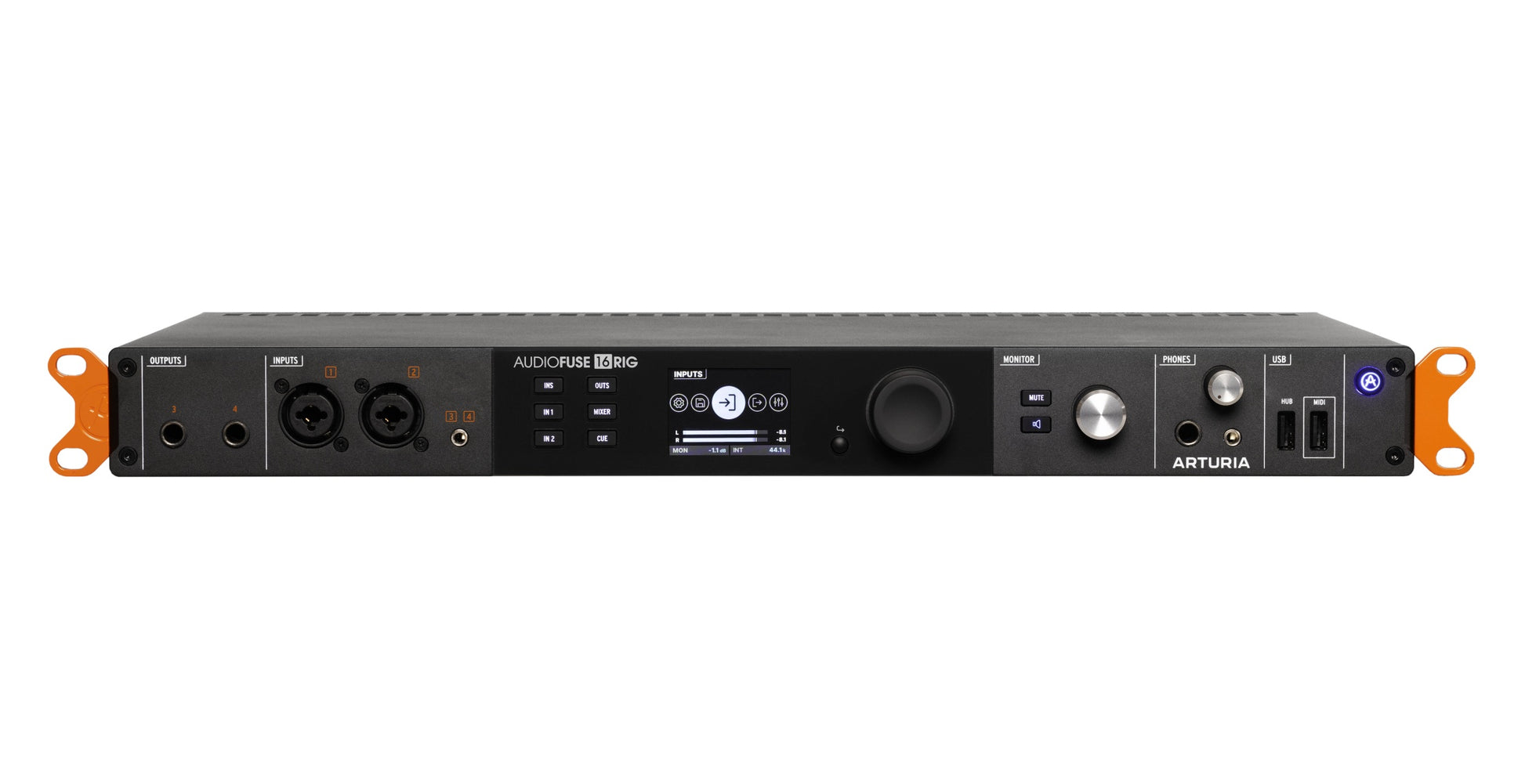

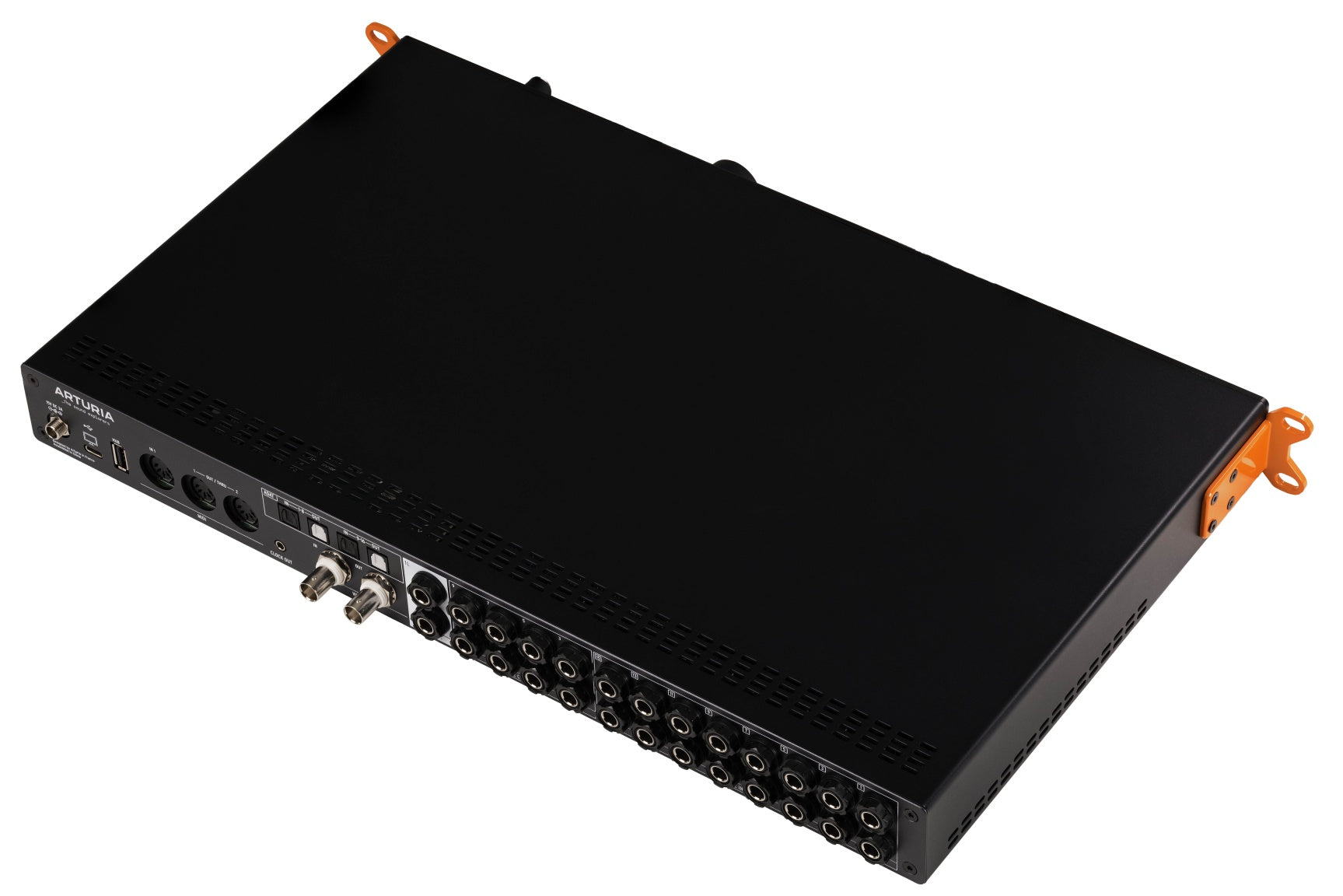

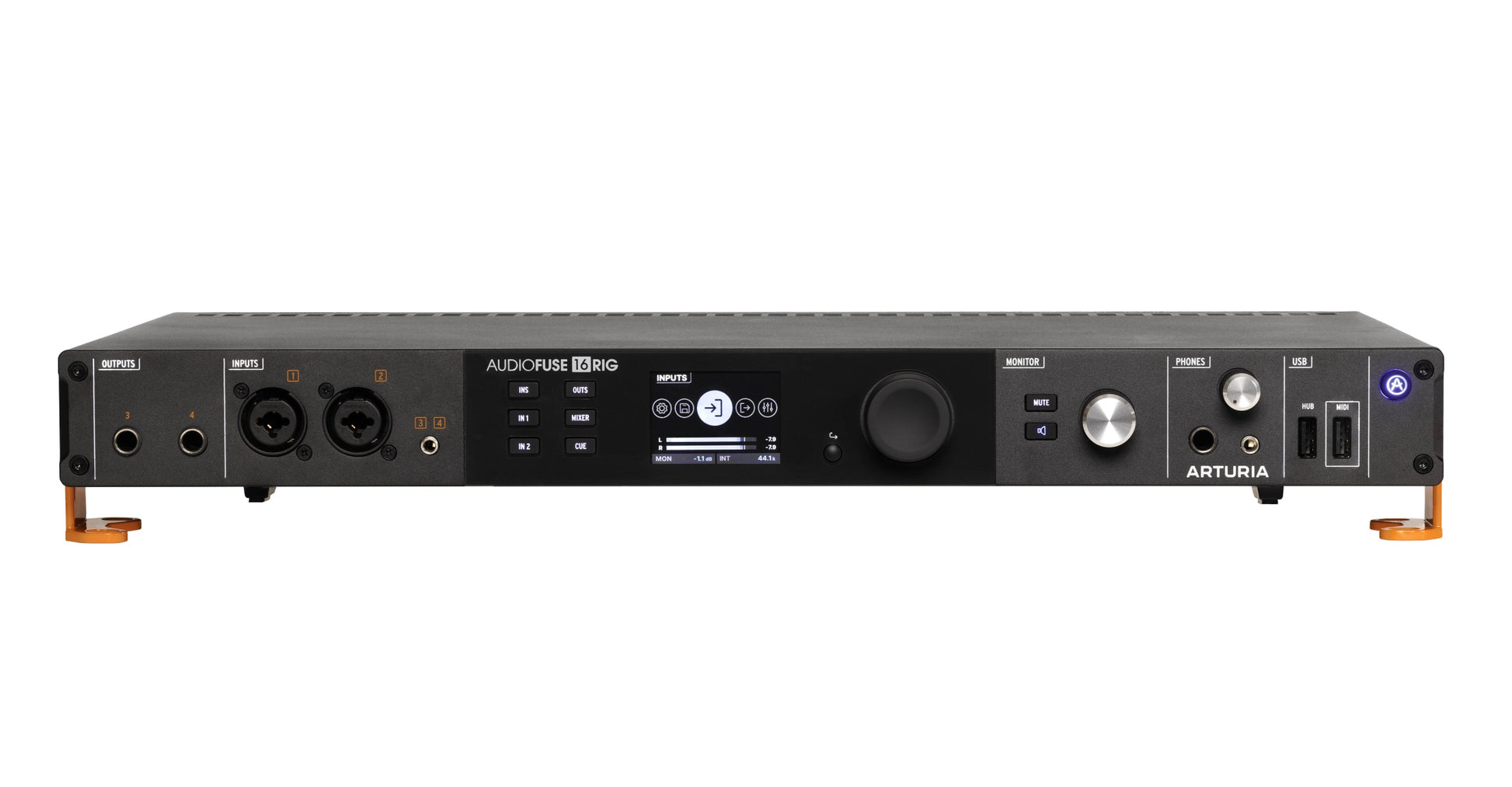

Arturia AudioFuse 16Rig is a high-density 32-input / 28-output USB-C audio interface for hardware-heavy studios, synth rooms, live rigs and complex routing systems. It provides 16 analog line inputs, two front mic, instrument and line combo preamps, eight DC-coupled line outputs, dual ADAT I/O, Word Clock, MIDI, internal low-latency mixers and desktop or 1U rack operation.
I/O and Connectivity
| Total channel capacity | 32 inputs / 28 outputs |
| Analog line inputs | 16 x 1/4-inch TRS line inputs |
| Front combo inputs | 2 x XLR mic, instrument or line inputs with digitally controlled preamps |
| Front 3.5 mm input access | Inputs 3-4 duplicated on a stereo mini-jack connection |
| Analog line outputs | 8 x DC-coupled 1/4-inch TRS outputs |
| Main monitor outputs | 1 stereo speaker output pair |
| ADAT | Dual ADAT I/O, up to 16 channels in and out at 48 kHz or 8 channels at 88.2 / 96 kHz |
| Word Clock | BNC Word Clock input and output |
| MIDI | 1 x MIDI input and 2 x MIDI output / thru connections |
| Computer connection | USB-C |
| USB / MIDI host | Integrated USB hub and class-compliant MIDI host workflow |
| Conversion | 24-bit AD/DA up to 192 kHz |
Why 16Rig Is Different
- Designed for permanent hardware connection: 16 line inputs reduce constant repatching in synth and outboard-heavy studios.
- 32 x 28 total routing capacity: supports complex recording, monitoring and send-return workflows.
- Eight DC-coupled outputs: useful for multi-output monitoring, outboard routing and compatible CV-oriented workflows.
- Two internal low-latency mixers: enables standalone and DAWless mixing configurations.
- Dual ADAT banks: expands digital I/O substantially when paired with compatible converters or preamps.
- Desktop or 1U rackmount: adapts to different studio layouts.
- Front color display: provides direct visual access to meters and settings.
Frequently Asked Questions
How many total inputs and outputs does AudioFuse 16Rig support?
Arturia specifies 32 inputs and 28 outputs.

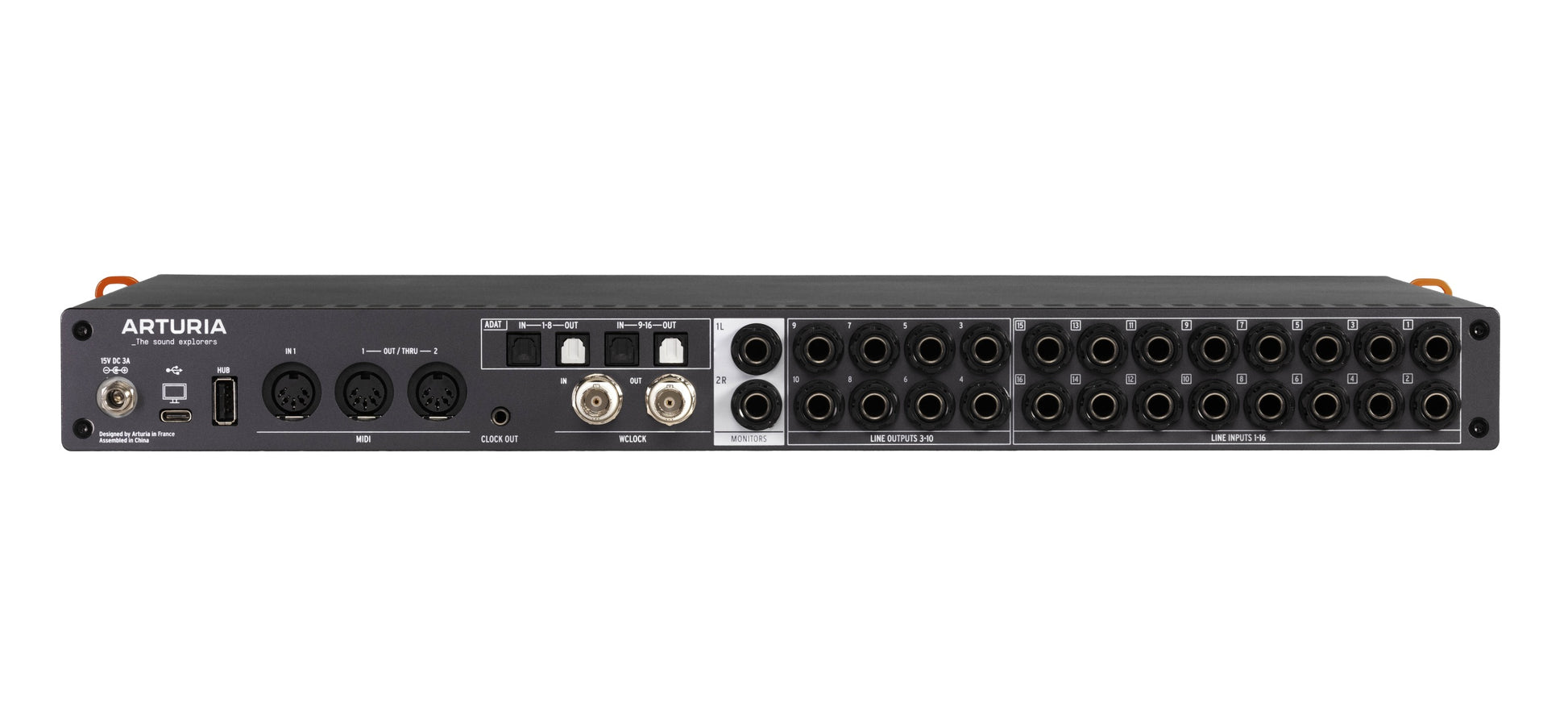

How many analog line inputs are on the rear panel?
Sixteen TRS analog line inputs.
How many microphone preamps are built in?
Two front-panel XLR combo inputs with high-quality digitally controlled preamps.
Can it add more channels over ADAT?
Yes. Dual ADAT I/O supports up to 16 channels in and out at 48 kHz, or eight channels at 88.2 / 96 kHz.
Can it work without a computer?
Yes. Arturia provides two internal low-latency mixers for standalone and DAWless configurations.
Is it rackmountable?
Yes. It can be used as a desktop unit or in a 1U rack configuration.
