The ASHLY Multi-Mode Amplifier plus Dante and OPDAC4 Option Cards is a amplifier sold brand-new by Victory Musical Instruments, a veteran-owned authorized ASHLY dealer in Miami, FL. Questions? Call 844-687-4208.
At a Glance
| Brand | ASHLY |
| Category | Amplifiers |
| Condition | New |
| Warranty | Full manufacturer warranty |
| MPN / SKU | NXE8002BD |
| Sold by | Victory Musical Instruments (veteran-owned authorized dealer, Miami) |

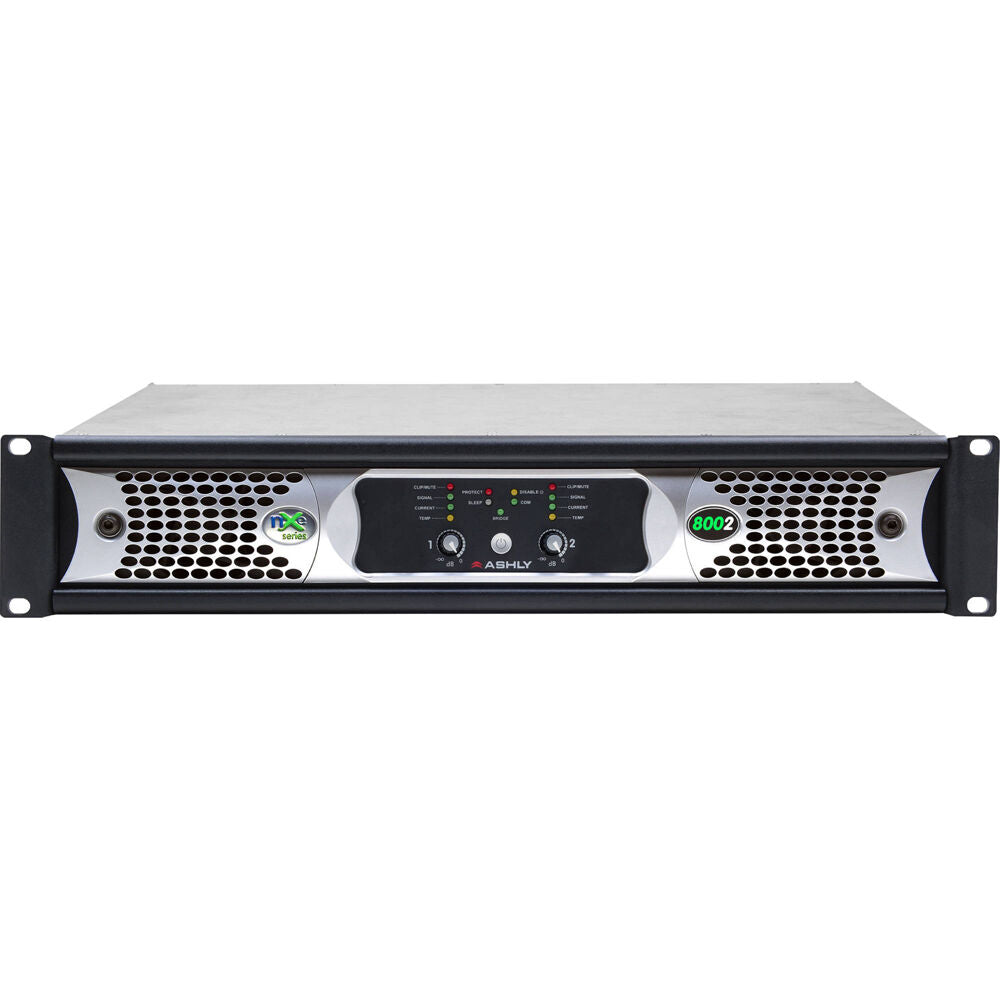

The NXE Series 2-Channel Networkable Multi-Mode Power Amplifier from Ashly comes pre-installed with OPDAC4 internal 4-Channel DAC with selectable HPF and OPDante Dante Network Audio Interface cards. The OPDante card enables access to digital audio networks at low latencies (83.3 microsecond) over fast Ethernet. It can be installed in the rear card slot of NXE series amplifiers. Signal can be routed from other Dante enabled devices by simply connecting a Cat5e or Cat6 cable to the card's primary or secondary (redundant) Ethernet ports. The amplifier is capable of driving 2 Ohms loads at full power and offers a maximum rated output power of 800W per channel at Low Z, 70V, and 100V modes. In addition, the amplifier is suitable for use in performance venues, stadiums, arenas, convention centers as well as schools, store fronts, and places of worship.
The multi-mode amplifier features an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply can auto-detect 120 or 240 VAC mains, and a Neutrik powerCON is used for the AC cord. Each channel features a selectable output mode of Low Z, 70V, or 100V, an 80 Hz high-pass filter, input limiter, and input gain settings of 26 dB, 32 dB, 38 dB, or 1.4V. Each channel comes with a remote DC level control. The amplifier comes with Neutrik XLR/TRS combo jack and Euroblock input connectors and Neutrik speakON output connectors. The unit features a front panel power switch and level controls that can be disabled. The LEDs indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. In addition, the power amplifier features an Ethernet control with a real-time clock for event scheduling. The power amplifier is equipped with serial data remote control, aux preamp outputs, preset control, and fault condition logic outputs. It also features a temperature dependent variable speed forced-air cooling. In addition, the amplifier can be mounted on a standard 19” rack.
Key Features
- Minimum Frequency Response: 20 Hz
- Maximum Frequency Response: 20 kHz
- Impedance: 8 Ohm
- Audio Channels: 2
- RMS Output Power: 1600 W
Frequently Asked Questions
Is the ASHLY Multi-Mode Amplifier plus Dante and OPDAC4 Option Cards authentic and covered by warranty?
Yes. The ASHLY Multi-Mode Amplifier plus Dante and OPDAC4 Option Cards is sold brand-new and factory-sealed by Victory Musical Instruments (VMI), an authorized ASHLY dealer (veteran-owned, based in Miami, FL), so it carries the full manufacturer warranty. Buying through an authorized dealer also protects your warranty and support eligibility.
Which exact model is the ASHLY Multi-Mode Amplifier plus Dante and OPDAC4 Option Cards, and how do I make sure I order the right one?
This listing is the ASHLY NXE8002BD. If you are comparing similar ASHLY models, match on the exact model/SKU (NXE8002BD), since closely named products can differ in features and capability. The current price is shown on this page; for a quote, lead time, or help confirming the right fit, call 844-687-4208.
What loads and power does the ASHLY Multi-Mode Amplifier plus Dante and OPDAC4 Option Cards support?
Power and impedance ratings (for example watts at 4 or 8 ohms, plus any 70V/100V or bridged modes) are listed in the title and spec table above. Match these to your speakers' impedance and power handling so the system is safe and loud enough. We can run the math with you at 844-687-4208.
Can the ASHLY Multi-Mode Amplifier plus Dante and OPDAC4 Option Cards drive a 70V/100V distributed system?
Some models include a constant-voltage (70V/100V) mode for installed/commercial systems and some do not. Confirm from the title/spec table; if you are designing a multi-zone install, call 844-687-4208 and we will confirm the right amplifier and tap settings.
How do I get help choosing or setting up the ASHLY Multi-Mode Amplifier plus Dante and OPDAC4 Option Cards?
Call our team at 844-687-4208 or reach out through victorymusical.com. As a veteran-owned authorized dealer we can confirm compatibility, lead times, and the best configuration before you buy.
