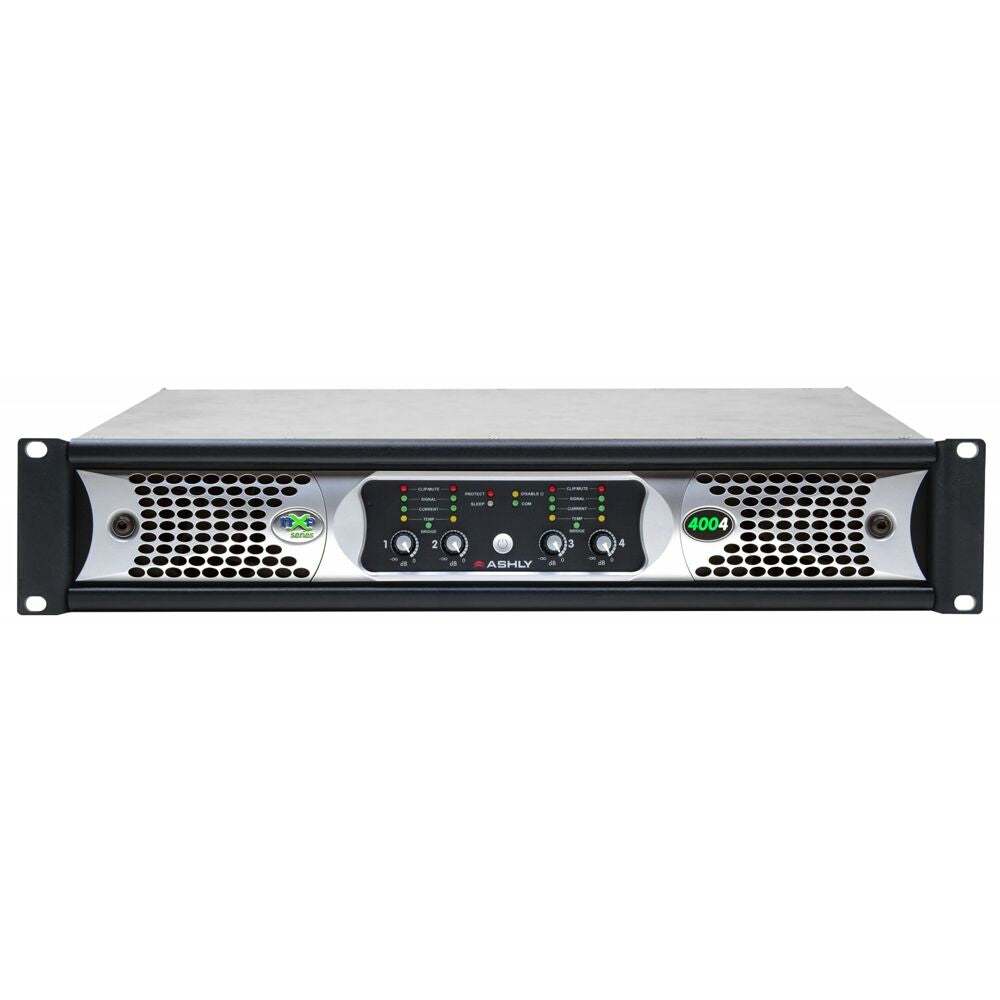

The ASHLY nXp4004 Network Amplifier is a amplifier sold brand-new by Victory Musical Instruments, a veteran-owned authorized ASHLY dealer in Miami, FL. Questions? Call 844-687-4208.
At a Glance
| Brand | ASHLY |
| Category | Amplifiers |
| Country of Origin | United States |
| Condition | New |
| Warranty | Full manufacturer warranty |
| MPN / SKU | NXP4004 |
| Sold by | Victory Musical Instruments (veteran-owned authorized dealer, Miami) |
The unit shall be a 4 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power shall be 400W per channel at Low Z, 70V, and 100V mode. There shall be an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply shall auto-detect 110 - 120VAC or 220 - 240VAC mains, and a Neutrik® powerCON shall be used for the AC cord. Each channel shall have selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel shall have remote DC level control. Input connectors shall be Neutrik® XLR/TRS combo jack and Euroblock, while output connectors shall be Neutrik® speakON. The unit shall have a front panel power switch and level controls that can be disabled. LEDs shall indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit shall have Ethernet control with a real-time clock for event scheduling. The unit shall have serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, optional network audio and AES3 digital audio capability. The unit shall have 32-bit DSP processing at 48kHz or 96kHz sampling rate. DSP functions shall include swept load impedance, gain, dynamics including autoleveler and ambient noise compensation, equalization including graphic, parametric, feedback suppressor, and FIR filters, a matrix mixer including automixing, crossover, delay, and a signal generator. The amplifier shall have temperature dependent variable speed forced-air cooling. The unit shall weigh <25.9 lbs (11.7kg), measure 19"W x 3.5"H x 16.8"D (483mm x 89mm x 428mm), and mount in a standard 19" rack. There shall be a five year warranty for units purchased in the US. No other unit shall be acceptable unless all specifications represented herein are met or exceeded and submitted in writing by an independent testing agent.
The power amplifier shall be an Ashly nXp4004.
Key Features
- Selectable 80Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
- Remote DC level control per channel
- Extensive protection circuitry, continuously variable cooling fans
- Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
- Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
Frequently Asked Questions
Is the ASHLY nXp4004 Network Amplifier authentic and covered by warranty?
Yes. The ASHLY nXp4004 Network Amplifier is sold brand-new and factory-sealed by Victory Musical Instruments (VMI), an authorized ASHLY dealer (veteran-owned, based in Miami, FL), so it carries the full manufacturer warranty. Buying through an authorized dealer also protects your warranty and support eligibility.
Which exact model is the ASHLY nXp4004 Network Amplifier, and how do I make sure I order the right one?
This listing is the ASHLY NXP4004. If you are comparing similar ASHLY models, match on the exact model/SKU (NXP4004), since closely named products can differ in features and capability. The current price is shown on this page; for a quote, lead time, or help confirming the right fit, call 844-687-4208.
What loads and power does the ASHLY nXp4004 Network Amplifier support?
Power and impedance ratings (for example watts at 4 or 8 ohms, plus any 70V/100V or bridged modes) are listed in the title and spec table above. Match these to your speakers' impedance and power handling so the system is safe and loud enough. We can run the math with you at 844-687-4208.
Can the ASHLY nXp4004 Network Amplifier drive a 70V/100V distributed system?
Some models include a constant-voltage (70V/100V) mode for installed/commercial systems and some do not. Confirm from the title/spec table; if you are designing a multi-zone install, call 844-687-4208 and we will confirm the right amplifier and tap settings.
How do I get help choosing or setting up the ASHLY nXp4004 Network Amplifier?
Call our team at 844-687-4208 or reach out through victorymusical.com. As a veteran-owned authorized dealer we can confirm compatibility, lead times, and the best configuration before you buy.
