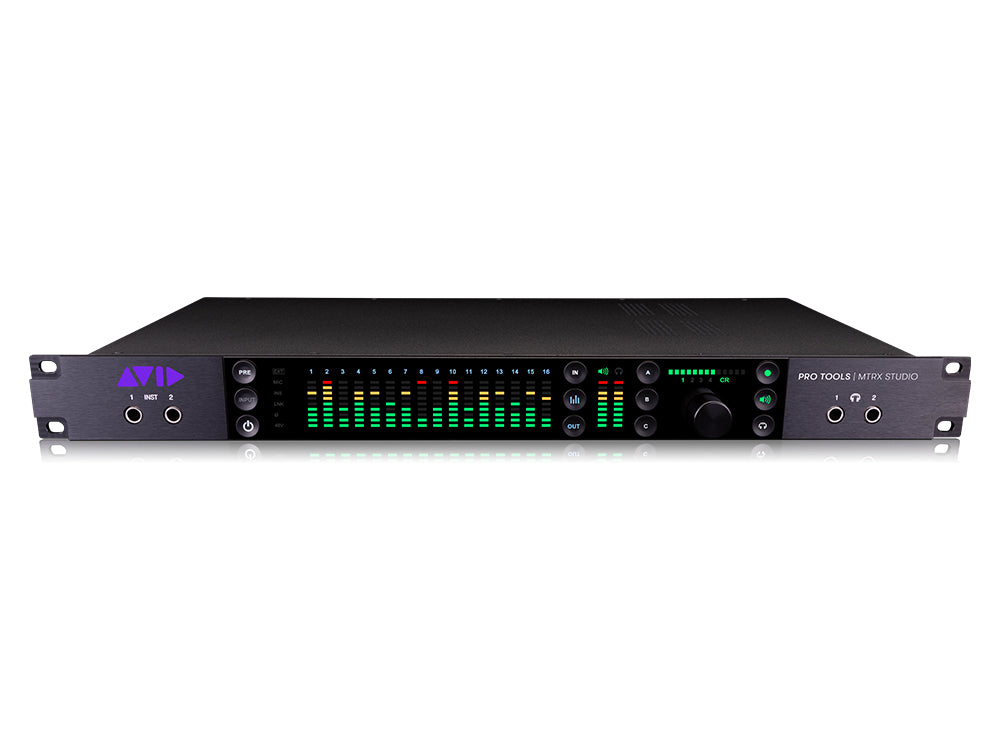

The Avid MTRX Studio is a genuine Avid all-in-one interface that combines DAD-engineered conversion, mic preamps, a 512 by 512 routing matrix, and built-in SPQ speaker calibration in a single 1U chassis for Pro Tools | HDX and HD Native systems. It is sold brand-new by Victory Musical Instruments, a veteran-owned pro audio dealer in Miami, FL, and ships factory-fresh with the full Avid manufacturer warranty. Questions? Call 844-687-4208.
Overview
MTRX Studio connects to HDX or HD Native over two DigiLink Mini ports for 64 channels, and adds 64 channels of Dante and 16 channels of ADAT alongside 16 by 16 analog line I/O. Its 512 by 512 cross-point matrix turns the unit into a full digital patchbay, letting you route any input to any output and split signals as needed, all configured in DADman software.
On the monitoring side it replaces a separate monitor controller. A 256 by 16 summing matrix supports monitor profiles and fold-downs, and built-in SPQ speaker processing tunes any room with 256 filters across 16 channels for formats from stereo up to 9.1.6 immersive and Dolby Atmos. It is EUCON enabled for the S1, S6, and the Avid Control app, and accepts an optional Thunderbolt 3 module for 64 channels of native DAW I/O.
Key Capabilities
- 64 channels to Pro Tools HDX or HD Native over two DigiLink Mini ports
- 16 by 16 analog line I/O (DB25), 2 mic/instrument inputs, 2 monitor outputs, 2 headphone outputs
- 64 by 64 Dante and 16 by 16 ADAT digital I/O
- 512 by 512 cross-point routing matrix that doubles as a digital patchbay
- 256 by 16 summing matrix with monitor profiles and fold-downs
- Built-in SPQ speaker calibration, 256 filters across 16 channels, up to 9.1.6 immersive monitoring
- EUCON control from the Avid S1, S6, and the Avid Control app
- Optional Thunderbolt 3 module adds 64 channels of native DAW I/O
- Sample rates from 44.1 to 192 kHz
At a Glance
| Type | All-in-one I/O, monitoring, and routing interface |
|---|---|
| Pro Tools I/O | 64 channels over two DigiLink Mini ports |
| Analog Line I/O | 16 x 16 (DB25) |
| Mic/Instrument inputs | 2 x 1/4-inch |
| Monitor / Headphone outputs | 2 / 2 (1/4-inch) |
| Dante I/O | 64 x 64 |
| ADAT I/O | 16 x 16 |
| Routing matrix | 512 x 512 cross-point, 256 x 16 summing |
| Speaker calibration | SPQ, 256 filters across 16 channels, up to 9.1.6 |
| Sync | Word clock and Loop Sync via BNC, Dante Sync |
| Sample rates | 44.1 to 192 kHz |
| EUCON | Yes |
| Form Factor | 1U rack-mountable |
| Brand | Avid |
| Model / MPN | 4935-00312-00 |
| UPC | 724643122638 |
| Condition | New |
| Warranty | Full Avid manufacturer warranty |
| Sold by | Victory Musical Instruments (veteran-owned, Miami, FL) |
Frequently Asked Questions
How does MTRX Studio connect to Pro Tools?
Over two DigiLink Mini ports to an HDX or HD Native system for 64 channels. An optional Thunderbolt 3 module adds 64 channels of native DAW connectivity.
Can it handle Dolby Atmos and monitor control?
Yes. It provides monitor profiles, fold-downs, and built-in SPQ speaker calibration for formats from stereo up to 9.1.6, so it can serve as your monitor controller for immersive mixing.
Does it work as a patchbay and standalone interface?
Yes. The 512 by 512 matrix lets you route any input to any output, and it offers 2 mic/instrument inputs plus 16 by 16 analog line I/O, ADAT, and Dante.
What comes in the box?
The MTRX Studio interface, Pro | Mon 3 monitoring control, DADman software, a DigiLink Mini cable, a DigiLink I/O license, and an AC power cable.
Is it genuine Avid and new?
Yes. Brand-new factory stock from Victory Musical Instruments, a veteran-owned pro audio dealer in Miami, FL, with the full Avid manufacturer warranty.
Do you ship nationwide?
Yes. MTRX Studio ships insured from our Miami location across the country.
