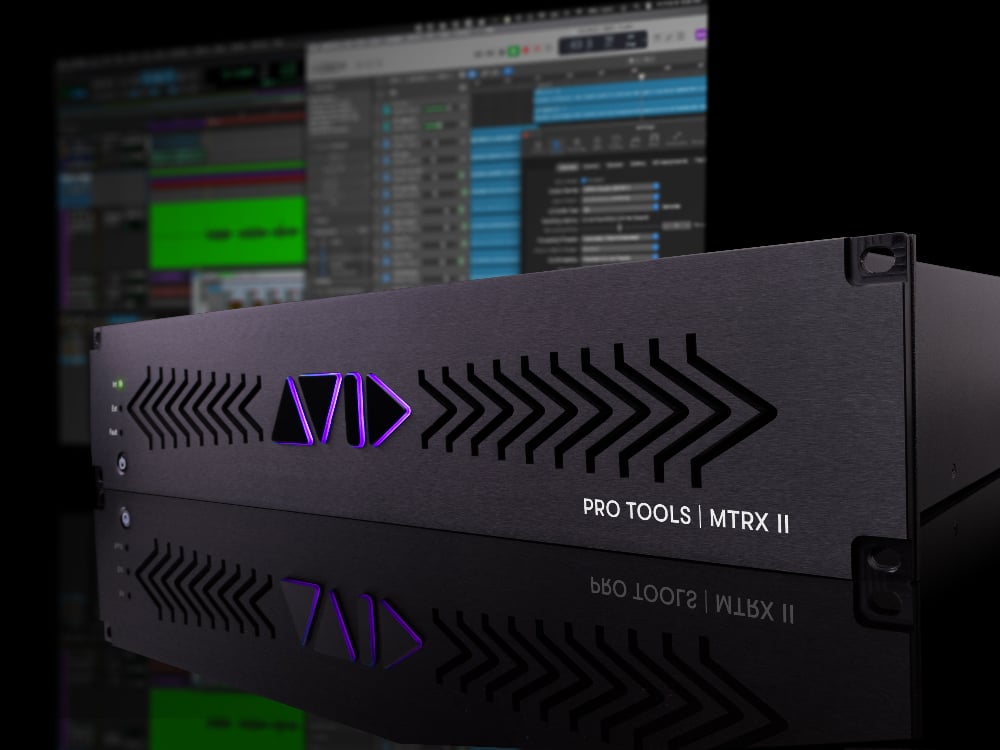

The Pro Tools | MTRX II Base Unit is a genuine Avid flagship modular audio interface, monitor controller, and router for Pro Tools | HDX and HD Native, configured here with 64 channels of DigiLink, 256 channels of Dante, and built-in SPQ speaker processing. It is sold brand-new by Victory Musical Instruments, a veteran-owned pro audio dealer in Miami, FL, and ships factory-fresh with the full Avid manufacturer warranty. Questions? Call 844-687-4208.
Overview
Built with Digital Audio Denmark, MTRX II is the centerpiece of large music and audio-post facilities. The base unit provides 64 channels of DigiLink I/O, 256 channels of Dante, 64 channels of MADI, word clock, and 128 channels of SPQ speaker processing, with a 4,096 by 4,096 routing matrix and a 512 by 64 summing mixer for everything from stereo cues to full theatrical Dolby Atmos.
It is fully modular, with eight option-card slots plus a dedicated Thunderbolt 3 slot, so you can add analog, AES3, MADI, SDI, and more Dante I/O, scaling to as many as 1,280 Dante channels. AD/DA conversion runs up to 384 kHz PCM and DSD with 128 dB of dynamic range. It includes DADman software and Pro | Mon 3 monitoring control, and is EUCON-enabled for the Avid S1, S4, and S6.
Key Capabilities
- 64 channels of DigiLink, 256 channels of Dante, and 64 channels of MADI in the base unit
- Built-in SPQ speaker processing across 128 channels for calibration up to Dolby Atmos
- 4,096 by 4,096 routing matrix and a 512 by 64 summing mixer
- AD/DA conversion up to 384 kHz PCM and DSD with 128 dB dynamic range
- Eight option-card slots plus a dedicated Thunderbolt 3 slot
- Expandable to as many as 1,280 Dante channels
- Includes DADman software and Pro | Mon 3 monitoring control
- EUCON-enabled for the Avid S1, S4, and S6 control surfaces
At a Glance
| Type | Modular audio interface, monitor controller, and router |
|---|---|
| DigiLink I/O | 64 channels |
| Dante I/O | 256 channels (expandable to 1,280) |
| MADI I/O | 64 channels |
| Routing / Summing | 4,096 x 4,096 matrix, 512 x 64 summing |
| Speaker processing | SPQ across 128 channels, up to Dolby Atmos |
| Conversion | Up to 384 kHz PCM and DSD, 128 dB dynamic range |
| Expansion | 8 option-card slots plus a Thunderbolt 3 slot |
| Control | DADman, Pro | Mon 3, EUCON (S1, S4, S6) |
| Form Factor | 2U rackmount |
| Brand | Avid |
| Model / MPN | 4935-00583-00 |
| UPC | 724643123062 |
| Condition | New |
| Warranty | Full Avid manufacturer warranty |
| Sold by | Victory Musical Instruments (veteran-owned, Miami, FL) |
Frequently Asked Questions
What is included in this configuration?
The MTRX II base unit with 64 channels of DigiLink, 256 channels of Dante, and built-in SPQ speaker processing, plus eight open option-card slots and a Thunderbolt 3 slot for further I/O.
How does it connect to Pro Tools?
Over DigiLink to a Pro Tools | HDX or HD Native system, with an optional Thunderbolt 3 module for native DAW connectivity.
Can it handle Dolby Atmos monitoring?
Yes. With its summing mixer and built-in SPQ speaker processing across 128 channels, it can calibrate and monitor formats up to full theatrical Dolby Atmos.
Is it genuine Avid and new?
Yes. Brand-new factory stock from Victory Musical Instruments, a veteran-owned pro audio dealer in Miami, FL, with the full Avid manufacturer warranty.
Do you ship nationwide?
Yes. The MTRX II base unit ships insured from our Miami location across the country.
