The BSS EC-8BV-BLK-US Ethernet Ctrlr w/ 8 Btns & Volume (Black) is a signal processor sold brand-new by Victory Musical Instruments, a veteran-owned authorized BSS dealer in Miami, FL. Questions? Call 844-687-4208.
At a Glance
| Brand | BSS |
| Category | Processors, DIs & Interfaces |
| Condition | New |
| Warranty | Full manufacturer warranty |
| MPN / SKU | EC-8BV-BLK-US |
| UPC | 691991600920 |
| Sold by | Victory Musical Instruments (veteran-owned authorized dealer, Miami) |

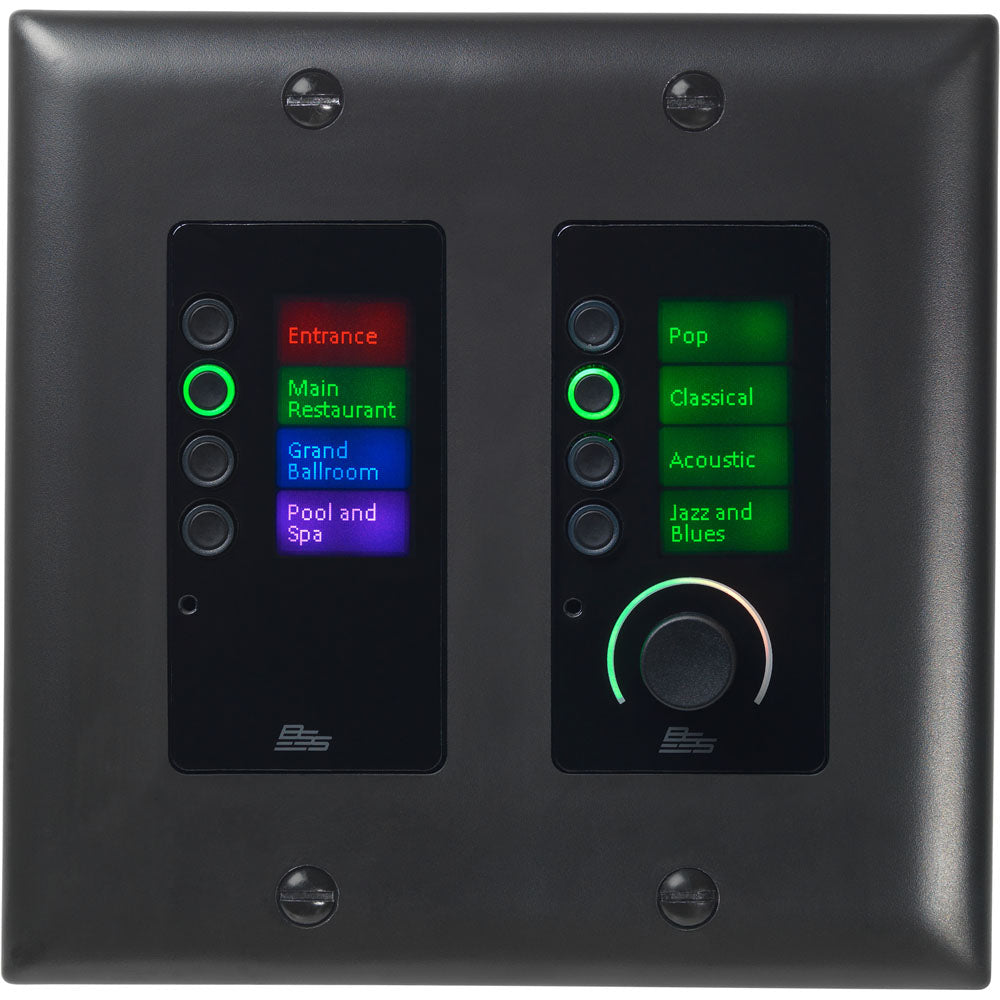

The Soundweb Contrio EC-8BV is an Ethernet wall controller for use in Harman HiQnet systems. The EC-8BV can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices, including Crown DCi series amplifiers.
The EC-8BV is available in black or white, and in dual-gang US Decora or dual-gang EU form factor. The EC-8BV contains a single Ethernet port for configuration, control, monitoring, and power via PoE. The EC-8BV is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect.
The EC-8BV contains one push/rotary encoder, one encoder ring, eight buttons, and two LCD screens. The buttons, encoder ring, and LCD screens are multi-color backlit, capable of eight different colors with adjustable intensity.
The push/rotary encoder can be rotated for continuous parameter control (e.g. volume). The push/rotary encoder can also be pressed for binary parameter control (e.g. mute) or preset recall.
The encoder ring can display a bouncing audio meter. When the push/rotary encoder is rotated, the encoder ring can temporarily display a volume setting. When the push/rotary encoder is pressed, the encoder ring can temporarily display a binary parameter setting (e.g. red/green for muted/unmuted status).
The eight buttons can be pressed for binary parameter control (e.g. mute), preset recall, or source selection.
The two LCD screens each have a screen resolution of 64x128 pixels, and can each display custom text.
The EC-8BV supports 'sleep' functionality. After a specified amount of time with no user input, the EC-8BV can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will 'wake up' the controller.
The EC-8BV can be remotely locked and unlocked via other control systems. The EC-8BV can be locally unlocked via a four-digit PIN entry on the buttons.
The EC-8BV supports multiple modes of operation. This allows the push/rotary encoder, encoder ring, and certain buttons to be reassigned dynamically to different parameters based on which buttons are selected.
Key Features
- Product Color: Black
- Form Factor: Wall Mountable
Frequently Asked Questions
Is the BSS EC-8BV-BLK-US Ethernet Ctrlr w/ 8 Btns & Volume (Black) authentic and covered by warranty?
Yes. The BSS EC-8BV-BLK-US Ethernet Ctrlr w/ 8 Btns & Volume (Black) is sold brand-new and factory-sealed by Victory Musical Instruments (VMI), an authorized BSS dealer (veteran-owned, based in Miami, FL), so it carries the full manufacturer warranty. Buying through an authorized dealer also protects your warranty and support eligibility.
Which exact model is the BSS EC-8BV-BLK-US Ethernet Ctrlr w/ 8 Btns & Volume (Black), and how do I make sure I order the right one?
This listing is the BSS EC-8BV-BLK-US. If you are comparing similar BSS models, match on the exact model/SKU (EC-8BV-BLK-US), since closely named products can differ in features and capability. The current price is shown on this page; for a quote, lead time, or help confirming the right fit, call 844-687-4208.
What is the BSS EC-8BV-BLK-US Ethernet Ctrlr w/ 8 Btns & Volume (Black) used for in a system?
This unit handles signal management in a fixed or live system (for example mixing, zoning, routing, or DSP) as described in the title and spec table above. For larger installs it is typically rack-mounted and networked. We can confirm I/O count and protocol for your design.
Is the BSS EC-8BV-BLK-US Ethernet Ctrlr w/ 8 Btns & Volume (Black) rack-mountable?
Most processors and mixers in this category are designed for standard 19-inch rack mounting; the rack size, when known, is noted in the spec table above. Tell us your rack space and we will confirm the unit fits your install.
How do I get help choosing or setting up the BSS EC-8BV-BLK-US Ethernet Ctrlr w/ 8 Btns & Volume (Black)?
Call our team at 844-687-4208 or reach out through victorymusical.com. As a veteran-owned authorized dealer we can confirm compatibility, lead times, and the best configuration before you buy.
