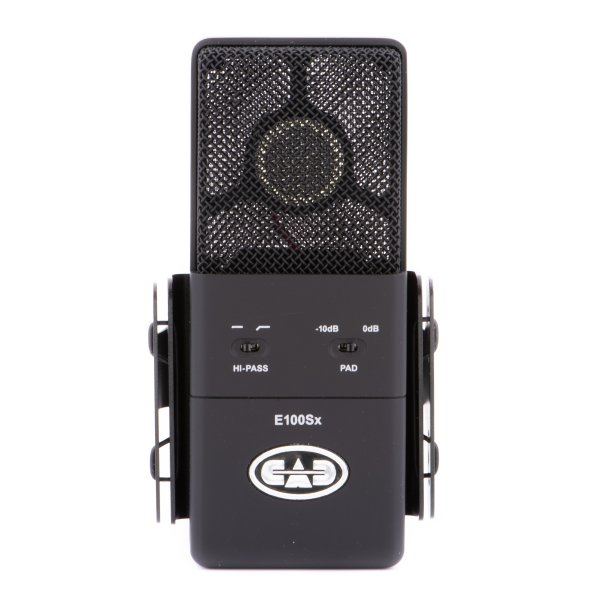

Name: CAD Audio E100Sx Large Diaphragm Supercardioid Condenser Microphone
Brand: CAD Audio
SKU: E100Sx
Price: 99.99 USD
Availability: InStock

{"id":7878125977651,"title":"CAD Audio E100Sx Large Diaphragm Supercardioid Condenser Microphone","handle":"cad-audio-e100sx","description":"\u003cp\u003eThe CAD Audio E100Sx is a large diaphragm supercardioid condenser microphone. It sits in CAD Audio's Equitek line of studio condensers, built for detailed vocal and acoustic instrument recording where clarity and low self-noise matter.\u003c\/p\u003e\u003cp\u003eIt covers 20 Hz - 18 kHz with a supercardioid pickup pattern on a condenser element, keeping the source in focus while pushing room noise and bleed to the background. Sensitivity is rated at -32dBV (25mV) @ 1 Pa, and it handles peaks up to 136 dB (with pad engaged), so loud sources will not push it into distortion. Self noise is just 9.5 dBA, quiet enough for close recording work. In the studio it earns its place on vocals, acoustic instruments, and voiceover, and it is equally at home in a project room or a broadcast chair.\u003c\/p\u003e\u003cp\u003eVictory Musical Instruments is an authorized CAD Audio dealer. Orders ship free, Miami locals can pick up same day, and our team uses and installs this gear, so if you are not sure it fits your application, ask us before you buy.\u003c\/p\u003e\u003cp class=\"vmi-benefit-bar\"\u003eFree shipping · Free local pickup in Miami · Financing at checkout\u003c\/p\u003e\u003ch2\u003eAt a Glance\u003c\/h2\u003e\u003ctable\u003e\n\u003ctr\u003e\n\u003cth\u003eModel\u003c\/th\u003e\n\u003ctd\u003eE100Sx\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eBrand\u003c\/th\u003e\n\u003ctd\u003eCAD Audio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eType\u003c\/th\u003e\n\u003ctd\u003eCondenser Microphone\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003ePolar pattern\u003c\/th\u003e\n\u003ctd\u003eSupercardioid\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eTransducer\u003c\/th\u003e\n\u003ctd\u003eCondenser\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eDiaphragm\u003c\/th\u003e\n\u003ctd\u003eLarge\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eSeries\u003c\/th\u003e\n\u003ctd\u003eEquitek\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eUPC\u003c\/th\u003e\n\u003ctd\u003e631922109351\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eFrequency response\u003c\/th\u003e\n\u003ctd\u003e20 Hz - 18 kHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eSensitivity\u003c\/th\u003e\n\u003ctd\u003e-32dBV (25mV) @ 1 Pa\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eImpedance\u003c\/th\u003e\n\u003ctd\u003e150 ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eMax SPL\u003c\/th\u003e\n\u003ctd\u003e136 dB (with pad engaged)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eSelf noise\u003c\/th\u003e\n\u003ctd\u003e9.5 dBA\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003ePower\u003c\/th\u003e\n\u003ctd\u003eP48, 1.6mA\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eWeight\u003c\/th\u003e\n\u003ctd\u003e1.98 lbs\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/table\u003e\u003ch2\u003eFrequently Asked Questions\u003c\/h2\u003e\u003ch3\u003eDoes it need phantom power?\u003c\/h3\u003e\u003cp\u003eYes. Like most studio condenser microphones, it requires 48V phantom power from your audio interface or mixer.\u003c\/p\u003e\u003ch3\u003eIs it genuine?\u003c\/h3\u003e\u003cp\u003eYes. It is authentic CAD Audio from an authorized dealer.\u003c\/p\u003e\u003ch3\u003eDoes it include a warranty?\u003c\/h3\u003e\u003cp\u003eYes. CAD Audio provides a limited warranty against defects in materials and workmanship for the original purchaser. For warranty service or registration, contact CAD Audio directly.\u003c\/p\u003e","published_at":"2026-07-07T15:08:39-04:00","created_at":"2026-07-07T15:08:38-04:00","vendor":"CAD Audio","type":"Microphones","tags":["CAD Audio","cat:condenser-microphones","cat:microphones","dropship","Equitek Mics","Microphones","Studio Recording"],"price":9999,"price_min":9999,"price_max":9999,"available":true,"price_varies":false,"compare_at_price":14900,"compare_at_price_min":14900,"compare_at_price_max":14900,"compare_at_price_varies":false,"variants":[{"id":44498808143923,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"E100Sx","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CAD Audio E100Sx Large Diaphragm Supercardioid Condenser Microphone","public_title":null,"options":["Default Title"],"price":9999,"weight":0,"compare_at_price":14900,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":"631922109351","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.victorymusical.com\/cdn\/shop\/files\/AMS-E100SX.jpg?v=1783458926"],"featured_image":"\/\/www.victorymusical.com\/cdn\/shop\/files\/AMS-E100SX.jpg?v=1783458926","options":["Title"],"media":[{"alt":"CAD Audio E100Sx Large Diaphragm Supercardioid Condenser Microphone","id":28494117404723,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.victorymusical.com\/cdn\/shop\/files\/AMS-E100SX.jpg?v=1783458926"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.victorymusical.com\/cdn\/shop\/files\/AMS-E100SX.jpg?v=1783458926","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThe CAD Audio E100Sx is a large diaphragm supercardioid condenser microphone. It sits in CAD Audio's Equitek line of studio condensers, built for detailed vocal and acoustic instrument recording where clarity and low self-noise matter.\u003c\/p\u003e\u003cp\u003eIt covers 20 Hz - 18 kHz with a supercardioid pickup pattern on a condenser element, keeping the source in focus while pushing room noise and bleed to the background. Sensitivity is rated at -32dBV (25mV) @ 1 Pa, and it handles peaks up to 136 dB (with pad engaged), so loud sources will not push it into distortion. Self noise is just 9.5 dBA, quiet enough for close recording work. In the studio it earns its place on vocals, acoustic instruments, and voiceover, and it is equally at home in a project room or a broadcast chair.\u003c\/p\u003e\u003cp\u003eVictory Musical Instruments is an authorized CAD Audio dealer. Orders ship free, Miami locals can pick up same day, and our team uses and installs this gear, so if you are not sure it fits your application, ask us before you buy.\u003c\/p\u003e\u003cp class=\"vmi-benefit-bar\"\u003eFree shipping · Free local pickup in Miami · Financing at checkout\u003c\/p\u003e\u003ch2\u003eAt a Glance\u003c\/h2\u003e\u003ctable\u003e\n\u003ctr\u003e\n\u003cth\u003eModel\u003c\/th\u003e\n\u003ctd\u003eE100Sx\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eBrand\u003c\/th\u003e\n\u003ctd\u003eCAD Audio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eType\u003c\/th\u003e\n\u003ctd\u003eCondenser Microphone\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003ePolar pattern\u003c\/th\u003e\n\u003ctd\u003eSupercardioid\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eTransducer\u003c\/th\u003e\n\u003ctd\u003eCondenser\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eDiaphragm\u003c\/th\u003e\n\u003ctd\u003eLarge\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eSeries\u003c\/th\u003e\n\u003ctd\u003eEquitek\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eUPC\u003c\/th\u003e\n\u003ctd\u003e631922109351\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eFrequency response\u003c\/th\u003e\n\u003ctd\u003e20 Hz - 18 kHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eSensitivity\u003c\/th\u003e\n\u003ctd\u003e-32dBV (25mV) @ 1 Pa\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eImpedance\u003c\/th\u003e\n\u003ctd\u003e150 ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eMax SPL\u003c\/th\u003e\n\u003ctd\u003e136 dB (with pad engaged)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eSelf noise\u003c\/th\u003e\n\u003ctd\u003e9.5 dBA\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003ePower\u003c\/th\u003e\n\u003ctd\u003eP48, 1.6mA\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eWeight\u003c\/th\u003e\n\u003ctd\u003e1.98 lbs\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/table\u003e\u003ch2\u003eFrequently Asked Questions\u003c\/h2\u003e\u003ch3\u003eDoes it need phantom power?\u003c\/h3\u003e\u003cp\u003eYes. Like most studio condenser microphones, it requires 48V phantom power from your audio interface or mixer.\u003c\/p\u003e\u003ch3\u003eIs it genuine?\u003c\/h3\u003e\u003cp\u003eYes. It is authentic CAD Audio from an authorized dealer.\u003c\/p\u003e\u003ch3\u003eDoes it include a warranty?\u003c\/h3\u003e\u003cp\u003eYes. CAD Audio provides a limited warranty against defects in materials and workmanship for the original purchaser. For warranty service or registration, contact CAD Audio directly.\u003c\/p\u003e"}

Item added to your cart

CAD Audio E100Sx Large Diaphragm Supercardioid Condenser Microphone

CAD Audio E100Sx Large Diaphragm Supercardioid Condenser Microphone

Backed by us. Trusted by you.

At a Glance

Frequently Asked Questions

Does it need phantom power?

Is it genuine?

Does it include a warranty?

Customer Reviews

Sign Up for Our Newsletter & Enjoy an Exclusive 5% Discount!

Model	E100Sx
Brand	CAD Audio
Type	Condenser Microphone
Polar pattern	Supercardioid
Transducer	Condenser
Diaphragm	Large
Series	Equitek
UPC	631922109351
Frequency response	20 Hz - 18 kHz
Sensitivity	-32dBV (25mV) @ 1 Pa
Impedance	150 ohms
Max SPL	136 dB (with pad engaged)
Self noise	9.5 dBA
Power	P48, 1.6mA
Weight	1.98 lbs
