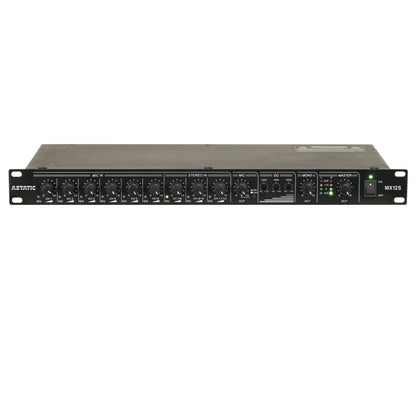

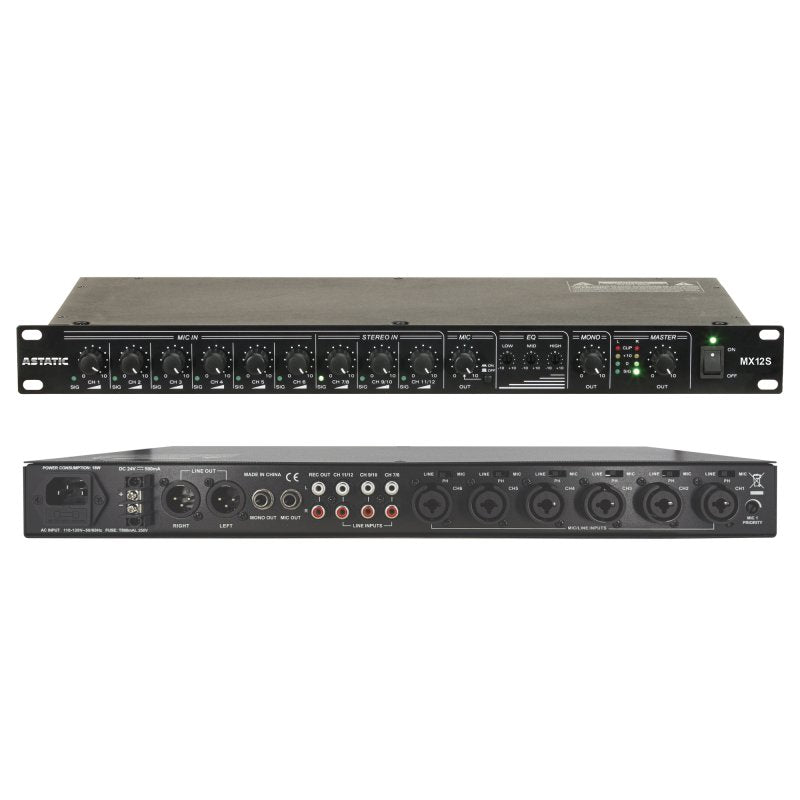

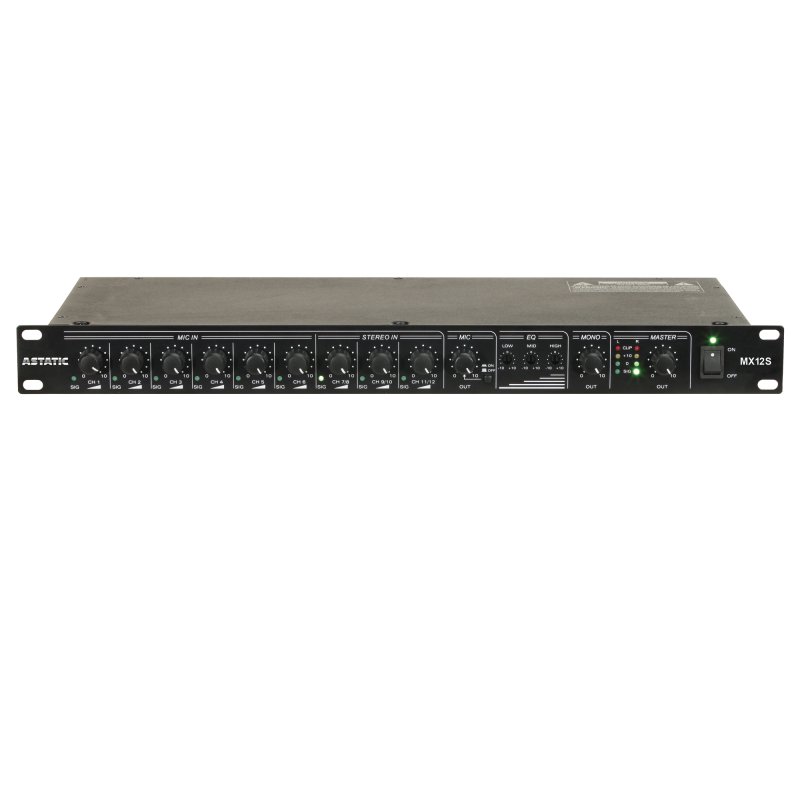

The CAD Audio MX12S is a compact 12-channel stereo mixer in a single rack space (1RU). It takes six mics or line sources on XLR/1/4" combo jacks with phantom power, plus six RCA inputs for playback devices, and gives you balanced XLR outputs for the main system. It is the same mixer sold as the Astatic MX12S.
Key Features
- 6 XLR/1/4" combo inputs with Mic, Line and Phantom power selector switches
- 6 RCA inputs, mono or 3 stereo pairs
- Mic 1 priority: ducks the other mic channels when someone talks on channel 1, for paging and announcements
- 3-band master EQ (high, mid, low) with cut and boost
- Separate level controls for channels 1 to 6, stereo channels 7/8 through 11/12, and the Mic, Mono and Master outputs
- Mic monitor 1/4" output for private listening to all mic inputs

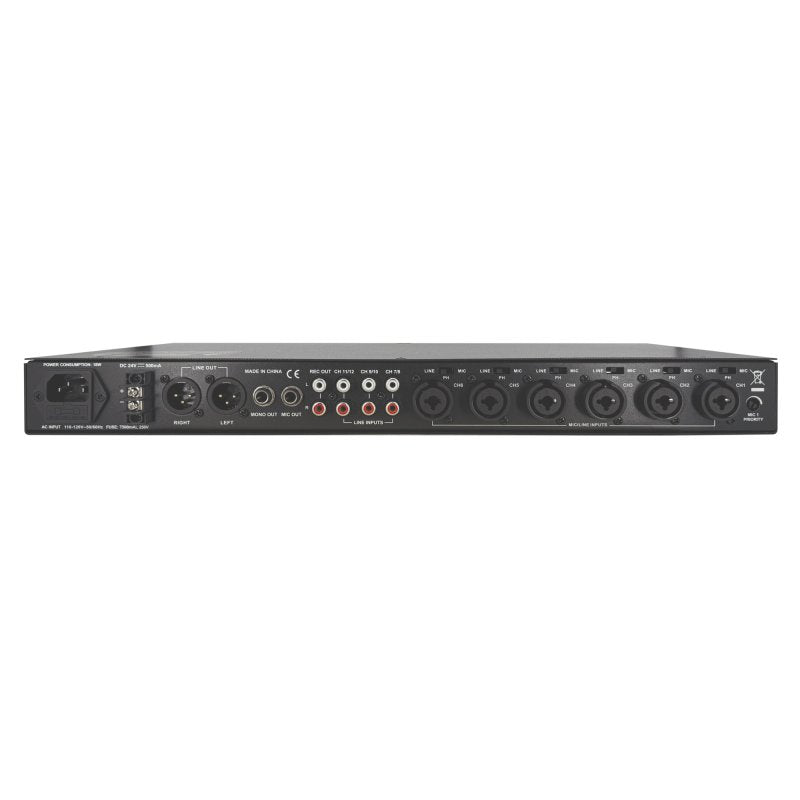

- Balanced XLR line outputs and a mono 1/4" line output
- Runs on AC or 24V DC power
- 1RU rack mountable
Specifications
| Channels | 12 (6 mic/line + 6 RCA) |
| Mic/Line Inputs | 6 XLR/1/4" combo |
| Line Inputs | 6 RCA (mono or 3 stereo pairs) |
| Phantom Power | 18V to 21V |
| Outputs | Balanced XLR line, mono 1/4" line, 1/4" mic monitor |
| EQ | 3-band master |
| Power | AC or 24V DC |
| Size | 1RU rack mount |
Who Is the MX12S For?
Churches, schools, restaurants, bars, karaoke rooms and conference spaces that need several mics plus background music in one rack space, with priority paging on channel 1.
