The dbx 6x4 Zone Processor w/blank front (4 mic/line) DBX641MV is a signal processor sold brand-new by Victory Musical Instruments, a veteran-owned authorized dbx dealer in Miami, FL. Questions? Call 844-687-4208.

At a Glance

The ZonePRO 641m offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus.

The 641m features a total of six inputs and four outputs. Inputs include four balanced mic/line switchable terminal block inputs and two mono-summed pairs of unbalanced RCA inputs. Hardware-controlled microphone gain allows adjustment of microphone gain per channel.

The 641m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth®, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone.

A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required.

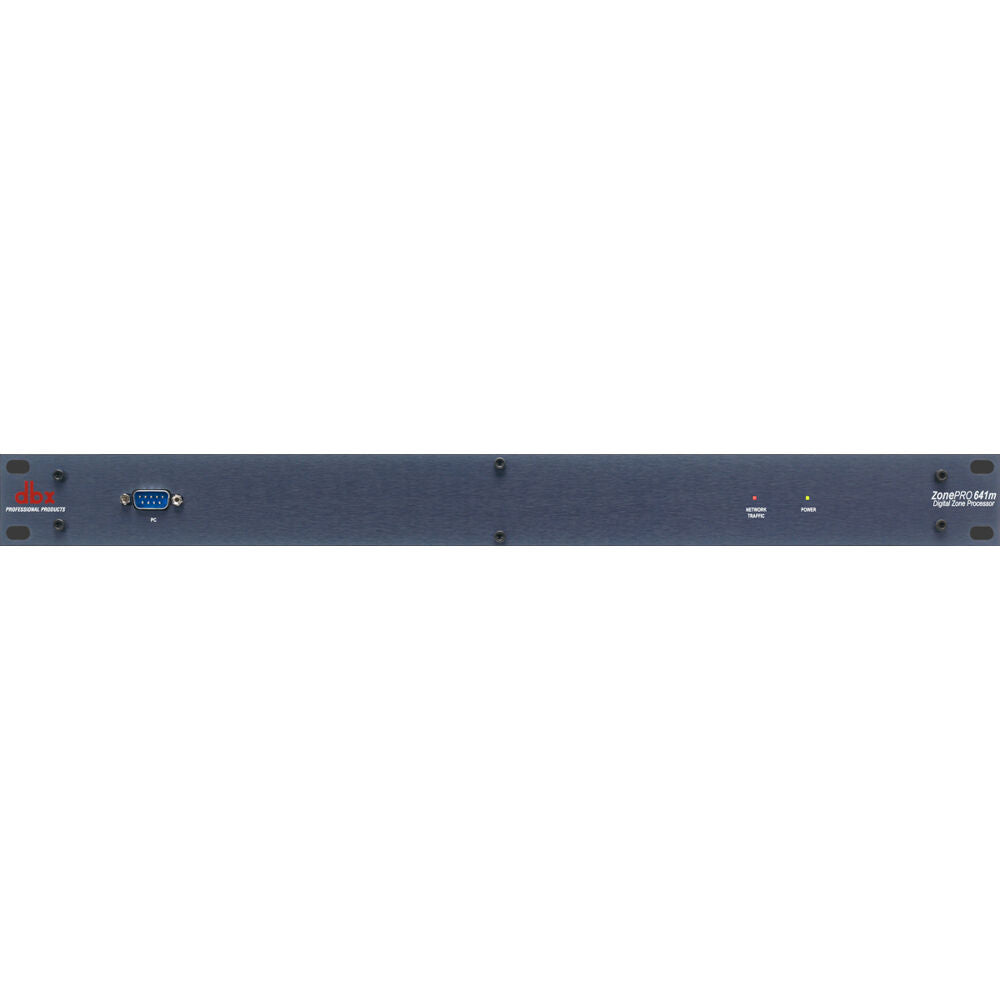

The front panel of the 641m features a power status LED, a network traffic LED, and an RS-232 control port.

Additional system control is offered in the form of optional Zone Controllers. This collection of hardware wall-controllers represents a series of simple, elegant user interfaces for functions such as volume, source and preset control.

All ZonePRO devices can be controlled by third party control systems via RS-232 or Ethernet as applicable (see table for further information). ZonePRO Designer-the configuration, control and monitoring software for the ZonePRO family of devices-offers control of the ZonePRO 641m via Ethernet or RS-232. The Configuration Wizard within ZonePRO Designer guides users through the step-by-step configuration process of the 641m.

Key Features

• Form Factor: Wall Mountable
• Height: 1.8"
• Width: 19"
• Depth: 7.8"
• Weight (Approximate): 6.05 lb

Frequently Asked Questions

Is the dbx 6x4 Zone Processor w/blank front (4 mic/line) DBX641MV authentic and covered by warranty?

Yes. The dbx 6x4 Zone Processor w/blank front (4 mic/line) DBX641MV is sold brand-new and factory-sealed by Victory Musical Instruments (VMI), an authorized dbx dealer (veteran-owned, based in Miami, FL), so it carries the full manufacturer warranty. Buying through an authorized dealer also protects your warranty and support eligibility.

Which exact model is the dbx 6x4 Zone Processor w/blank front (4 mic/line) DBX641MV, and how do I make sure I order the right one?

This listing is the dbx ZONEPRO 641M. If you are comparing similar dbx models, match on the exact model/SKU (ZONEPRO 641M), since closely named products can differ in features and capability. The current price is shown on this page; for a quote, lead time, or help confirming the right fit, call 844-687-4208.

What is the dbx 6x4 Zone Processor w/blank front (4 mic/line) DBX641MV used for in a system?

This unit handles signal management in a fixed or live system (for example mixing, zoning, routing, or DSP) as described in the title and spec table above. For larger installs it is typically rack-mounted and networked. We can confirm I/O count and protocol for your design.

Is the dbx 6x4 Zone Processor w/blank front (4 mic/line) DBX641MV rack-mountable?

Most processors and mixers in this category are designed for standard 19-inch rack mounting; the rack size, when known, is noted in the spec table above. Tell us your rack space and we will confirm the unit fits your install.

How do I get help choosing or setting up the dbx 6x4 Zone Processor w/blank front (4 mic/line) DBX641MV?

Call our team at 844-687-4208 or reach out through victorymusical.com. As a veteran-owned authorized dealer we can confirm compatibility, lead times, and the best configuration before you buy.
