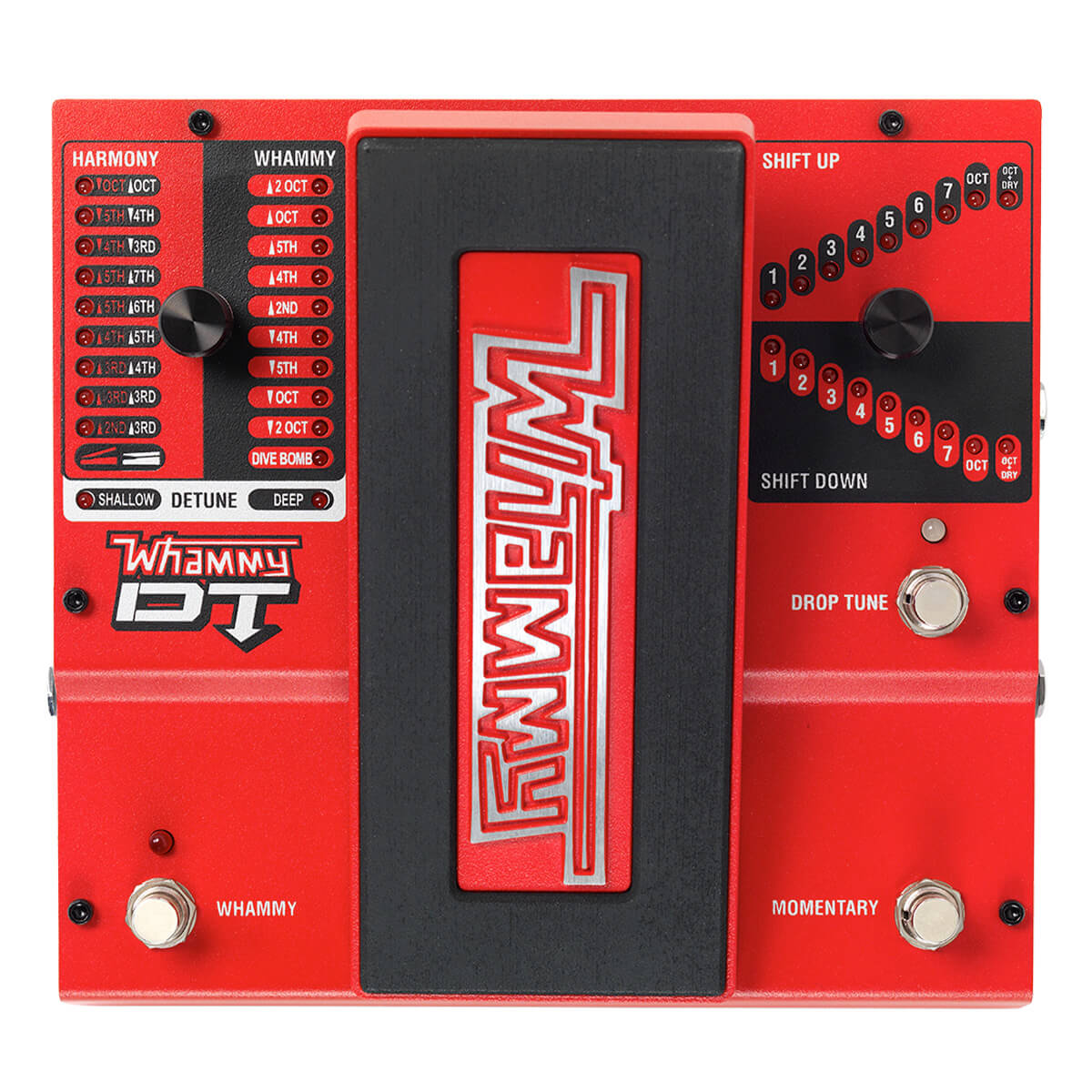

DigiTech Whammy DT is a treadle pitch-shift pedal that adds full drop and raised tuning to the classic Whammy effect. Tuning changes happen instantly under a foot rather than at the tuning pegs, and they run independently of the Whammy and Harmony settings, so a bend can sit on top of a dropped tuning. Conversion is 24-bit at 44.1 kHz with true bypass and MIDI input.
Change tuning between songs without changing guitars.
The DT stands for drop tuning, and it is what separates this pedal from the standard Whammy. A set can move from standard to Eb to drop D to any other tuning inside the pedal's range without a guitar change and without the dead air of retuning on stage. For a player covering material written across several tunings, that is the difference between one guitar and three.
The tuning section runs in parallel with the pitch-shifting section. Whammy, Harmony and Detune all behave the way they do on the standard pedal, driven by the treadle, and the drop or raise sits underneath as a separate offset. That means a dive bomb in drop C works exactly as it does in standard.
MIDI input allows a switching system to recall both the tuning and the effect state per song, and true bypass keeps the pedal out of the signal path entirely when nothing is engaged.
At a Glance
| Type | Treadle pitch-shift pedal with drop and raised tuning |
| Tuning | Full drop and raised tuning, independent of Whammy settings |
| Effects | Whammy, Harmony and Detune |
| Control | Built-in expression treadle |
| MIDI | 5-pin DIN input |
| Conversion | 24-bit |
| Bypass | True bypass |
| Power | 9 V DC external adapter |
How Is Whammy DT Different From the Standard Whammy?
The audio path and the Whammy, Harmony and Detune effects are the same family. What Whammy DT adds is a separate drop and raised tuning section that offsets the whole instrument, running independently of the treadle effects. The standard Whammy has drop tune available over MIDI but not as a full front-panel tuning section.
Who Is Whammy DT For?
Working guitarists covering material across several tunings in one set, players who would otherwise carry a second and third guitar to a gig, and anyone who already uses a Whammy and wants tuning control on the same board.
Can I Bend While in a Dropped Tuning?
Yes. The tuning offset and the treadle effects are separate stages. Set the drop, then use the Whammy, Harmony or Detune settings on top of it exactly as on the standard pedal.
What Power Does It Need?
A 9 V DC external adapter. Draw is 2.4 W, under 265 mA, so the output has to be a high-current one rather than a shared low-current tap on a pedalboard supply.

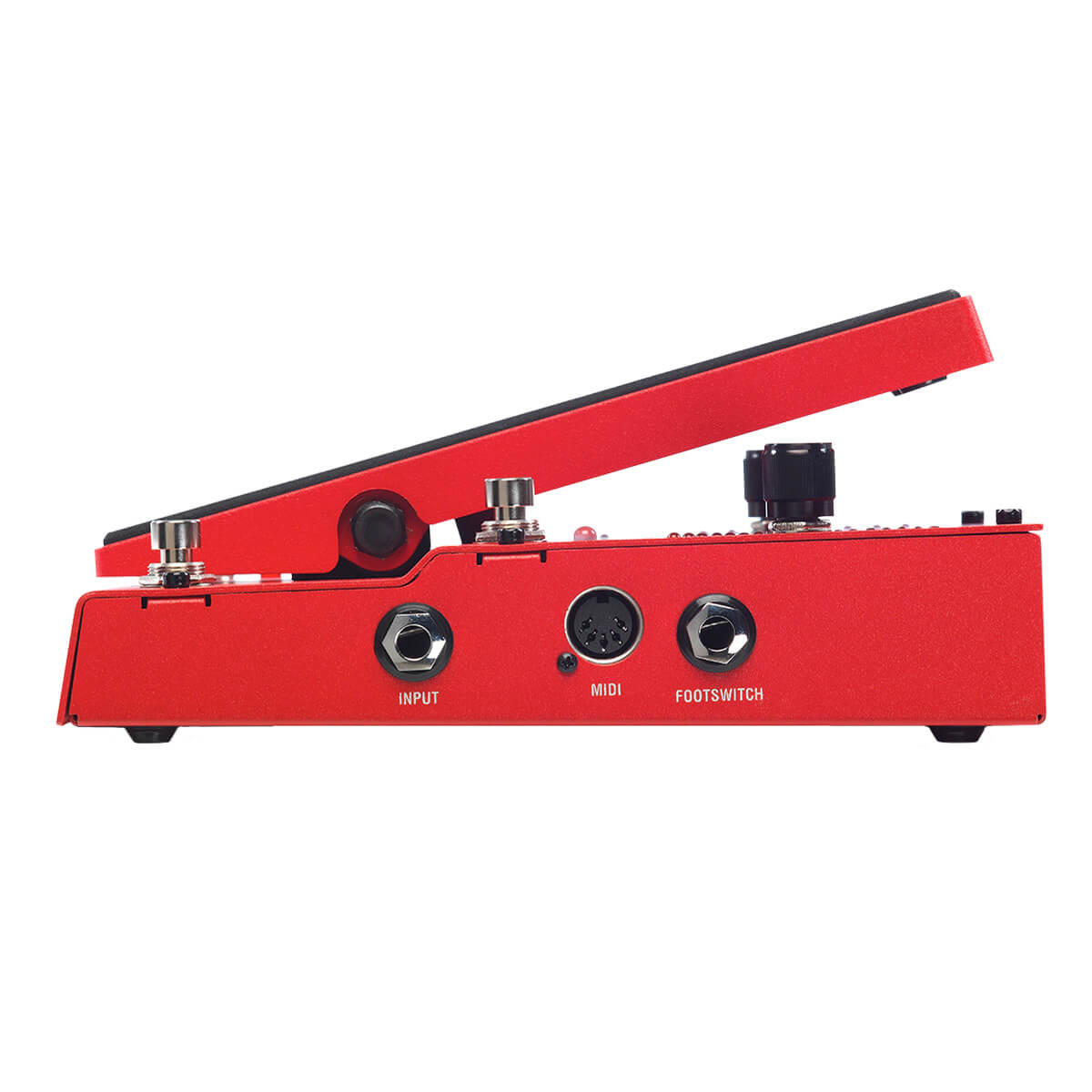

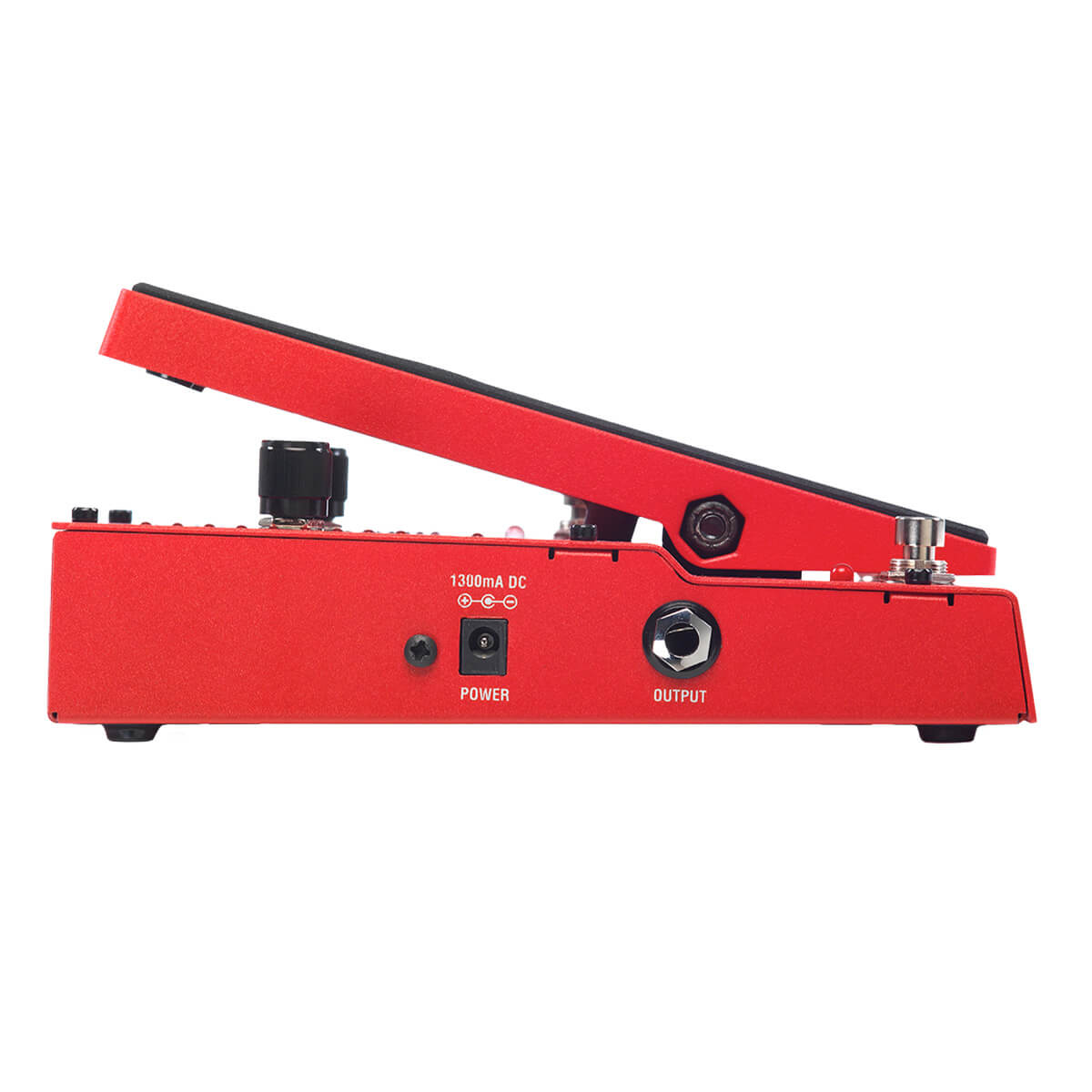

Connections
| Instrument input | 1/4 in. unbalanced TS, 1 MOhm, +5 dBu maximum |
| Output | 1/4 in. unbalanced TS, 1 kOhm, +10 dBu maximum |
| MIDI | 5-pin DIN input |
| Power | 9 V DC external adapter |
Specifications
| Sample rate | 44.1 kHz |
| Frequency response | 20 Hz to 20 kHz |
| Signal to noise | Better than -105 dB A-weighted |
| THD | 0.004% at 1 kHz |
| A/D conversion | 24-bit |
| D/A conversion | 24-bit |
| Dimensions | 7.75 x 6.5 x 2.5 in., 197 x 165 x 64 mm |
| Power consumption | 2.4 W, under 265 mA at 9 V DC |
Why DigiTech?
DigiTech has built guitar effects since 1984 and invented the mass-market digital pitch shifter with the original Whammy in 1989. After a period under Harman ownership the brand was acquired by Cor-Tek in 2022 and has returned to active development, with the MonoNeon Whammy and HammerOn both arriving in 2025. Pitch shifting remains what the company is known for.
Frequently Asked Questions
Is this a genuine DigiTech product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging with full manufacturer support.
Is this covered by warranty?
Yes. This unit carries the full DigiTech manufacturer warranty, registered to you as the original purchaser. Call 844-687-4208 for the current term.
How far can it drop or raise the tuning?
Whammy DT provides full drop and raised tuning. For the exact interval range on current firmware, call 844-687-4208 and we will confirm against DigiTech's manual.
Does it track chords?
Yes. Whammy DT is the pedal whose polyphonic algorithm was later carried into the fifth generation Whammy as Chords mode.
Can a MIDI switcher recall settings?
Yes. The 5-pin DIN input accepts program and CC messages, so a switching system can recall the tuning and effect state per song.
