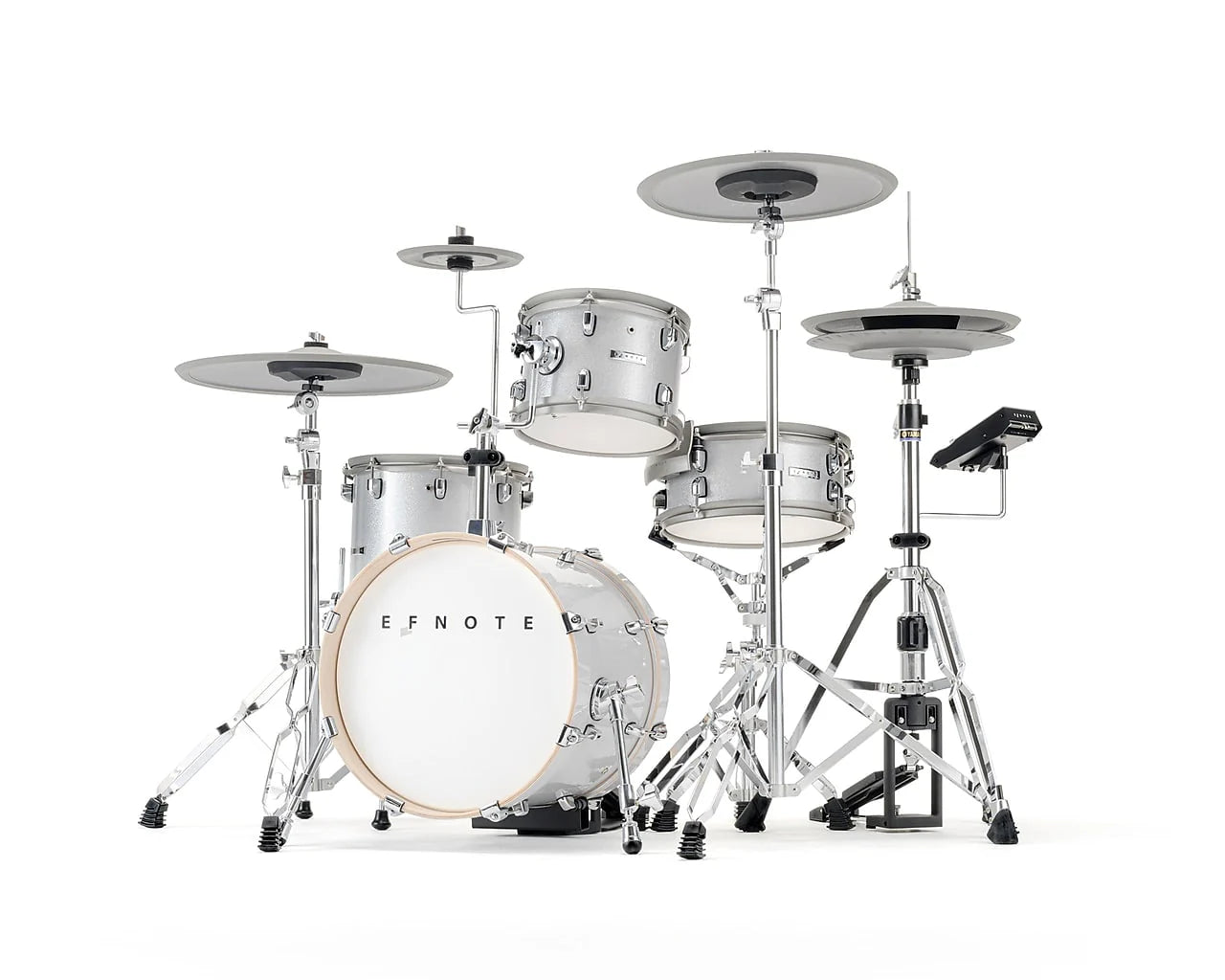

EFNOTE 5 Acoustic-Design Electronic Drum Kit, White Sparkle is an acoustic-inspired electronic drum system built for realistic physical response, quiet practice, multitrack recording, and performance-ready presentation.
Real birch shells, a 16-inch kick, 14-inch optical hi-hat, 18-inch ride, and multichannel recording place this compact kit between practice convenience and acoustic-stage presence.
Overview
The EFNOTE 5 pairs full stereo drum and cymbal sounds with multi-sensor pads, editable kits, per-pad processing, and direct recording connectivity. Its real or acoustic-style shell layout is designed to feel familiar to an acoustic drummer rather than like a compact pad controller.
At a Glance
| Configuration | Kick: 16 × 12-inch EFD-K1612 birch-shell mesh kick; Snare: 12 × 5-inch EFD-S1250 birch shell, head/rim/side-rim; Toms: 10 × 7-inch rack tom and 12 × 12-inch floor tom; Hi-hat: 14-inch two-piece EFD-H14 with multi-optical Tru-Motion sensing; Crash: 16-inch EFD-C16, bow/edge/cup; Ride: 18-inch EFD-C18, bow/edge/cup; Splash: 8-inch EFD-C08, bow/edge |
|---|---|
| Finish | White Sparkle |
| Sound module | EFD-5 |
| USB recording | 8 outputs / 2 inputs plus USB MIDI |
| Wireless | Bluetooth audio and Bluetooth MIDI |
| Footprint | Approximately 4.6 × 3.0 feet, excluding throne |
What Is the EFNOTE 5?
It is a White Sparkle electronic drum kit that combines model-specific shell and cymbal sizes with 360-degree cymbal play/choke sensing, mesh drum heads, and the EFD-5 module.
Who Is the EFNOTE 5 For?
It is a strong match for drummers who want real wood shells and acoustic proportions in a compact electronic kit for home studios, worship, rehearsal, and smaller stages.
Playing Response and Acoustic Feel
Multi-sensor drum pads reduce hot spots and support head, rim, and side-rim articulation where specified. EFNOTE cymbals use broad 360-degree sensing and choke response, while the two-piece hi-hat uses optical motion sensing for open, closed, and transitional control.
Recording, MIDI, and Play-Along Connectivity
The module functions as an eight-output USB audio interface with two-channel return audio, making individual drum-channel recording possible without a separate multichannel interface. USB MIDI, Bluetooth MIDI, Bluetooth audio, analog line outputs, headphones, and an analog audio input support practice, production, and live playback workflows.
Kit Components
| Kick | 16 × 12-inch EFD-K1612 birch-shell mesh kick |
|---|---|
| Snare | 12 × 5-inch EFD-S1250 birch shell, head/rim/side-rim |
| Toms | 10 × 7-inch rack tom and 12 × 12-inch floor tom |
| Hi-hat | 14-inch two-piece EFD-H14 with multi-optical Tru-Motion sensing |
| Crash | 16-inch EFD-C16, bow/edge/cup |
| Ride | 18-inch EFD-C18, bow/edge/cup |
| Splash | 8-inch EFD-C08, bow/edge |
Included
- EFD-5 sound module
- 10-inch rack tom mount
- Splash cymbal arm
- Sound-module arm and smartphone tray
- Breakout and trigger cables
- Quickstart guide
Not Included
- Kick pedal
- Hi-hat stand
- Drum throne
- Snare stand
- Cymbal stands
Key Features
- Real birch drum shells with double-layer mesh heads
- Seven-sensor 12-inch snare with independent side-rim zone
- 16-inch kick with wood hoop and riser
- 14-inch optical hi-hat and full-size 18-inch ride
- USB 8-output recording interface
- Bluetooth audio, Bluetooth MIDI, and 5-pin MIDI output
Technical Specifications
| Sound module | EFD-5 |
|---|---|
| Preset drum kits | 17, editable |
| User drum kits | 83 |
| User instrument library | 128 customized instrument slots |
| USB audio | 8-channel output at 48 kHz / 24-bit; 2-channel input at 48 kHz / 16-bit |
| USB MIDI | Input and output |
| USB connector | Micro-B USB 2.0 |
| Analog outputs | Two 1/4-inch TS line outputs plus stereo headphone output |
| Analog input | Stereo mini-phone audio input |
| Wireless | Bluetooth audio input and Bluetooth MIDI input/output |
| Hardware MIDI | 5-pin DIN MIDI output |
| Editing | Per-pad level, pan, tuning, muffling, 2-band EQ, and eight ambience types |
| Trigger zones | 3-zone snare, crash, and ride; 2-zone toms, hi-hat, and splash; 1-zone kick |
| Module dimensions / weight | 106 × 172 × 47 mm / 700 g |
| Placement | Approximately 140 × 90 cm / 4.6 × 3.0 feet |
Important Configuration Note
The module does not support the hi-hat cup zone. Stand requirements should be planned before installation.
Why EFNOTE?
EFNOTE focuses on acoustic-style dimensions, natural drum and cymbal sounds, broad trigger sensing, restrained module design, and practical studio connectivity. The result is an electronic kit that looks appropriate in a room or on a stage while remaining useful for quiet practice and direct multitrack recording.
Frequently Asked Questions
What is the EFNOTE 5?
The EFNOTE 5 is an acoustic-design electronic drum kit with multi-sensor mesh drums, 360-degree cymbal sensing, a touch-interface sound module, and multichannel USB audio.
Who is the EFNOTE 5 designed for?
It is designed for drummers who want real wood shells and acoustic proportions in a compact electronic kit for home studios, worship, rehearsal, and smaller stages.
Can it record separate drum channels over USB?
Yes. The module sends eight USB audio outputs at 48 kHz / 24-bit and accepts two USB audio inputs at 48 kHz / 16-bit for Mac or Windows recording.
Does the kit include a kick pedal, hi-hat stand, and throne?
No. Kick pedal, Hi-hat stand, Drum throne, Snare stand, Cymbal stands are not included. Review the Included and Not Included section before planning the complete setup.
What should I know about trigger-zone compatibility?
The module does not support the hi-hat cup zone. Stand requirements should be planned before installation.
Contact Victory Musical Instruments to confirm current distributor availability, expected fulfillment time, and any additional hardware needed for your setup.
