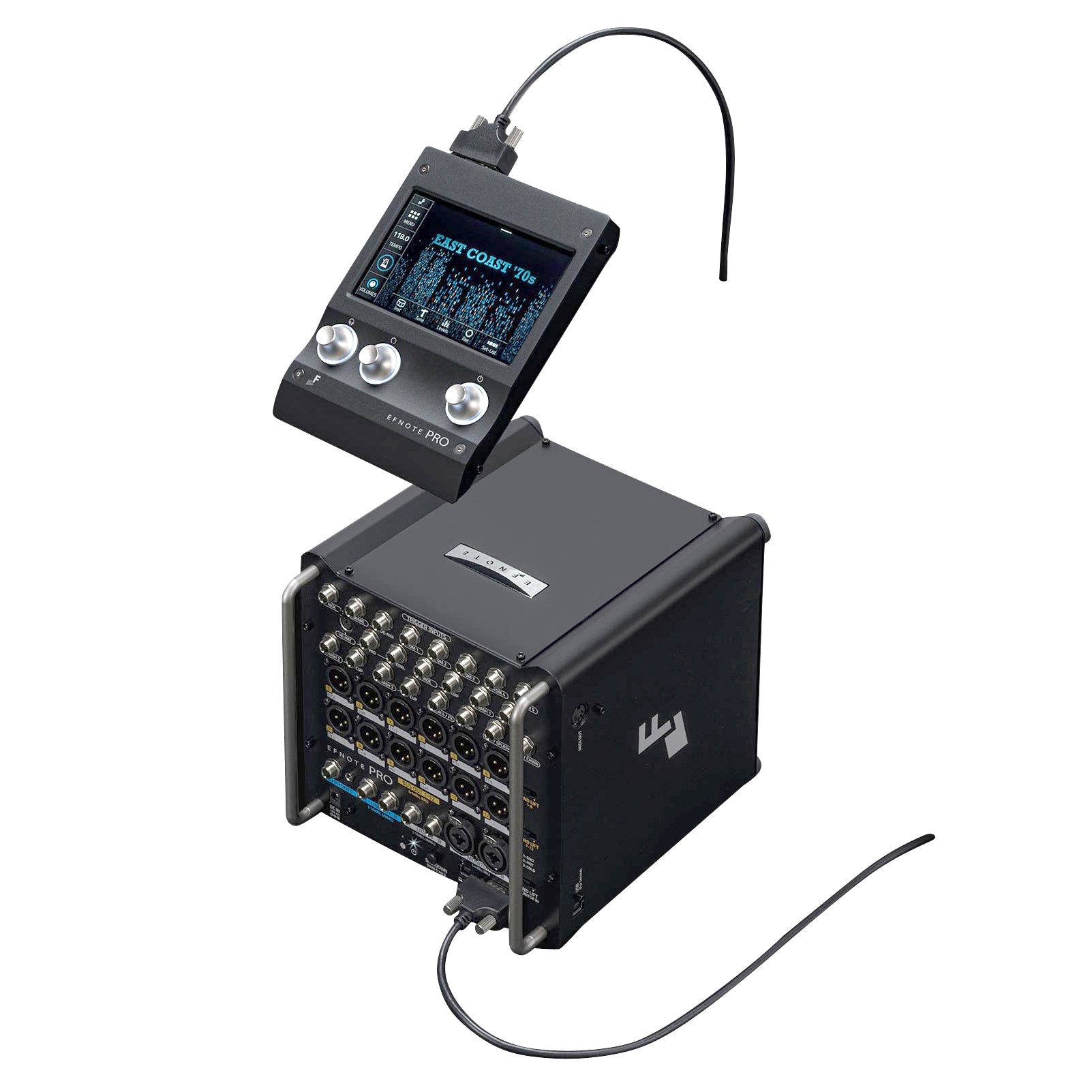

EFNOTE PRO EFD-PRO Sound Module and Stage Box separates the drummer-facing touchscreen from a rugged connection base, giving performers, monitor engineers, and front-of-house teams direct access to a professional electronic-drum routing system.
A professional electronic-drum brain built around separate player controls and a stage-box base with 12 balanced XLR bus outputs, multichannel USB audio, deep routing, and remote-control workflows.
Overview
The EFD-PRO combines EFNOTE acoustic-drum sounds and ELISE 2.0 trigger processing with 12 balanced XLR outputs, 16 internal audio buses, multichannel USB audio, show-oriented set lists, remote control, and user sound expansion. It is designed to replace a complex microphone-and-submix workflow with repeatable console-ready outputs.
At a Glance
| Product type | Professional electronic drum sound module and stage box |
|---|---|
| Direct outputs | 12 balanced XLR bus outputs |
| USB recording | 12 outputs / 2 inputs plus USB MIDI |
| Trigger capacity | 15 pad inputs supporting up to 7 shells and 8 cymbals |
| Kit storage | 23 editable preset kits and 100 user kits |
| Show workflow | 15 set lists with 20 slots each |
What Is the EFNOTE PRO EFD-PRO?
It is EFNOTE's professional sound module and stage-box system for building a new EFNOTE PRO kit or upgrading a compatible EFNOTE 3, 3X, 5, 5X, 7, or 7X setup.
Who Is the EFD-PRO For?
It is a strong match for touring drummers, houses of worship, stage productions, producers, studios, and existing EFNOTE 3/3X/5/5X/7/7X owners upgrading to a professional routing platform.
Stage Outputs and Monitor Workflow
Twelve balanced XLR bus outputs can be assigned as stereo or mono sends for drums, cymbals, click, external pads, or other sources. Bus 1-12 include high-pass filtering and EQ, buses 1-6 add individual compression, and ground-lift switches help address stage-system hum without changing the drummer's monitor mix.
Recording, MIDI, and Remote Control
The USB interface sends 12 audio channels at 48 kHz / 24-bit and receives two channels at 48 kHz / 16-bit, with USB MIDI operating at the same time. Bluetooth audio, Bluetooth MIDI, the EFNOTE Tools mobile app, and EFNOTE Desktop Tools support rehearsal, remote adjustment, user-tone transfer, and instrument-library management.
System Components
| Control surface | Touchscreen player interface with three illuminated control knobs |
|---|---|
| Base unit | Trigger, audio, USB, MIDI, power, and 12-channel XLR stage-box connections |
Included
- Control surface and base unit
- 2-meter EFD-DSUB9-2 link cable
- 12 V AC adapter
- Ten 3-meter trigger cables
- 3-meter hi-hat cable
- Module mount and smartphone tray
- Tuning key, cable ties, cable labels, and Quickstart Guide
Not Included
- Drum and cymbal pads
- Drum hardware
- Headphones
- USB flash drive
- Computer or mobile device
Key Features
- Separate touchscreen control surface and rugged stage-box base
- Twelve balanced XLR bus outputs with attenuation and ground-lift control
- Sixteen internal audio buses and twelve-channel USB audio output
- Twenty-three editable preset kits and 100 user-kit locations
- Fifteen 20-slot set lists for show organization
- User Tone and Instrument Expansion support with firmware 2.0 or later
- Bluetooth audio, Bluetooth MIDI, mobile remote control, and desktop tools
Technical Specifications
| Sound module | EFD-PRO with separate control surface and stage-box base unit |
|---|---|
| User interface | Full-color capacitive touchscreen, two multifunction knobs, and one value knob |
| Trigger capacity | Seven 3-zone inputs, seven 2-zone inputs, and one 1-zone kick input |
| Trigger processing | ELISE 2.0 sensing chip |
| Balanced bus outputs | 12 XLR male outputs, +4 dBu balanced, with attenuation and ground-lift switching |
| USB audio | 12-channel output at 48 kHz / 24-bit; 2-channel input at 48 kHz / 16-bit |
| USB MIDI | Input and output over USB 2.0 High-Speed Type-B |
| Analog line output | Two 1/4-inch TS outputs |
| Headphone outputs | One 1/4-inch stereo and one 1/8-inch stereo output |
| Monitor input | Two XLR/TRS combo inputs, balanced, with ground lift |
| Line input | Two 1/4-inch TS inputs |
| Wireless | Bluetooth audio input and Bluetooth MIDI input/output |
| Hardware MIDI | 5-pin DIN MIDI output |
| Drum kits | 23 editable presets and 100 user kits |
| Set lists | 15 set lists with 20 slots each |
| Recorder | 15 tracks at 480 TPQN |
| Audio buses | 16 channels; 12 buses plus Bus Mix L/R and Main L/R |
| Bus processing | HPF and EQ on buses 1-12; compressors on buses 1-6 |
| Control surface | 128 × 172 × 30 mm; 700 g, excluding protrusions |
| Base unit | 206 × 210 × 238 mm; 3,250 g, excluding protrusions |
| Power | 12 V DC / 1.5 A AC adapter |
Compatibility Note
EFNOTE 3/3X/5/5X/7/7X users can upgrade to EFD-PRO, and the original module can feed the EFD-PRO Line In as a secondary module. Pad count and zone support must remain within the listed trigger-input capacity.
Why EFNOTE PRO?
EFNOTE PRO is designed to digitize the drum riser with consistent acoustic-drum sounds, direct isolated outputs, flexible monitoring, and repeatable show files. Its stage-box architecture serves both the drummer and the production team without requiring microphone placement, acoustic isolation, or a separate analog drum submix.
Frequently Asked Questions
What is the EFNOTE PRO EFD-PRO?
The EFD-PRO is a professional electronic-drum sound module with a separate touchscreen control surface and stage-box base unit, 12 balanced XLR bus outputs, multichannel USB audio, and extensive show-routing tools.
How many direct outputs does the EFD-PRO provide?
It provides 12 balanced XLR bus outputs. Each output supports attenuation, and the stage box provides ground-lift switching in two six-channel groups.
Can the EFD-PRO record multichannel audio over USB?
Yes. It sends 12 USB audio channels at 48 kHz / 24-bit and receives two channels at 48 kHz / 16-bit, while USB MIDI can run at the same time.
Can existing EFNOTE owners upgrade to the EFD-PRO?
Yes. EFNOTE identifies it as an upgrade path for EFNOTE 3, 3X, 5, 5X, 7, and 7X owners. The original module can also feed the EFD-PRO Line In as a secondary module.
What is included with the EFD-PRO module?
It includes Control surface and base unit, 2-meter EFD-DSUB9-2 link cable, 12 V AC adapter, Ten 3-meter trigger cables, 3-meter hi-hat cable, Module mount and smartphone tray, Tuning key, cable ties, cable labels, and Quickstart Guide. Drum pads, cymbals, stands, headphones, and computing devices are not included.
Contact Victory Musical Instruments to confirm current distributor availability and plan the pad, hardware, monitoring, and console connections for your system.
