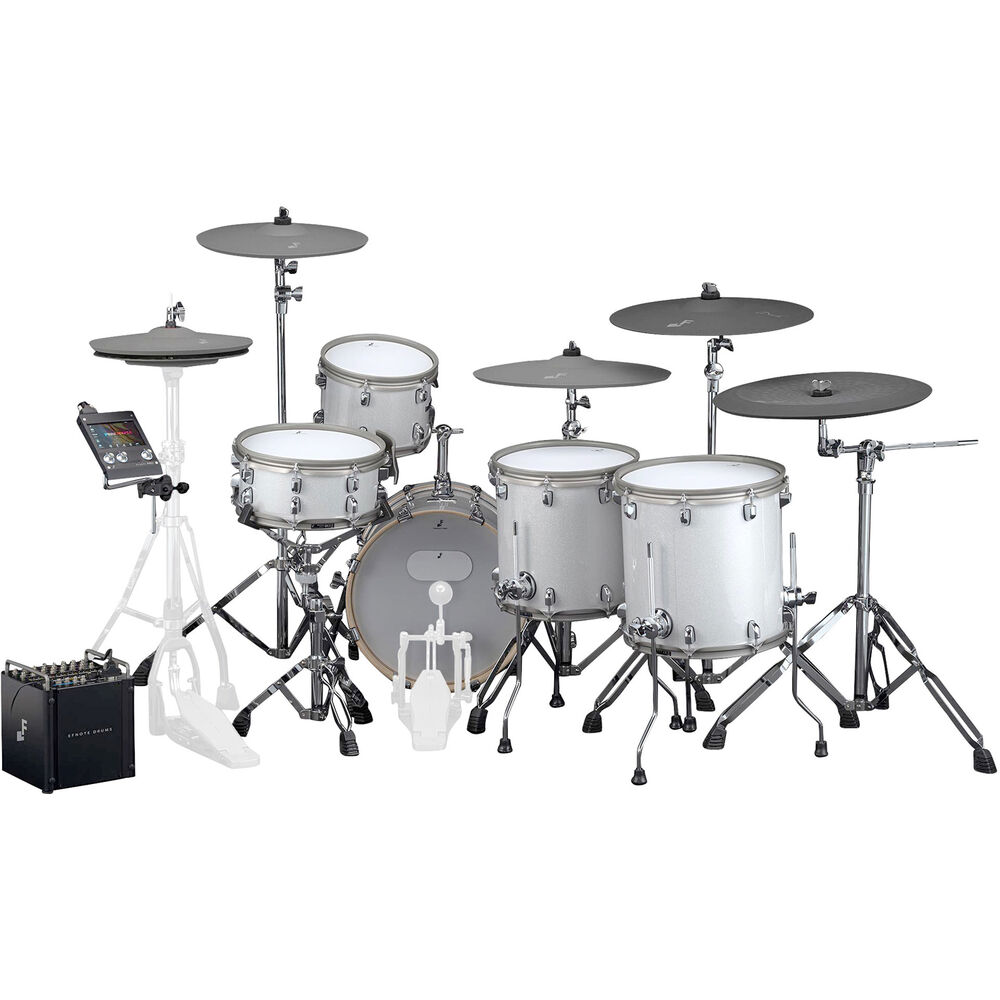

EFNOTE PRO 503 Power Electronic Drum Kit is a professional acoustic-design electronic drum system for stage, studio, worship, production, and streaming workflows where playability and isolated console routing matter equally.
A 5-shell, 5-cymbal professional electronic drum system with the EFD-PRO module and stage box, 12 balanced XLR bus outputs, and flexible multichannel routing.
Overview
The EFNOTE PRO 503 combines full-size or compact acoustic-style mesh shells, broad cymbal sensing, the EFD-PRO touchscreen module, and a separate stage-box base. It gives the drummer a natural playing surface while providing engineers with repeatable balanced outputs, USB multitracking, remote control, and deep bus processing.
At a Glance
| Configuration | 5 shells and 5 cymbals |
|---|---|
| Finish | White Sparkle |
| Sound module | EFD-PRO with separate control surface and stage box |
| Stage outputs | 12 balanced XLR bus outputs |
| USB recording | 12 outputs / 2 inputs plus USB MIDI |
| Footprint | Compact 16-inch-kick configuration; final footprint depends on hardware placement |
What Is the EFNOTE PRO 503?
It is a White Sparkle professional electronic drum kit with 5 shells, 5 cymbals, an EFD-PRO module, 12 balanced XLR bus outputs, and simultaneous multichannel USB audio and MIDI.
Who Is the EFNOTE PRO 503 For?
It is a strong match for small stages, churches, cafés, event work, home studios, and players who want a compact 16-inch-kick footprint.
Playing Response and Acoustic Presentation
Multi-sensor mesh shells support the head, rim, and side-rim articulations listed for each component. EFNOTE cymbals provide broad 360-degree playing and choke response, while the two-piece optical hi-hat tracks open, closed, and transitional movement. Acoustic-style shell dimensions give both the player and audience a familiar visual scale.
Stage Outputs, Monitoring, and Recording
The EFD-PRO stage box supplies 12 balanced XLR bus outputs for direct connection to a stage snake or console. Sixteen internal buses, per-bus filtering and EQ, compression on buses 1-6, separate monitor inputs, 12-channel USB audio output, two-channel USB return, and USB MIDI support touring, worship, studio, and broadcast routing without a separate multichannel drum interface.
Kit Components
| Sound module | EFD-PRO |
|---|---|
| Kick | 16 × 12-inch EFD-K1612-WS |
| Snare | 12 × 5-inch EFD-S1250-WS |
| Rack tom | 10 × 7-inch EFD-T1070-WS |
| Floor tom | 12 × 12-inch EFD-T1212-WS |
| Hi-hat | 14-inch EFD-H14 |
| Crash | 16-inch EFD-C16 |
| Ride | 18-inch EFD-C18 |
| Additional floor tom | 13 × 13-inch EFD-T1313-WS |
| Dark crash | 18-inch EFD-C18-D |
| China | 18-inch EFD-C18CH |
| Expansion hardware | Two cymbal stands |
Included
- All EFNOTE PRO drums, cymbals, EFD-PRO module, trigger cables, and expansion hardware listed under Kit Components
- EFD-PRO link cable, AC adapter, module mount, smartphone tray, tuning key, cable ties, cable labels, and Quickstart Guide
- EFD5-BOX3 support hardware is normally packaged with the complete set unless sold separately; confirm the current distributor configuration
Not Included
- Kick pedal
- Hi-hat stand
- Drum throne
- Drumsticks
- Headphones
- Smartphone or computer
Key Features
- 5-shell and 5-cymbal configuration
- 16-inch acoustic-design mesh kick
- Multi-sensor mesh shells with model-specific head, rim, and side-rim articulation
- 360-degree cymbal sensing and Tru-Motion two-piece optical hi-hat response
- Twelve balanced XLR bus outputs for direct stage-snake or console connection
- Twelve-channel USB audio output plus two-channel USB return and USB MIDI
- Per-bus routing, filtering, EQ, and compression on buses 1-6
- Bluetooth audio, Bluetooth MIDI, mobile remote control, and desktop sound-management support
Technical Specifications
| Sound module | EFD-PRO with separate control surface and stage-box base unit |
|---|---|
| User interface | Full-color capacitive touchscreen, two multifunction knobs, and one value knob |
| Trigger capacity | Seven 3-zone inputs, seven 2-zone inputs, and one 1-zone kick input |
| Trigger processing | ELISE 2.0 sensing chip |
| Balanced bus outputs | 12 XLR male outputs, +4 dBu balanced, with attenuation and ground-lift switching |
| USB audio | 12-channel output at 48 kHz / 24-bit; 2-channel input at 48 kHz / 16-bit |
| USB MIDI | Input and output over USB 2.0 High-Speed Type-B |
| Analog line output | Two 1/4-inch TS outputs |
| Headphone outputs | One 1/4-inch stereo and one 1/8-inch stereo output |
| Monitor input | Two XLR/TRS combo inputs, balanced, with ground lift |
| Line input | Two 1/4-inch TS inputs |
| Wireless | Bluetooth audio input and Bluetooth MIDI input/output |
| Hardware MIDI | 5-pin DIN MIDI output |
| Drum kits | 23 editable presets and 100 user kits |
| Set lists | 15 set lists with 20 slots each |
| Recorder | 15 tracks at 480 TPQN |
| Audio buses | 16 channels; 12 buses plus Bus Mix L/R and Main L/R |
| Bus processing | HPF and EQ on buses 1-12; compressors on buses 1-6 |
| Control surface | 128 × 172 × 30 mm; 700 g, excluding protrusions |
| Base unit | 206 × 210 × 238 mm; 3,250 g, excluding protrusions |
| Power | 12 V DC / 1.5 A AC adapter |
| Shell count | 5 |
| Cymbal count | 5 |
| Series | PRO 500 Series |
| Finish | White Sparkle |
Important Configuration Note
EFNOTE notes that product images are illustrative and configurations can vary by country. Support hardware is normally included with complete sets unless sold separately, so confirm current distributor packaging before fulfillment.
Why EFNOTE PRO?
EFNOTE PRO is designed to digitize the drum riser without reducing the instrument to a compact controller. The system combines acoustic-style physical scale, EFNOTE-recorded drum and cymbal sounds, isolated balanced outputs, show-file organization, remote engineering control, and expandable professional routing.
Frequently Asked Questions
What is the EFNOTE PRO 503?
The EFNOTE PRO 503 is a professional acoustic-design electronic drum kit with multi-sensor mesh shells, 360-degree cymbal sensing, the EFD-PRO module, 12 balanced XLR bus outputs, and 12-channel USB audio output.
Who is the EFNOTE PRO 503 designed for?
It is designed for small stages, churches, cafés, event work, home studios, and players who want a compact 16-inch-kick footprint.
Can it send individual drum channels directly to a stage console?
Yes. The EFD-PRO stage box provides 12 balanced XLR bus outputs with flexible assignments for kick, snare, toms, cymbals, click, external inputs, and other routing needs.
Can it record separate drum channels over USB?
Yes. The module sends 12 USB audio outputs at 48 kHz / 24-bit and accepts two USB audio inputs at 48 kHz / 16-bit while also supporting USB MIDI.
What additional hardware is needed?
Plan for Kick pedal, Hi-hat stand, Drum throne, Drumsticks, Headphones, Smartphone or computer. EFNOTE notes that product images are illustrative and configurations can vary by country. Support hardware is normally included with complete sets unless sold separately, so confirm current distributor packaging before fulfillment.
Contact Victory Musical Instruments to confirm current distributor availability, regional packaging, and any pedals, stands, monitoring, or stage cabling needed for your installation.
