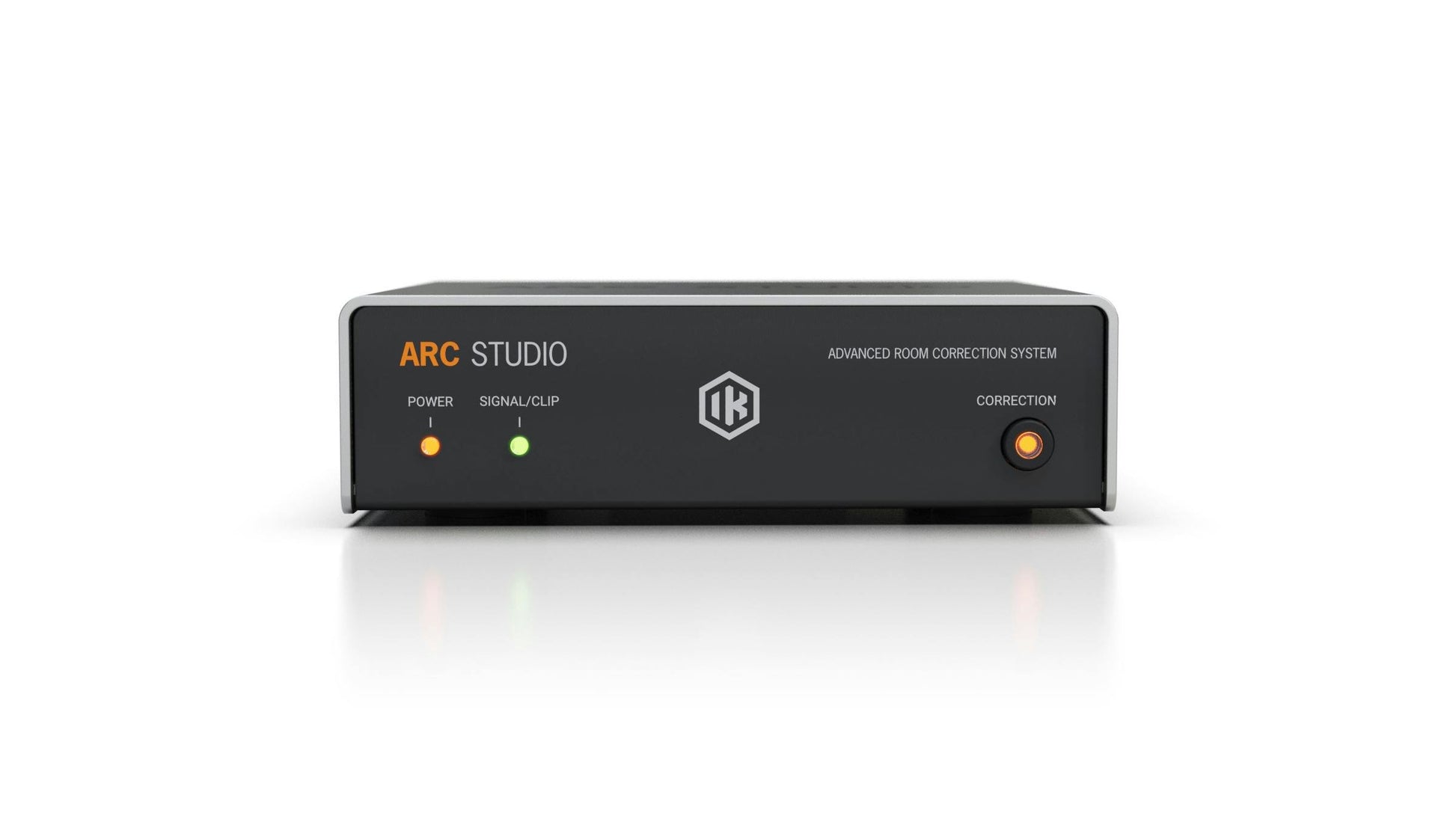

IK Multimedia ARC Studio is a hardware room correction processor that sits between any audio interface and any pair of monitors and applies measured correction outside the computer. It runs AKM Velvet Sound converters at 24-bit and 96 kHz with 32-bit float internal processing, 120 dB dynamic range, THD of 0.00035 percent and 1.4 ms latency in Natural Phase mode.
Room correction that survives leaving the DAW.
Plug-in room correction has one structural problem: it only corrects what passes through the DAW. Reference tracks from a browser, a client's phone, a hardware synth patched to the monitor controller, none of it gets corrected. ARC Studio moves the correction into hardware in the monitor path, so everything you hear through those speakers is corrected, including the things you did not plan to correct.
Measurement runs from the included ARC microphone through the ARC software, and the resulting profile is stored in the box. After that the computer is optional. Two correction modes are available: Natural Phase at 1.4 ms for tracking and live work, and Linear Phase at 42 ms for the most accurate correction when latency does not matter.
Because the processing is 32-bit float internally with 120 dB of dynamic range and phase deviation held to +7 degrees at 20 Hz, the correction is not costing you audio quality to get it. The unit measures 14.4 x 12 x 4.5 cm and weighs 465 g, so it fits on a desk next to the interface.
At a Glance
| Function | Hardware room correction processor for stereo monitors |
| Converters | AKM Velvet Sound, 24-bit, 96 kHz |
| Internal processing | 32-bit float |
| Frequency response | 2 Hz to 45 kHz at -2 dB |
| Dynamic range | 120 dB A-weighted |
| THD, 20 Hz to 20 kHz | 0.00035 percent |
| Latency | 1.4 ms Natural Phase, 42 ms Linear Phase |
| Size | 14.4 x 12 x 4.5 cm, 5.6 x 4.72 x 1.77 in., 465 g |
How Is ARC Studio Different From a Correction Plug-In?
A plug-in corrects the DAW output only. ARC Studio corrects the monitor path, so streaming references, system audio, hardware sources and anything else feeding your monitors gets the same correction your mix does. It also frees the CPU and removes the need to remember to bypass the plug-in before bouncing.
Who Is ARC Studio For?
Anyone mixing in an untreated or partially treated room who wants correction applied to everything they hear. It works with any monitors, so it is also the way to add measured correction to speakers that have no DSP of their own.
What Comes in the Box?
The ARC Studio processor, the ARC measurement microphone and clamp depending on version, a 1.5 m USB-C to USB-A cable, the power supply unit and a registration card. This listing is the version that includes the microphone.
Which Correction Mode Should I Use?
Natural Phase at 1.4 ms for tracking, overdubbing and anything where you are monitoring live. Linear Phase at 42 ms for mixing and mastering, where the extra accuracy is worth the delay because nothing is being played in real time.
Connections
| Analog input impedance | 20 kOhm balanced |
| Analog output impedance | 50 Ohm balanced |
| Maximum output level | +17 dBu |
| Data | USB-C to computer |
| Power | Included power supply unit |
Specifications
| THD+N at 1 kHz, -1 dBFS | -107 dB |
| Channel crosstalk at 1 kHz | -122.5 dB |
| Maximum phase deviation | +7 degrees at 20 Hz, +16 degrees at 22 kHz |
Why IK Multimedia?
IK Multimedia has been building music production hardware and software in Modena, Italy since 1996, with US operations in Sunrise, Florida. The company is behind AmpliTube, T-RackS, TONEX, the ARC room correction platform and the iLoud monitor range, and it designs its own DSP, converters and analog front ends rather than assembling reference designs.
Frequently Asked Questions
Is this a genuine IK Multimedia product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging with full manufacturer support.
Is this covered by warranty?
Yes. This unit carries the full IK Multimedia manufacturer warranty, registered to you as the original purchaser. Call 844-687-4208 with the current term for your region.
Does it work with any brand of studio monitor?
Yes. ARC Studio sits in the analog monitor path, so it corrects whatever speakers are downstream regardless of brand or whether they have their own DSP.
Do I need to keep a computer connected?
Only for the measurement. Once the correction profile is stored in the unit it runs standalone.
Is the measurement microphone included?
Yes on this version. There is a separate upgrade version without the microphone for people who already own an ARC mic.
