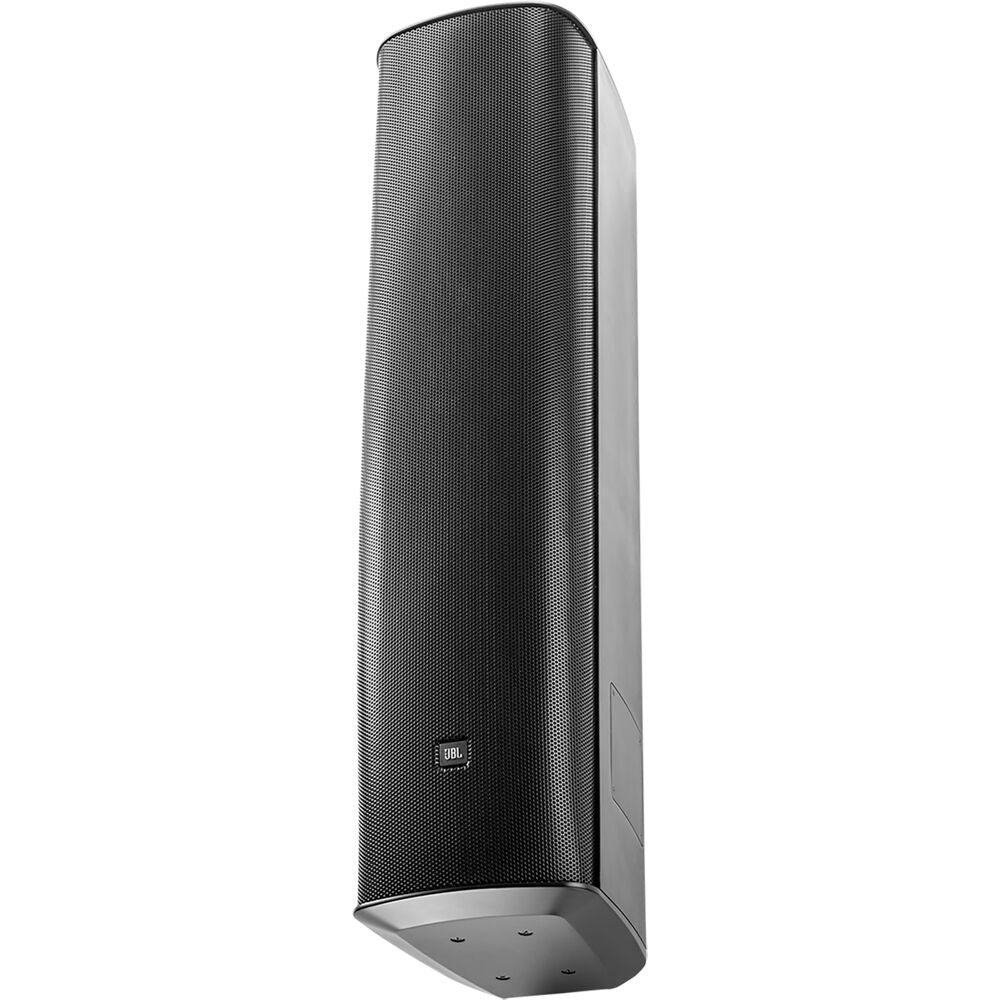

The JBL High-Output Two-Way Line Array Column with Highly is a loudspeaker sold brand-new by Victory Musical Instruments, a veteran-owned authorized JBL dealer in Miami, FL. Questions? Call 844-687-4208.
At a Glance
| Brand | JBL |
| Category | Speakers |
| Condition | New |
| Warranty | Full manufacturer warranty |
| MPN / SKU | CBT 1000 |
| UPC | 691991005688 |
| Sold by | Victory Musical Instruments (veteran-owned authorized dealer, Miami) |
The CBT 1000 represents the next-generation in pattern control, expanding upon JBL's highly successful CBT Constant Beamwidth Technology™ products. Utilizing patented complex analog beam-forming, the CBT 1000 provides superior and consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
The CBT 1000 combines Constant Beamwidth Technology with adjustable vertical coverage and a tapered horizontal waveguide to increase the versatility of aiming the coverage of the loudspeaker to more accurately map to the room geometry in a wide variety of listening spaces. The asymmetrical coverage settings produce a higher concentration of sound with a tighter pattern from the upper half of the array, and a lower concentration of sound with a broader vertical pattern from the lower half of the array. This sends more sound toward the far area of the room than to the near area of the room, resulting in more even front-toback SPL levels than would be the case from a traditional speaker or column that projects symmetrically in the vertical plane. Additionally, the vertical coverage pattern is individually installer adjustable though a range of four "Pattern Up" coverage angles and four "Pattern Down" coverage angles for a total of sixteen different coverage combinations, all without the use of any external DSP processing. The new patent-pending Tapered Horizontal Waveguide design provides a continuously varying horizontal dispersion by providing a very wide angle of dispersion for the short-throw distances while also providing a narrower horizontal angle of dispersion for the long-throw distances, providing superior coverage in both the front and rear corners of a room. The consistent pattern control allows the CBT 1000 to work well in difficult acoustic environments.
The two-way coaxial design provides a wide 45 Hz - 20 kHz bandwidth. The low-diffraction baffle eliminates frequency response irregularities that could otherwise occur due to baffle discontinuities. The thick, heavy-duty aluminum grille allows for rust-free installation outdoors. At 102 cm (40.2 in) tall and only 25 cm (9.9 in) wide, the design fits well with virtually any architectural décor.
Key Features
- Asymmetrical vertical coverage sends more sound toward far area of room to make front-to-back sound levels more consistent
- Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and six (6) 165 mm (6-1/2-inch) high-excursion LF drivers arranged coaxially
- Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out of coverage lobing
- Vertical pattern coverage is individually adjustable through a range of four (4) Pattern Up angles and four (4) Pattern Down coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing
- Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room
Frequently Asked Questions
Is the JBL High-Output Two-Way Line Array Column with Highly authentic and covered by warranty?
Yes. The JBL High-Output Two-Way Line Array Column with Highly is sold brand-new and factory-sealed by Victory Musical Instruments (VMI), an authorized JBL dealer (veteran-owned, based in Miami, FL), so it carries the full manufacturer warranty. Buying through an authorized dealer also protects your warranty and support eligibility.
Which exact model is the JBL High-Output Two-Way Line Array Column with Highly, and how do I make sure I order the right one?
This listing is the JBL CBT 1000. If you are comparing similar JBL models, match on the exact model/SKU (CBT 1000), since closely named products can differ in features and capability. The current price is shown on this page; for a quote, lead time, or help confirming the right fit, call 844-687-4208.
Are the JBL High-Output Two-Way Line Array Column with Highly powered (active) or passive?
Whether a model is powered or passive determines whether you also need an amplifier. Confirm this from the title and spec table above; if it is passive, pair it with an appropriately rated amplifier. We can spec a matching amp for you at 844-687-4208.
Are the JBL High-Output Two-Way Line Array Column with Highly suitable for a commercial or 70V install?
This model is aimed at installed and commercial sound. If your system runs on a 70V/100V line, verify the transformer tap and wattage in the title/spec table so the speaker matches your distributed-audio amplifier. Need a full install BOM? Call 844-687-4208.
How do I get help choosing or setting up the JBL High-Output Two-Way Line Array Column with Highly?
Call our team at 844-687-4208 or reach out through victorymusical.com. As a veteran-owned authorized dealer we can confirm compatibility, lead times, and the best configuration before you buy.
