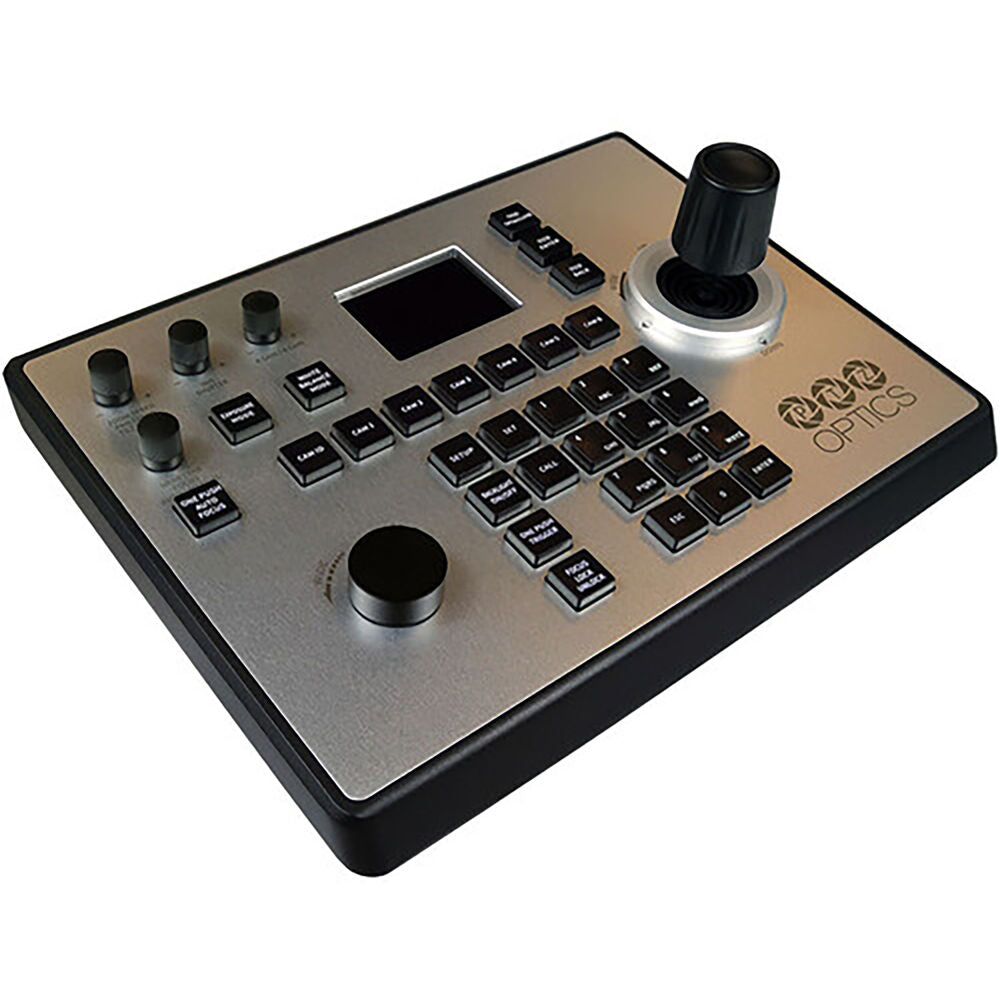

The PTZOptics PT-JOY-G4 is a fourth-generation joystick controller for PTZ cameras, driving up to 255 cameras over IP and seven over serial.
One panel for the whole camera plant, over IP or serial.
- 255 cameras over IP, 7 over serial
- VISCA, VISCA-over-IP, Pelco-P and Pelco-D
- Iris, focus, white balance and exposure control
- Backlit buttons and large LCD
- PoE powered
What is the 4D IP Joystick Controller?
Beyond pan, tilt and zoom, the G4 reaches the settings normally buried in a camera menu: iris, focus, white balance and exposure, adjustable live. Speed is variable on the fly. Buttons glow for dark control positions, nine quick-preset keys sit under the hand, and configurations import and export over IP so a replacement unit can be restored rather than rebuilt.
At a Glance
| Brand | PTZOptics |
|---|---|
| Model | PT-JOY-G4 |
| Control out | IP, RS-232, RS-422, RS-485 |
| Protocols | VISCA, VISCA-over-IP, Pelco-P, Pelco-D |
| Capacity | 255 IP / 7 serial |
How does it connect?
| Control out | IP, RS-232, RS-422, RS-485 |
|---|---|
| Protocols | VISCA, VISCA-over-IP, Pelco-P, Pelco-D |
| Capacity | 255 IP / 7 serial |
| Presets | 255 with 9 quick keys |
| Power | PoE |
What are the key specifications?
- Serial & VISCA-over-IP Controller
- For All PTZOptics & Other VISCA Cameras
- 255 Camera Presets, 9 Quick Presets
- Focus Lock/Unlock Control, PoE Support
- Camera OSD & Large LCD Status Display
Why choose PTZOptics?
A joystick that also reaches exposure and white balance means an operator can match cameras during a service or a game instead of afterwards in post.
Frequently asked questions
How many cameras can it control?
Up to 255 over IP, and seven over serial protocols.
Which protocols are supported?
VISCA, VISCA-over-IP, Pelco-P and Pelco-D, over IP and RS-232, RS-422 and RS-485.
Can I back up the configuration?
Yes, import and export over IP.
Does it need a separate power supply?
It supports PoE.
