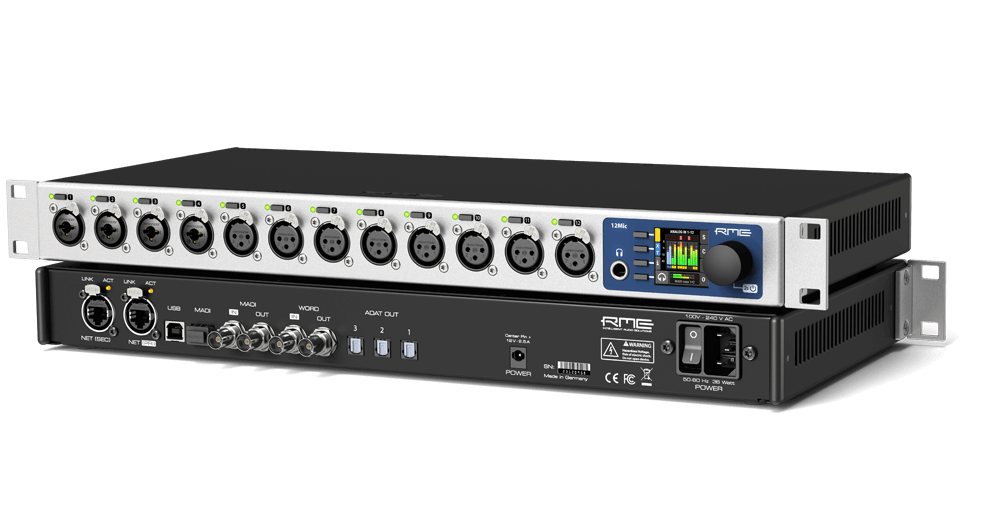

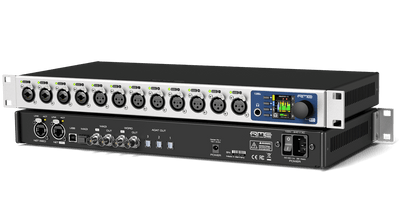

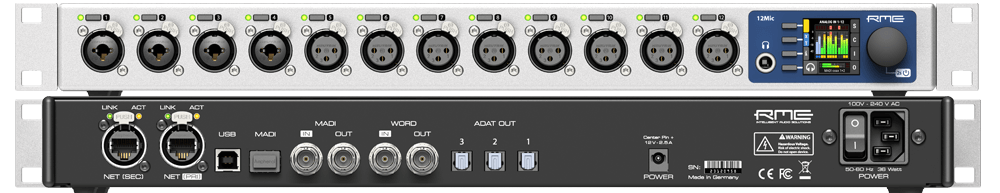

RME 12Mic-D is a 12-channel digitally controlled microphone preamplifier with Dante, ADAT & MADI. Connectivity covers 1 x Phones Output, 4 x XLR/TRS Mic/Inst/Line, 8 x XLR Mic/Line, Redundant PSU (optional), 1 x Word Clock I/O, 1 x MADI I/O coaxial.
Transparent RME preamps placed where the sources are, controlled from anywhere.
Overview
12Mic-D - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
The RME 12Mic-D features twelve microphone and line level inputs with digital, no-compromise, studio-quality conversion; remote controllable gains; integrated MADI and Dante connectivity; plus a multitude of additional functionality, designed for use in high-end studio recording, live audio, and location sound and music recording.
The PAD-free microphone input stages have a 75 dB gain range and accept signals of up to +18 dBu. On the converter side, the 12Mic shines with an outstanding signal-to-noise ratio on all channels. All twelve front-facing XLR connections accept microphone and line level signals, whilst the first four connections also accept TRS connectors, with switchable high impedance (Hi-Z) for instruments.
At a Glance
| Type | Microphone Preamp |
| Description | 12-channel digitally controlled microphone preamplifier with Dante, ADAT & MADI |
| Series | M-Series |
| Connectivity | 1 x Phones Output, 4 x XLR/TRS Mic/Inst/Line, 8 x XLR Mic/Line, Redundant PSU (optional), 1 x Word Clock I/O |
| Resolution AD | 24 bit |
| Availability | Sourced to order, call 844-687-4208 |
What Connections Does the 12Mic-D Have?
12Mic-D carries the following connectivity, taken from RME's own specification for this model.
| Phones Output | 1 x |
| XLR/TRS Mic/Inst/Line | 4 x |
| XLR Mic/Line | 8 x |
| Redundant PSU (optional) | Yes |
| Word Clock I/O | 1 x |
| MADI I/O coaxial | 1 x |
| ADAT Out | 3 x |
Who Is the 12Mic-D For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Input | XLR, electronically balanced |
| Input impedance | 3.4 kOhm |
| Gain range | 75 dB, 1 dB steps |
| Resolution AD | 24 bit |
| Frequency response @ 44.1 kHz, -0.1 dB | 8 Hz - 20.8 kHz |
| Frequency response @ 96 kHz, -0.5 dB | 4 Hz - 29.2 |
| Frequency response @ 192 kHz, -1 dB | 3 Hz - 43.7 |
| THD @ 30 dB gain | < -110 dB, < 0.00032 % |
| THD+N @ 30 dB gain | < -104 dB, < 0.00063 % |
| Channel separation | > 110 dB |
| Signal to Noise ratio (SNR) | > 117 dB RMS unweighted, > 120 dB(A) |
| Equivalent Input Noise (EIN), 30 dB Gain | 123 dB RMS unweighted, 125.5 dB(A) @ 150 Ohm |
| Maximum input level, Gain 0 dB | +18 dBu |
| Maximum input level, Gain 75 dB | -57 dBu |
| Signal to Noise ratio (SNR) | 115 dB RMS unweighted, 118 dBA |
| Gain range | 42 dB, 1 dB steps |
| Maximum input level, Gain 8 dB | +20 dBu |
| Maximum input level, Gain 50 dB | -22 dBu |
| Switchable high impedance (unbalanced TS) | 1 MOhm |
| Single Speed | up to 64 channels 24 bit 48 kHz |
| Double Speed | up to 32 channels 24 bit 96 kHz |
| Quad Speed | up to 16 channels 24 bit 192 kHz |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
