RME ADI-2/4 Pro SE is a 2-AD/4-DA 768 kHz, High-Performance Converter. Connectivity covers 2 x Phono/Line input, 1 x ADAT I/O, 1 x SPDIF I/O, 1 x AES I/O, RME USB 2.0, 1 x Phones or Balanced Pentaconn.
Reference conversion built to run for years without attention.
Overview
ADI-2/4 Pro | High-end USB Audio Converter & Headphone Amp - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
Based on many years of continued feature development of the ADI-2 Pro, RME unveils the next addition to the countless award winning ADI-2 Series. The latest masterpiece comes with a newly developed circuit board, improved specs and faster DSP for an outstanding transparent sound signature, extreme power headphone amplifiers including IEM power setting, super low noise 4.4 mm Pentaconn balanced connection, trigger out function for powering on/off external devices and finally an RIAA mode for directly digitizing vinyl discs in highest quality.
Insights into the structure and operation of a modern studio that specializes in Atmos productions with excellent technology, infrastructure and acoustics.
At a Glance
| Type | Audio Converter |
| Description | 2-AD/4-DA 768 kHz, High-Performance Converter |
| Series | ADI-2 |
| Connectivity | 2 x Phono/Line input, 1 x ADAT I/O, 1 x SPDIF I/O, 1 x AES I/O, RME USB 2.0 |
| Availability | Sourced to order, call 844-687-4208 |

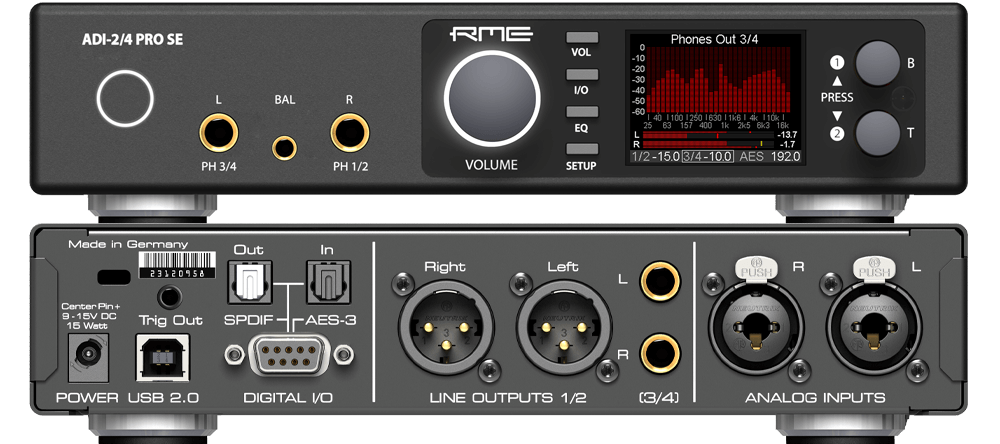

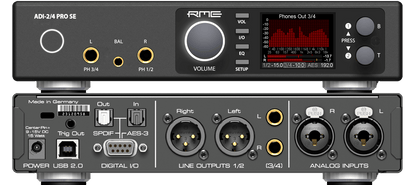

What Connections Does the ADI-2/4 Pro SE Have?
ADI-2/4 Pro SE carries the following connectivity, taken from RME's own specification for this model.
| Phono/Line input | 2 x |
| ADAT I/O | 1 x |
| SPDIF I/O | 1 x |
| AES I/O | 1 x |
| RME USB 2.0 | Yes |
| Phones or Balanced Pentaconn | 1 x |
| Line Output | 4 x |
| Clas | Yes |
Who Is the ADI-2/4 Pro SE For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Input | XLR and 6.3 mm TRS jack, servo-balanced |
| Input impedance @ 1 kHz, balanced | 90 kOhm, unbalanced: 45 kOhm |
| Digital Trim Gain range | 0 dB up to +6 dB, in steps of 0.5 dB |
| Signal to Noise ratio (SNR) @ +13/19/24 dBu | >120 dB (AES17), >123 dBA |
| Signal to Noise ratio (SNR) @ +7/+1 dBu | >120 dB (AES17), 123 dBA |
| Frequency response* @ 44.1 kHz, -0.1 dB | 0.4 Hz - 20.4 kHz |
| Frequency response* @ 96 kHz, -0.5 dB | 0.2 Hz - 45.5 kHz |
| Frequency response* @ 192 kHz, -1 dB | 0.15 Hz - 90.9 kHz |
| Frequency response* @ 384 kHz, -1 dB | 0.15 Hz - 182 kHz |
| Frequency response* @ 768 kHz, -1 dB | 0.15 Hz - 348 kHz |
| THD @ -0.5 dBFS | > -130 dB, 0.0000316 % |
| THD+N @ -0.5 dBFS | -119 dB, 0.000112 % |
| Channel separation | > 130 dB @ 1 kHz |
| * DC Filter None. With Filter RME @ -1 dB | < 0,5 Hz |
| RIAA deviation 20 Hz - 20 kHz | < ±0.05 dB |
| Input impedance | 45 kOhm @ 1 kHz, input capacitance 150 pF |
| Sensitivity | +14 dB: 20 mV, +20 dB: 10 mV, +26 dB: 5 mV |
| Sensitivity | +32 dB 2.5 mV, +38 dB: 1.25 mV |
| Maximum input level @ +14 dB | 114 mV, -16.6 dBu |
| Maximum input level @ +20 dB | 57 mV, -22.6 dBu |
| Maximum input level @ +26 dB | 28.4 mV, -28.7 dBu |
| Maximum input level @ +32 dB | 14.3 mV, -34.7 dBu |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
