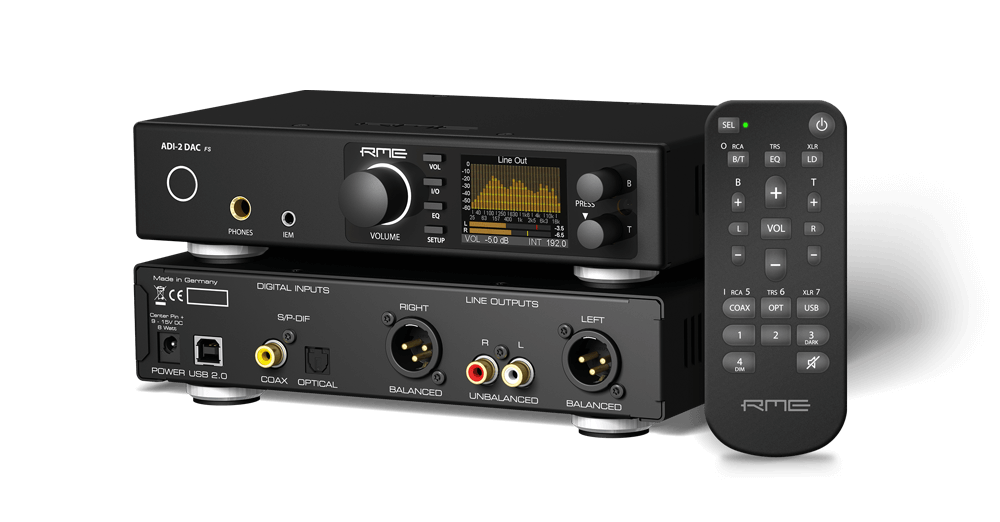

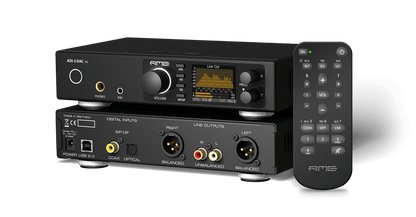

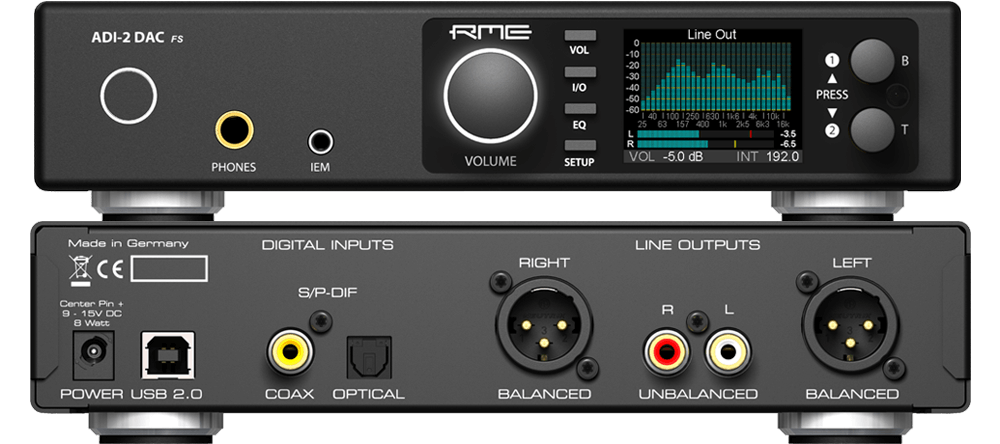

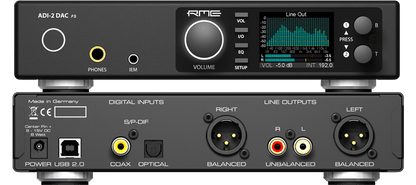

RME ADI-2 DAC FS is an Ultra-Fidelity PCM/DSD 768 kHz DA Converter. Connectivity covers RME USB 2.0, 2 x Phones Output, Class Compliant Mode, 1 x Line Output, 2 x SPDIF Input, Remote.
Reference playback and headphone amplification in a desktop chassis.
Overview
ADI-2-DAC FS - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
The ADI-2 DAC includes an improved SteadyClock, a fine-tuned to perfection analog circuitry,
, Extreme Power headphone output and a very special IEM output. It has all the bells and whistles that made the ADI-2 Pro famous, including its perfectly transparent sound signature and full DSP processing with Bass, Treble, Loudness, 5 Band Parametric EQ, Crossfeed and much more. With its simplified operation and stunning design it is the ideal center piece from home listening up to studio reference playback.
At a Glance
| Type | Digital to Analog Converter |
| Description | Ultra-Fidelity PCM/DSD 768 kHz DA Converter |
| Series | ADI-2 |
| Connectivity | RME USB 2.0, 2 x Phones Output, Class Compliant Mode, 1 x Line Output, 2 x SPDIF Input |
| Availability | Sourced to order, call 844-687-4208 |
What Connections Does the ADI-2 DAC FS Have?
ADI-2 DAC FS carries the following connectivity, taken from RME's own specification for this model.
| RME USB 2.0 | Yes |
| Phones Output | 2 x |
| Class Compliant Mode | Yes |
| Line Output | 1 x |
| SPDIF Input | 2 x |
| Remote | Yes |
| Stereo Cinch | 1 x |
| SteadyClock FS | Yes |
Who Is the ADI-2 DAC FS For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Lock Range | 28 kHz - 200 kHz |
| Jitter suppression | > 50 dB (2.4 kHz) |
| Jitter when synced to input signal | < 1 ns |
| Signal-to-noise ratio (SNR) @ +7/+13/+19 dBu | 120 dB RMS unweighted, 123 dBA |
| Signal-to-noise ratio (SNR) @ +1 dBu | 117 dB RMS unweighted, 120 dBA |
| Frequency response @ 44.1 kHz, -0.1 dB | 0 Hz - 20.2 kHz |
| Frequency response @ 96 kHz, -0.5 dB | 0 Hz - 44.9 kHz |
| Frequency response @ 192 kHz, -1 dB | 0 Hz - 88 kHz |
| Frequency response @ 384 kHz, -1 dB | 0 Hz - 115 kHz |
| Frequency response @ 768 kHz, -3 dB | 0 Hz - 109 kHz |
| THD @ 0 dBFS | < -120 dB, 0.0001 % |
| THD+N @ 0 dBFS | -116 dB, 0.00016 % |
| Channel separation | > 120 dB |
| Output impedance | 200 Ohm |
| Output | 6.3 mm TS jack, unbalanced |
| Signal-to-noise ratio (SNR) @ +13 dBu | 120 dB RMS unweighted, 123 dBA |
| Signal-to-noise ratio (SNR) @ +1/+7 dBu | 116/119 dB RMS unw., 119/122 dBA |
| Signal-to-noise ratio (SNR) @ -5 dBu | 112 dB RMS unweighted, 114 dBA |
| Output impedance | 100 Ohm |
| Output | 6.3 mm TRS jack, unbalanced, stereo |
| Output impedance | 0.1 Ohm |
| Signal-to-noise ratio (SNR) @ +22 dBu | 120 dB RMS unweighted, 123 dBA |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
