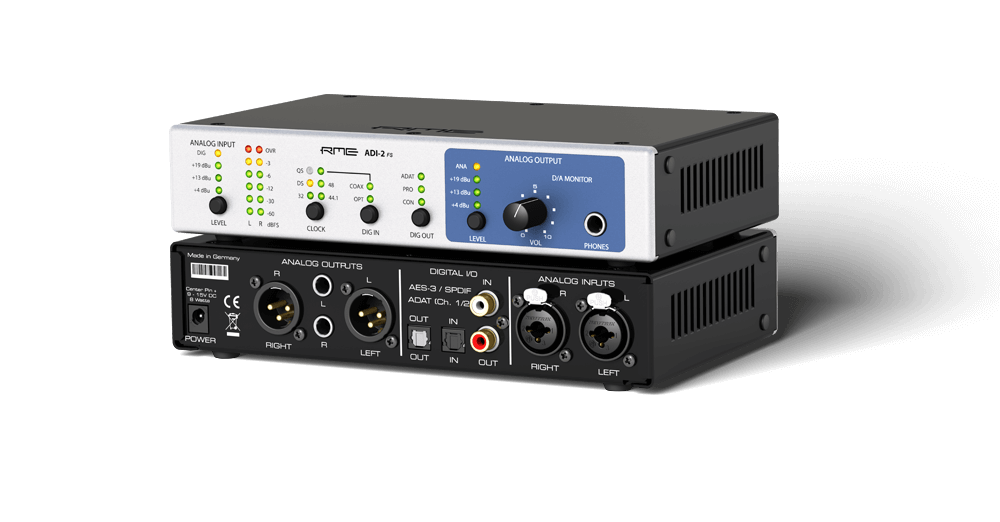

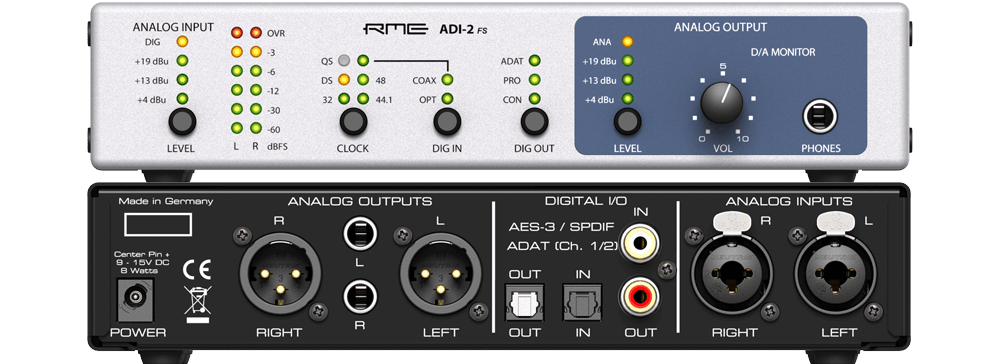

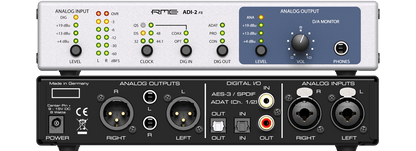

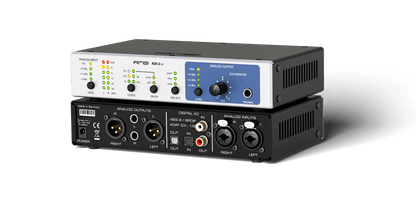

RME ADI-2 FS is a High-Precision 192 kHz 2-Channel AD/DA converter. Connectivity covers 1 x Stereo Analog I/O, 1 x ADAT I/O, 1 x SPDIF I/O, 1 x Phones Output, SteadyClock FS, DC-coupled Outputs.
Reference conversion built to run for years without attention.
Overview
ADI-2 FS - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
The ADI-2 FS is a compact and extremely flexible 2-channel Hi-End AD/DA-converter. The small 9.5" unit offers first-class AD/DA-conversion from/to SPDIF, AES and ADAT, at up to 192 kHz. Its ability to use SPDIF, AES and ADAT format provides outstanding compatibility. Whatever it is - simply get connected!
Balanced analog inputs and outputs, monitoring via headphone output, SteadyClock FS for optimal conversion quality, 3-stage hardware input and output level control and the additional modes D-D and A-A turn the ADI-2 FS into a universal tool and a flexible problem solver. Its pro-class sound qualifies it also as extension for other premium converters.
At a Glance
| Type | Audio Converter |
| Description | High-Precision 192 kHz 2-Channel AD/DA converter |
| Series | ADI-2 |
| Connectivity | 1 x Stereo Analog I/O, 1 x ADAT I/O, 1 x SPDIF I/O, 1 x Phones Output, SteadyClock FS |
| Availability | Sourced to order, call 844-687-4208 |
What Connections Does the ADI-2 FS Have?
ADI-2 FS carries the following connectivity, taken from RME's own specification for this model.
| Stereo Analog I/O | 1 x |
| ADAT I/O | 1 x |
| SPDIF I/O | 1 x |
| Phones Output | 1 x |
| SteadyClock FS | Yes |
| DC-coupled Outputs | Yes |
| Highlights | Yes |
Who Is the ADI-2 FS For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Signal to Noise ratio (SNR) @ +19 dBu | 117 dB RMS unweighted, 121 dBA |
| Frequency response @ 44.1 kHz, -0.1 dB | 5 Hz - 20.5 kHz |
| Frequency response @ 96 kHz, -0.5 dB | 3 Hz - 45.5 kHz |
| Frequency response @ 192 kHz, -1 dB | 2 Hz - 92.7 kHz |
| THD @ -1 dBFS | -114 dB, 0.00015 % |
| THD+N @ -1 dBFS | -112 dB, 0.00025 % |
| Channel separation | > 110 dB |
| Max Input Level AD | +19 dBu |
| Input | XLR or 1/4" TRS, electronically balanced |
| Input impedance balanced | 36 kOhm, unbalanced: 18 kOhm |
| Input sensitivity switchable | +4 dBu, +13 dBu, +19 dBu @ 0 dBFS |
| Signal to Noise ratio (SNR) | 117 dB RMS unweighted, 120 dBA |
| Frequency response @ 44.1 kHz, -0.1 dB | 10 Hz - 20.2 kHz |
| Frequency response @ 96 kHz, -0.5 dB | 5 Hz - 44.9 kHz |
| Frequency response @ 192 kHz, -1 dB | 3 Hz - 88 kHz |
| THD @ -1 dBFS | -112 dB, 0.00025 % |
| THD+N @ -1 dBFS | -110 dB, 0.00032 % |
| THD @ -3 dBFS | -116 dB, 0.00016 % |
| Max Output Level DA | +19 dBu |
| Output | XLR balanced, 1/4" TRS unbalanced/balanced |
| Output impedance | XLR balanced 150 Ohm, TS unbalanced 100 Ohm |
| Output level switchable | +4 dBu, +13 dBu, +19 dBu @ 0 dBFS |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
