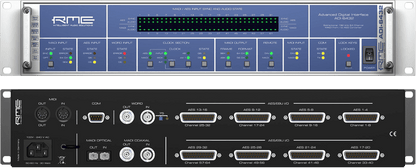

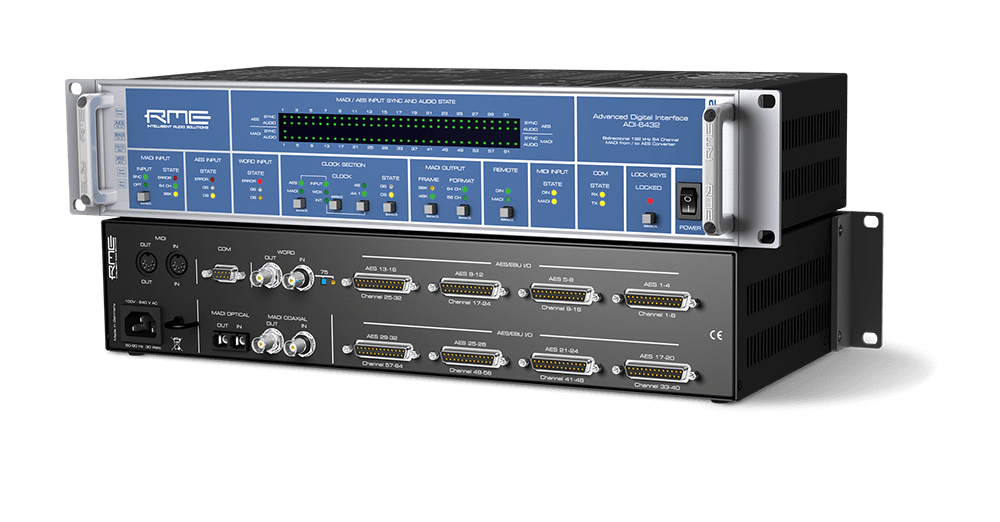

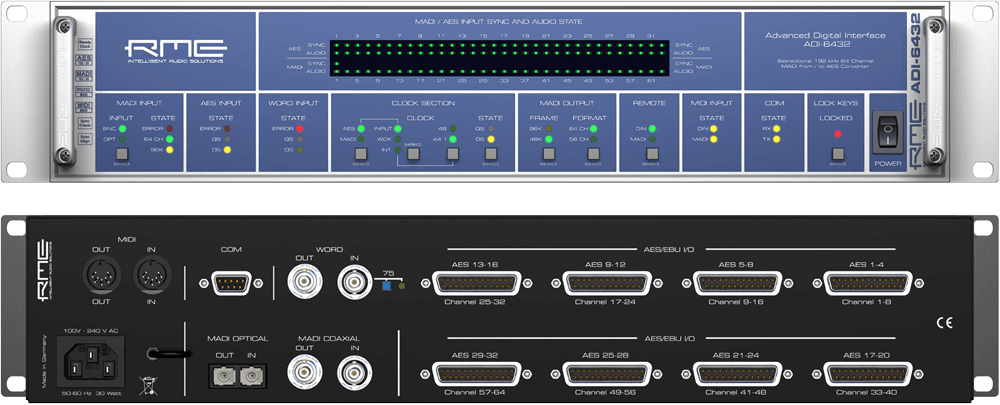

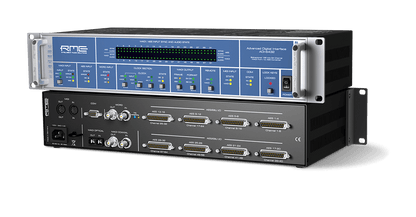

RME ADI-6432 R is a 64-channel MADI to AES/EBU format converter with redundant MADI and power. Connectivity covers 32 x AES/EBU I/O, 1 x MADI optical I/O, 1 x Word Clock I/O, 1 x Com-Port I/O, 1 x MIDI I/O.
Reference conversion built to run for years without attention.
Overview
ADI-6432/ADI-6432R - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
The ADI-6432 converts all 64 channels of a single MADI stream to 32 AES/EBU ports and vice versa. Thus it supports all 64 channels of the MADI format at up to 48 kHz, 32 channels at up to 96 kHz and 16 channels at up to 192 kHz. Connected to the HDSP(e) MADI interface, the ADI-6432 turns into a powerful external 32-port AES/EBU interface. Two units will build a perfect digital multicore solution without any computer needed.
Typical applications include two ADI-6432 used as digital multicore, or one unit used as AES/EBU frontend for the Hammerfall DSP MADI PCI card. Up to 192 kHz at 24-Bit are supported. Built with 2 units height there is enough space for all connectors and control elements.
At a Glance
| Type | Audio Converter |
| Description | 64-channel MADI to AES/EBU format converter with redundant MADI and power |
| Series | ADI |
| Connectivity | 32 x AES/EBU I/O, 1 x MADI optical I/O, 1 x Word Clock I/O, 1 x Com-Port I/O, 1 x MIDI I/O |
| Sample rate range | MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz |
| Power supply | Internal switching mode PS, 100V - 240V AC, 20 Watt |
| Dimensions | (WxHxD) 483 x 88 x 200 mm |
| Availability | Sourced to order, call 844-687-4208 |
What Connections Does the ADI-6432 R Have?
ADI-6432 R carries the following connectivity, taken from RME's own specification for this model.
| AES/EBU I/O | 32 x |
| MADI optical I/O | 1 x |
| Word Clock I/O | 1 x |
| Com-Port I/O | 1 x |
| MIDI I/O | 1 x |
Who Is the ADI-6432 R For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Input MADI | 1 x BNC, 1 x optical |
| Input AES/EBU | 32 x, 4 x per D-sub connector, transformer balanced, highly sensitive input stage (< 0.3 Vpp), SPDIF compatible |
| Output AES/EBU | 32 x, 4 x per D-sub connector, transformer balanced, 4 Vpp |
| Input word clock | BNC, Signal Adaptation Circuit (functional from 1.2 Vpp) |
| Output word clock | BNC, low impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof |
| MIDI input and output | via two 5-pin DIN jacks |
| COM port | RS232 via 9-pin D-sub, 9600/19200/115200 Baud |
| Sync sources | MADI, AES, word clock, internal |
| Varipitch | by input signal or word clock |
| Sample frequencies | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word clock) |
| Sample rate range | MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz |
| Jitter | Internal Clock < 1 ns, Word Clock In < 2 ns, AES/EBU In < 2 ns |
| Jitter suppression | >30 dB (2.4 kHz) |
| Jitter sensitivity | all PLLs operate error-free even at 100 ns |
| Power supply | Internal switching mode PS, 100V - 240V AC, 20 Watt |
| Dimensions | (WxHxD) 483 x 88 x 200 mm |
| Warranty | 2 years |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
