RME ADI-8 QS is an 8-Channel AD/DA Converter with MADI Option. Connectivity covers 8 x Analog I/O, 4 x AES/EBU I/O, 2 x ADAT I/O, 1 x Word Clock I/O, 1 x MIDI I/O.
Reference conversion built to run for years without attention.
Overview
ADI-8 QS - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions

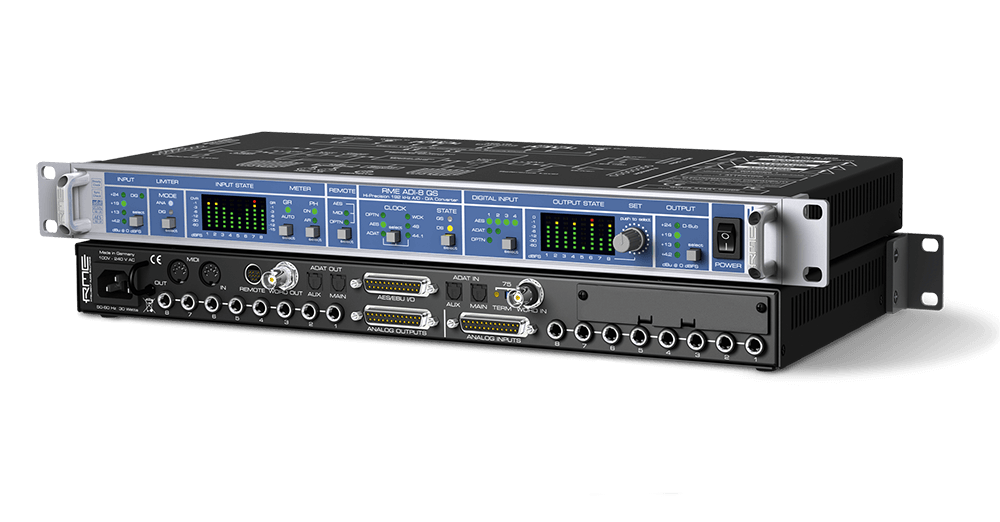

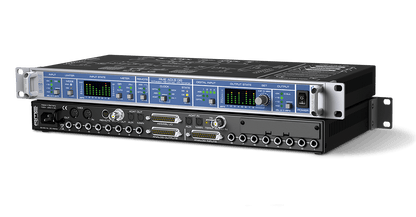

RME's ADI-8 QS is an 8-Channel hi-end AD/DA converter with an unrivalled bunch of features. The device combines excellent analog circuit design with outstanding low latency AD/DA converter chips of the latest generation. Along with the integrated SteadyClock, the QS offers an AD- and DA-conversion of the highest quality.
The recording sessions are for Kuniko's 4th coming global release from LINN Records titled Works for Bach vol.1 (tbd.).
At a Glance
| Type | Audio Converter |
| Description | 8-Channel AD/DA Converter with MADI Option |
| Series | ADI |
| Connectivity | 8 x Analog I/O, 4 x AES/EBU I/O, 2 x ADAT I/O, 1 x Word Clock I/O, 1 x MIDI I/O |
| Sample rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word) |
| Power supply | Internal switching mode ps, 100 V-240 V AC |
| Availability | Sourced to order, call 844-687-4208 |

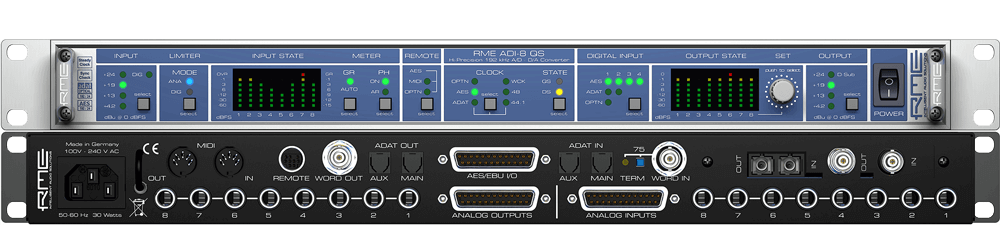

What Connections Does the ADI-8 QS Have?
ADI-8 QS carries the following connectivity, taken from RME's own specification for this model.
| Analog I/O | 8 x |
| AES/EBU I/O | 4 x |
| ADAT I/O | 2 x |
| Word Clock I/O | 1 x |
| MIDI I/O | 1 x |
Who Is the ADI-8 QS For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Input AD | 1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio path |
| Output AD | 4 x AES/EBU, 2 x ADAT optical, optional MADI |
| Input DA | 4 x AES/EBU, 2 x ADAT optical, optional MADI |
| Output DA | 1/4" TRS jack servo balanced, up to +21 dBu. 25 pin D-sub, balanced, up to +24 dBu. DC-coupled audio path |
| Dynamic Range AD | 117 dBA |
| THD AD | < -110 dB (< 0.00032 %) |
| THD+N AD | < -104 dB (< 0.00063 %) |
| Crosstalk AD | > 130 dB |
| Dynamic Range DA | 120 dBA unmuted |
| THD DA | < -104 dB (< 0.00063 %) |
| THD+N DA | < -102 dB (< 0.0008 %) |
| Crosstalk DA | > 110 dB |
| Input level for 0 dBFS | +24 dBu, +19 dBu, +13 dBu, +4.2 dBu, each adjustable by 6 dB in steps of 0.5 dB via Digital Input Trim |
| Output level for 0 dBFS | +24 dBu, +19 dBu, +13 dBu, +4.2 dBu, each adjustable by +/- 6 dB in steps of 0.5 dB |
| Output level global | 0 down to -96 dB in 48 steps |
| Sample rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word) |
| Frequency response AD/DA, -0.1 dB | 10 Hz - 23.2 kHz (sf 48 kHz) |
| Frequency response AD/DA, -0.5 dB | < 5 Hz - 44.6 kHz (sf 96 kHz) |
| Frequency response AD/DA, -1 dB | < 5 Hz - 63.4 kHz (sf 192 kHz) |
| Power supply | Internal switching mode ps, 100 V-240 V AC |
| Warranty | 2 years |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
