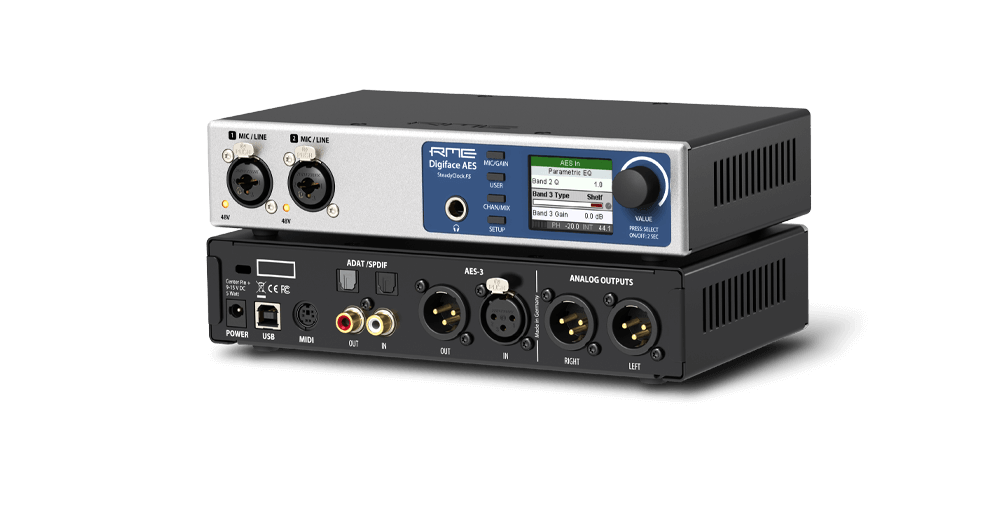

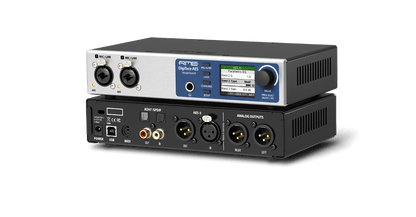

RME Digiface AES is a 192 kHz Digital USB Interface with AES/SPDIF/ADAT/Analog I/O. Connectivity covers 2 x Mic/Line Input, 2 x XLR Out, 1 x Phones Output, 1 x AES I/O via XLR, 1 x SPDIF I/O Coax, 1 x SPDIF I/O.
Studio-grade conversion and RME driver stability in one box.
Overview
Digiface AES | bus-powernd USB 2 Audio Interface - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
The latest Digiface AES is a professional, bus powered 14 input and 16 output channel USB 2.0 interface with 2 Mic/Line universal analog input channels and 4 analog output channels (2 XLR, one TRS phones) complementing its digital I/O section. With an excellent set of digital connectivity, SteadyClock FS, full stand-alone operation and built-in parametric EQ, the Digiface AES shines as the perfect all-in-one solution for recording and playback of digital and analog sources, as well as flexible playback/monitoring via TotalMix FX.
For the main inputs RME uses the proven mic/line preamps in XLR combo configuration of the Babyface Pro FS. Two digitally controlled preamps provide individually switchable 48V phantom power. These circuits feature a gain range of 75 dB, adjustable in steps of 1 dB, including a relay-driven PAD, resulting in exceptional EIN (Equivalent Input Noise) performance as well as line overload protection, and enough gain for even the lowest level microphones.
At a Glance
| Type | Audio Interface |
| Description | 192 kHz Digital USB Interface with AES/SPDIF/ADAT/Analog I/O |
| Series | Digiface |
| Connectivity | 2 x Mic/Line Input, 2 x XLR Out, 1 x Phones Output, 1 x AES I/O via XLR, 1 x SPDIF I/O Coax |
| Availability | Sourced to order, call 844-687-4208 |

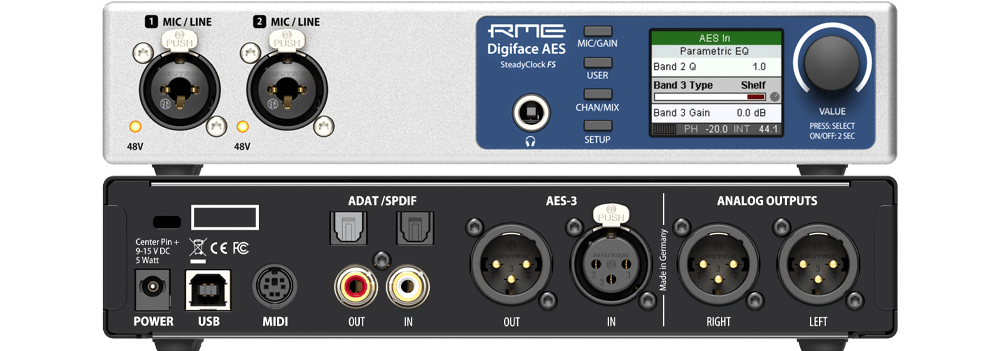

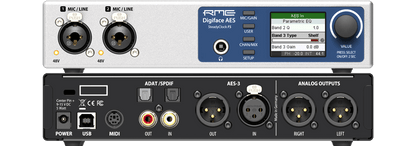

What Connections Does the Digiface AES Have?
Digiface AES carries the following connectivity, taken from RME's own specification for this model.
| Mic/Line Input | 2 x |
| XLR Out | 2 x |
| Phones Output | 1 x |
| AES I/O via XLR | 1 x |
| SPDIF I/O Coax | 1 x |
| SPDIF I/O | 1 x |
| ADAT I/O | 1 x |
| MIDI I/O | 1 x |
Who Is the Digiface AES For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Input | XLR, electronically balanced |
| Input impedance balanced @ 1 kHz | 2 kOhm, PAD 5,3 kOhm |
| Input impedance unbalanced @ 1 kHz | 1 kOhm, PAD 2,6 kOhm |
| Maximum input level, Gain 0 dB | +8 dBu, PAD +19 dBu |
| Maximum input level, Gain 75 dB | -67 dBu, PAD -56 dBu |
| Gain range | 75 dB |
| EIN | -129 dBu A-weighted, 60 dB gain,150 Ohm, 20 Hz - 20 kHz |
| Signal to Noise ratio (SNR) | 113 dB RMS unweighted, 115 dBA |
| Frequency response @ 44.1 kHz, -0,1 dB | 16 Hz - 20,4 kHz |
| Frequency response @ 96 kHz, -0,5 dB | 7 Hz - 45,8 kHz |
| Frequency response @ 192 kHz, -1 dB | 5 Hz - 88 kHz |
| Frequency response PAD @ 44.1 kHz, -0,1 dB | 5 Hz - 20,4 kHz |
| Frequency response PAD @ 96 kHz, -0,5 dB | 2,5 Hz - 45,8 kHz |
| Frequency response PAD @ 192 kHz, -1 dB | 2 Hz - 88 kHz |
| THD | < -110 dB, < 0,0003 % |
| THD+N | < -106 dB, < 0,0005 % |
| Channel separation | > 110 dB |
| Input | 6.3 mm TRS jack, electronically balanced |
| Input impedance @ 1 kHz | 12 kOhm balanced, 6 kOhm unbalanced |
| Maximum input level, Gain 0 dB | +24 dBu |
| Maximum input level, Gain 75 dB | -51 dBu |
| Frequency response @ 44.1 kHz, -0,1 dB | 2 Hz - 20,3 kHz |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
