RME Digiface USB is a 66-Channel 192 kHz USB Audio Interface. Connectivity covers 4 x ADAT I/O, 1 x Phones Output, TotalMix FX, ARC USB, RME USB 2.0, DC-coupled Outputs (Phones).
Studio-grade conversion and RME driver stability in one box.
Overview
Digiface USB - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. Numerous unique features as well as RME's robust drivers enable a quick, efficient and comfortable operation of the Digiface USB. Its small size, weight and bus-powered operation make the Digiface USB extremely versatile and useful. It could even serve as simple headphone amp for mobile use.

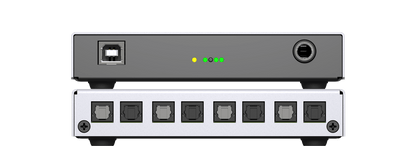

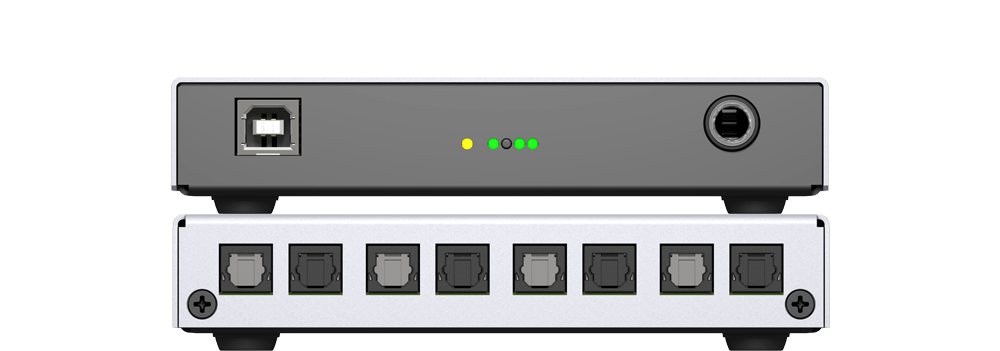

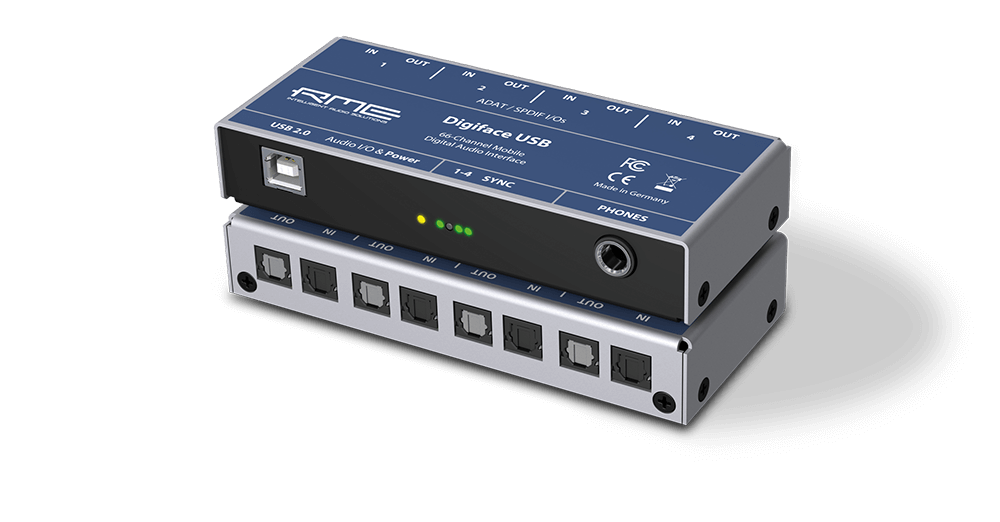

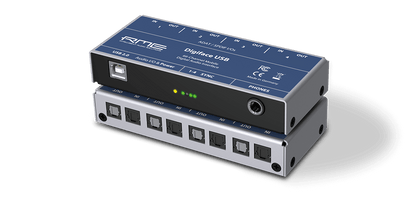

The Digiface USB is an extremely compact & portable digital audio interface with 4 optical ADAT / SPDIF I/Os, and an analog high-quality line/phones output via 6.3 mm TRS jack. Continuing the legacy of RME‘s famous HDSP Digiface, a triple ADAT I/O interface with phones and PCI interface, Digiface USB simplifies connection with USB 2, does not need an external power supply, and even adds another optical I/O, resulting in 32 channels input and output each when using ADAT optical.
At a Glance
| Type | Audio Interface |
| Description | 66-Channel 192 kHz USB Audio Interface |
| Series | Digiface |
| Connectivity | 4 x ADAT I/O, 1 x Phones Output, TotalMix FX, ARC USB, RME USB 2.0 |
| Supported sample rates | 28 kHz up to 200 kHz |
| Power supply | USB bus power |
| Availability | Sourced to order, call 844-687-4208 |
What Connections Does the Digiface USB Have?
Digiface USB carries the following connectivity, taken from RME's own specification for this model.
| ADAT I/O | 4 x |
| Phones Output | 1 x |
| TotalMix FX | Yes |
| ARC USB | Yes |
| RME USB 2.0 | Yes |
| DC-coupled Outputs (Phones) | Yes |
| Compact, portable and lightweight Audio Interface | Yes |
Who Is the Digiface USB For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Standard | 32 channels 24 bit, up to 48 kHz |
| Double Speed (S/MUX) | 16 channels 24 bit 96 kHz |
| Quad Speed (S/MUX4) | 8 channels 24 bit 192 kHz |
| Lock range | 31.5 kHz - 50 kHz |
| Jitter when synced to input signal | <1 ns |
| Dynamic range (DR) | 110 dB RMS unweighted, 113 dBA |
| Frequency response @ 44.1 kHz, -0.5 dB | 0 Hz - 20.8 kHz |
| Frequency response @ 96 kHz, -0.5 dB | 0 Hz - 45 kHz |
| Frequency response @ 192 kHz, -1 dB | 0 Hz - 89 kHz |
| THD@-1dBFS | -96dB,0.0016% |
| THD+N @ -1 dBFS | -95 dB, 0.0017 % |
| Channel separation | > 100 dB |
| Output | 6.3 mm TRS jack, unbalanced |
| Output impedance | 2 Ohm |
| Output level at 0 dBFS, 1 kOhm load | +9.5 dBu |
| Max power @ 0.1% THD | 50 mW |
| Clocks | Internal, ADAT In, SPDIF In |
| Low Jitter Design | < 1 ns in PLL mode, all inputs |
| Internal clock | 800 ps Jitter, Random Spread Spectrum |
| Jitter suppression of external clocks | > 30 dB (2.4 kHz) |
| Supported sample rates | 28 kHz up to 200 kHz |
| Power supply | USB bus power |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
