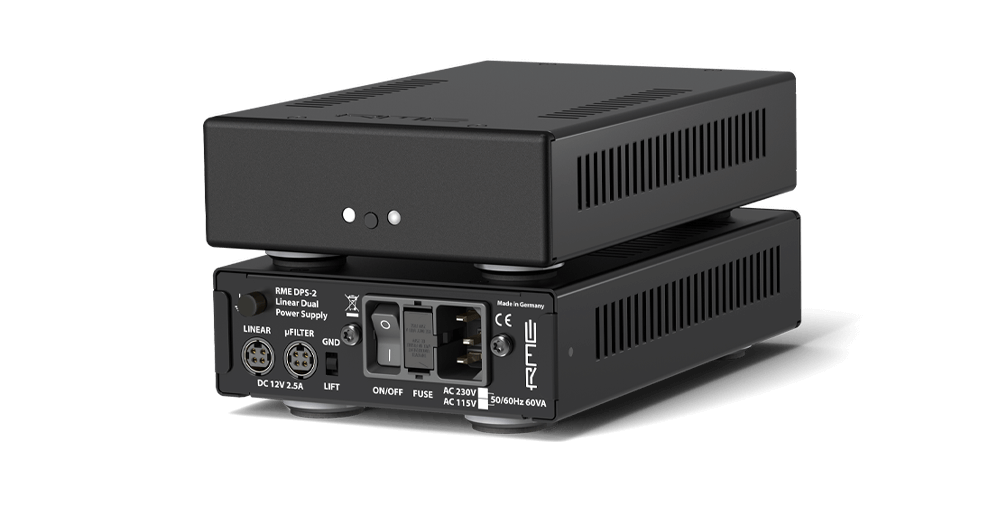

RME DPS-2 is a linear low noise dual audio power supply with filtering and sensor technology.
The correct RME part, so the connection is right the first time.
Overview
Linear Super Low Noise Dual Audio Power Supply with µFilter and Sensor Technology - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
The new DPS-2 is an exceptional linear power supply that boasts not only impressive technical data but also a wide range of unique and highly useful features. For instance, the compact device features two differently filtered outputs. The housing and front panel of the DPS-2 are based on the ADI-2 series, accommodating RME's innovative circuitry design on only half rack width.
The output Linear is a traditional DC output but is equipped with multi-stage passive and active filtering including a 30,000 μF capacitor bank, a ferrite choke as well as an active output filter with a hybrid voltage regulator.
At a Glance
| Type | Audio Accessory |
| Description | linear low noise dual audio power supply with filtering and sensor technology |
| Series | Power |
| Availability | Sourced to order, call 844-687-4208 |
Who Is the DPS-2 For?
It is the RME part for owners of the matching hardware. If you are not certain this is the correct item for your unit, call 844-687-4208 with your model number and we will confirm before you order.
Specifications
| Standard input voltage | 115 V or 230 V, set by internal connector |
| Input voltage range | 95 V - 130 V or 200 V - 260 V |
| Power consumption idle | 1.6 watt |
| Power consumption typical, 2 A load on Linear | 38.5 watts |
| Power consumption typical, 2 A load on μFilter | 39.8 watts |
| Fuses for 230 V | 2 x 250 V / 0.63 A slow blow, size: 5x20 mm |
| Fuses for 115 V | 2 x 250 V / 1.2 A slow blow, size: 5x20 mm |
| Maximum output voltage | 12.2 V @ 0 A |
| Minimum output voltage | 11.5 V @ 3 A |
| Continuous output current | 2.5 A |
| Continuous output power | 30 watts |
| Maximum output current | 4 A |
| Short circuit current | <0.3 A |
| Noise @ 1 A, AES17 | 30 μV, 3 μV A-weighted |
| Noise @ 1 A, 100 kHz bandwidth | 30 μV, 4 μV A-weighted |
| Noise @ 2 A, AES17 | 111 μV, 14 μV A-weighted |
| Noise @ 2 A, 100 kHz bandwidth | 111 μV, 14 μV A-weighted |
| Output impedance including cable | 0.22 Ohm |
| Load Regulation (0/1/2 A) | 3.63 % |
| Overload protection | > 5 A |
| Overheating protection | > 80 °C (176 °F) |
| Undervoltage detection | < 9.5 V |
