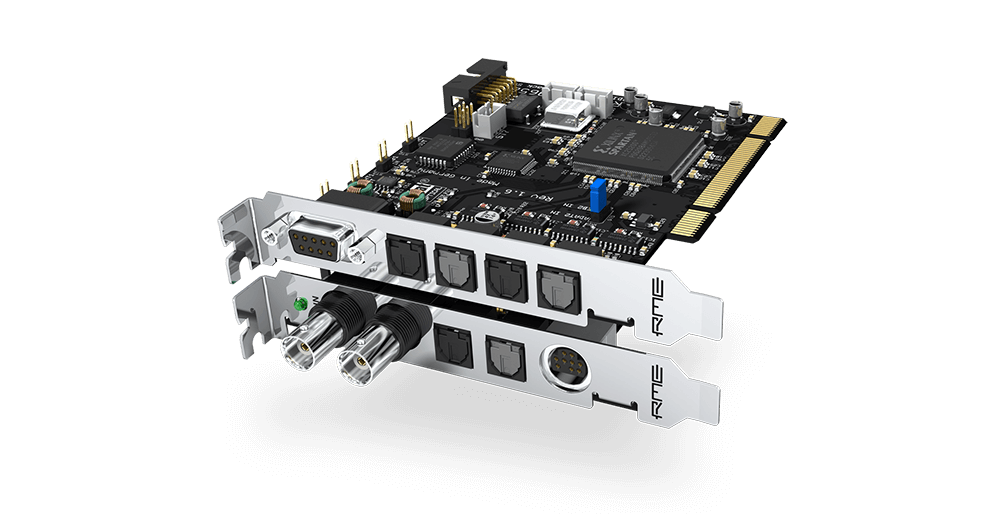

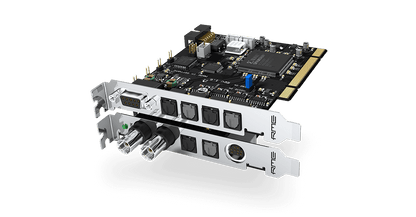

RME HDSP 9652 is a 52-Channel PCI Card with ADAT and SPDIF I/O. Connectivity covers 3 x ADAT I/O, 1 x SPDIF I/O, 2 x MIDI I/O, 1 x Word Clock I/O, 1 x TotalMix FX, 1 x ARC USB.
Studio-grade conversion and RME driver stability in one box.
Overview
HDSP 9652 - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions

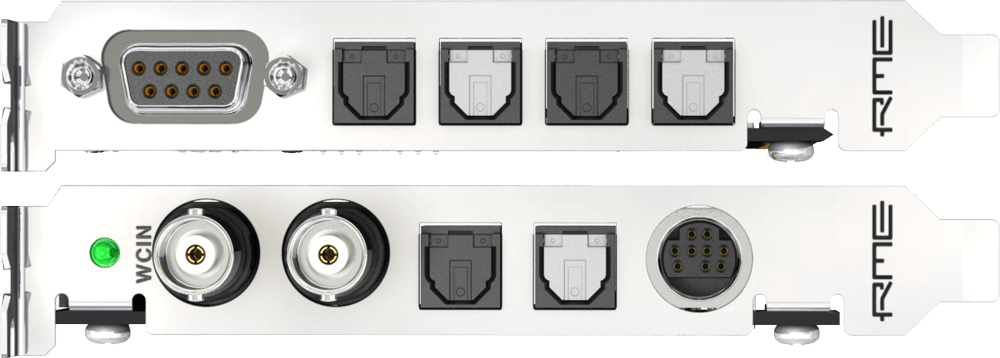

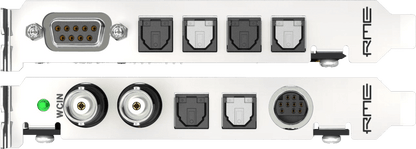

HDSP 9652 offers 3 x ADAT optical I/O, ADAT-Sync In, SPDIF I/O and word clock I/O. On top, there are 2 MIDI I/Os and TotalMix, a DSP-based real-time mixer/router, with hardware-calculated level metering and complete MIDI remote capability.
The HDSP 9652 also supports Expansion Boards (EXB). Two internal ADAT inputs and two internal ADAT outputs allow you to realize up to 16 analog inputs, 16 analog outputs, or up to two TDIF ports directly inside the computer.
At a Glance
| Type | Audio Interface |
| Description | 52-Channel PCI Card with ADAT and SPDIF I/O |
| Series | HDSP |
| Connectivity | 3 x ADAT I/O, 1 x SPDIF I/O, 2 x MIDI I/O, 1 x Word Clock I/O, 1 x TotalMix FX |
| Supported sample rates | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, variable |
| Availability | Sourced to order, call 844-687-4208 |
What Connections Does the HDSP 9652 Have?
HDSP 9652 carries the following connectivity, taken from RME's own specification for this model.
| ADAT I/O | 3 x |
| SPDIF I/O | 1 x |
| MIDI I/O | 2 x |
| Word Clock I/O | 1 x |
| TotalMix FX | 1 x |
| ARC USB | 1 x |
Who Is the HDSP 9652 For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Supported sample rates | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, variable |
| 8 buffer sizes/latencies available | 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms |
| ASIO zero CPU load technology | 0 (zero!)% CPU load when using ALL 52 channels! |
| Enhanced Mixed mode | All inputs and outputs simultaneously operational |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
