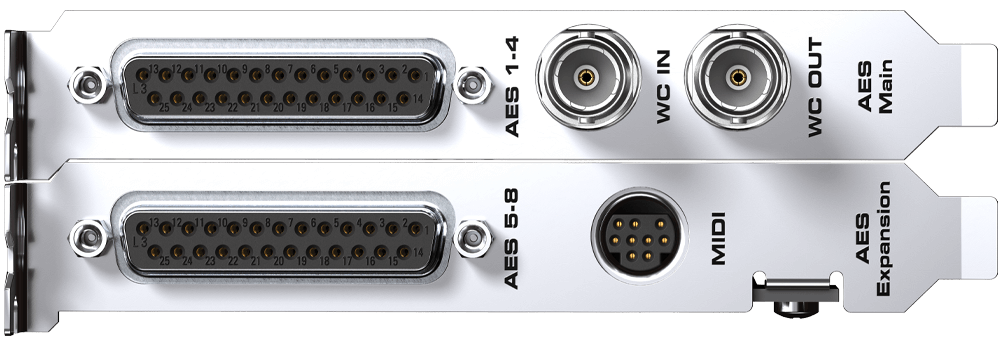

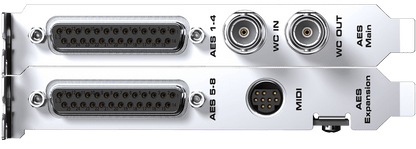

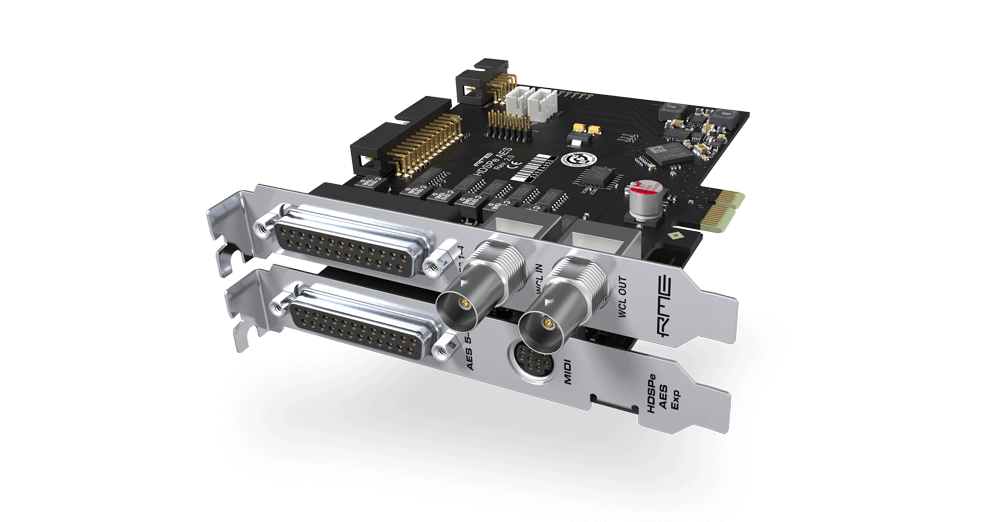

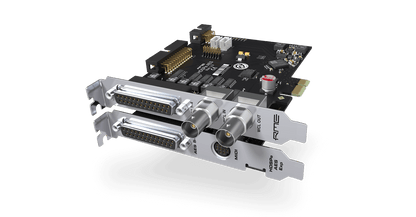

Name: RME HDSPe AES 32-Channel PCI Express Card
Brand: RME
SKU: HDSPe AES
Price: 1249.0 USD
Availability: InStock

{"id":7932848668723,"title":"RME HDSPe AES 32-Channel PCI Express Card","handle":"rme-hdspe-aes","description":"\u003cp\u003e\u003cstrong\u003eRME HDSPe AES\u003c\/strong\u003e is a 32-Channel AES\/EBU PCI Express Card. Connectivity covers 8 x AES\/EBU I\/O, 1 x Word Clock I\/O, 2 x MIDI I\/O, TotalMix FX, ARC USB.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eStudio-grade conversion and RME driver stability in one box.\u003c\/strong\u003e\u003c\/p\u003e\u003cp class=\"vmi-benefit-bar\"\u003eFree shipping · Free local pickup in Miami · Financing at checkout\u003c\/p\u003e\u003ch2\u003eOverview\u003c\/h2\u003e\u003cp\u003eHDSPe AES - RME Audio Interfaces | Format Converters | Preamps | Network Audio \u0026amp; MADI Solutions\u003c\/p\u003e\u003cp\u003eThe HDSPe AES is a short-length PCI Express card with AES\/EBU interfaces. It provides eight AES inputs (16 channels) and eight AES outputs (16 channels) at 192 kHz sample rate. The card is also equipped with two MIDI I\/O ports, word clock I\/O, and can be used with the optional TCO module for synchronization to LTC and video.\u003c\/p\u003e\u003cp\u003eKen 'Pooch' Van Druten has been a Producer \/ Engineer \/ Live Sound Engineer for 26 years. He graduated from Berklee College of Music, Magna Cum Laude, ...\u003c\/p\u003e\u003ch2\u003eAt a Glance\u003c\/h2\u003e\u003ctable\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eType\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eAudio Interface\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDescription\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32-Channel AES\/EBU PCI Express Card\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eHDSPe\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eConnectivity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e8 x AES\/EBU I\/O, 1 x Word Clock I\/O, 2 x MIDI I\/O, TotalMix FX, ARC USB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSample rates\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32 kHz up to 192 kHz, variable (Sync\/word clock)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSample rate range\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eAES: 28 kHz - 204 kHz, word clock: 28 kHz - 204 kHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAvailability\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSourced to order, call 844-687-4208\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/table\u003e\u003ch2\u003eWhat Connections Does the HDSPe AES Have?\u003c\/h2\u003e\u003cp\u003eHDSPe AES carries the following connectivity, taken from RME's own specification for this model.\u003c\/p\u003e\u003ctable\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAES\/EBU I\/O\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e8 x\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eWord Clock I\/O\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1 x\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMIDI I\/O\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e2 x\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTotalMix FX\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eARC USB\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/table\u003e\u003ch2\u003eWho Is the HDSPe AES For?\u003c\/h2\u003e\u003cp\u003eIt is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.\u003c\/p\u003e\u003ch2\u003eSpecifications\u003c\/h2\u003e\u003ctable\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAll settings\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003echangeable in real-time\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSync sources\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e8 x AES, word clock, internal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVaripitch\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eby input signal or word clock\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSample rates\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32 kHz up to 192 kHz, variable (Sync\/word clock)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSample rate range\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eAES: 28 kHz - 204 kHz, word clock: 28 kHz - 204 kHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eJitter\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u0026lt; 1 ns, internal and all inputs\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eJitter sensitivity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ePLL operates even at 100 ns Jitter without problems\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eComes with DIGICheck\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ethe ultimate measurement, analysis and test tool\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eInput word clock\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eBNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), termination via jumper\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOutput word clock\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eBNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMIDI input and output\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003evia four 5-pin DIN jacks\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/table\u003e\u003ch2\u003eWhy RME?\u003c\/h2\u003e\u003cp\u003eRME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.\u003c\/p\u003e\u003ch2\u003eFrequently Asked Questions\u003c\/h2\u003e\u003cp\u003e\u003cstrong\u003eIs this a genuine RME product?\u003c\/strong\u003e\u003cbr\u003eYes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eIs this covered by a warranty?\u003c\/strong\u003e\u003cbr\u003eYes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eHow quickly does this ship?\u003c\/strong\u003e\u003cbr\u003eThis item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eDo you offer local pickup?\u003c\/strong\u003e\u003cbr\u003eYes. Free local pickup is available at our Miami location once the item arrives.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eWhich operating systems are supported?\u003c\/strong\u003e\u003cbr\u003eRME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eCan you confirm compatibility with my existing system?\u003c\/strong\u003e\u003cbr\u003eYes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.\u003c\/p\u003e\u003ch2\u003eWhy Buy From Victory Musical Instruments?\u003c\/h2\u003e\u003cp\u003eVictory Musical Instruments is an authorized RME retailer based in Miami, Florida. Every unit ships new and sealed from the manufacturer with the full factory warranty intact. Our team answers the phone at 844-687-4208 and can help you spec a system, confirm compatibility, or arrange local pickup at our Miami location.\u003c\/p\u003e","published_at":"2026-08-26T15:32:13-04:00","created_at":"2026-08-26T15:32:12-04:00","vendor":"RME","type":"Audio Interface","tags":["AES\/EBU","Authorized Retailer","HDSPe","Internal Audio Card","Miami","PCIe Card","RME","specialorder","supplier:Synthax","Veteran Owned"],"price":124900,"price_min":124900,"price_max":124900,"available":true,"price_varies":false,"compare_at_price":144900,"compare_at_price_min":144900,"compare_at_price_max":144900,"compare_at_price_varies":false,"variants":[{"id":44782503919667,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"HDSPe AES","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RME HDSPe AES 32-Channel PCI Express Card","public_title":null,"options":["Default Title"],"price":124900,"weight":0,"compare_at_price":144900,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.victorymusical.com\/cdn\/shop\/files\/HDSP-AES.png?v=1787772739","\/\/www.victorymusical.com\/cdn\/shop\/files\/HDSP-AES-C.png?v=1787772739"],"featured_image":"\/\/www.victorymusical.com\/cdn\/shop\/files\/HDSP-AES.png?v=1787772739","options":["Title"],"media":[{"alt":"RME HDSPe AES 32-Channel PCI Express Card, product image","id":28795330330675,"position":1,"preview_image":{"aspect_ratio":1.916,"height":522,"width":1000,"src":"\/\/www.victorymusical.com\/cdn\/shop\/files\/HDSP-AES.png?v=1787772739"},"aspect_ratio":1.916,"height":522,"media_type":"image","src":"\/\/www.victorymusical.com\/cdn\/shop\/files\/HDSP-AES.png?v=1787772739","width":1000},{"alt":"RME HDSPe AES 32-Channel PCI Express Card, product image","id":28795330363443,"position":2,"preview_image":{"aspect_ratio":2.793,"height":358,"width":1000,"src":"\/\/www.victorymusical.com\/cdn\/shop\/files\/HDSP-AES-C.png?v=1787772739"},"aspect_ratio":2.793,"height":358,"media_type":"image","src":"\/\/www.victorymusical.com\/cdn\/shop\/files\/HDSP-AES-C.png?v=1787772739","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cstrong\u003eRME HDSPe AES\u003c\/strong\u003e is a 32-Channel AES\/EBU PCI Express Card. Connectivity covers 8 x AES\/EBU I\/O, 1 x Word Clock I\/O, 2 x MIDI I\/O, TotalMix FX, ARC USB.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eStudio-grade conversion and RME driver stability in one box.\u003c\/strong\u003e\u003c\/p\u003e\u003cp class=\"vmi-benefit-bar\"\u003eFree shipping · Free local pickup in Miami · Financing at checkout\u003c\/p\u003e\u003ch2\u003eOverview\u003c\/h2\u003e\u003cp\u003eHDSPe AES - RME Audio Interfaces | Format Converters | Preamps | Network Audio \u0026amp; MADI Solutions\u003c\/p\u003e\u003cp\u003eThe HDSPe AES is a short-length PCI Express card with AES\/EBU interfaces. It provides eight AES inputs (16 channels) and eight AES outputs (16 channels) at 192 kHz sample rate. The card is also equipped with two MIDI I\/O ports, word clock I\/O, and can be used with the optional TCO module for synchronization to LTC and video.\u003c\/p\u003e\u003cp\u003eKen 'Pooch' Van Druten has been a Producer \/ Engineer \/ Live Sound Engineer for 26 years. He graduated from Berklee College of Music, Magna Cum Laude, ...\u003c\/p\u003e\u003ch2\u003eAt a Glance\u003c\/h2\u003e\u003ctable\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eType\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eAudio Interface\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDescription\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32-Channel AES\/EBU PCI Express Card\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eHDSPe\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eConnectivity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e8 x AES\/EBU I\/O, 1 x Word Clock I\/O, 2 x MIDI I\/O, TotalMix FX, ARC USB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSample rates\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32 kHz up to 192 kHz, variable (Sync\/word clock)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSample rate range\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eAES: 28 kHz - 204 kHz, word clock: 28 kHz - 204 kHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAvailability\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSourced to order, call 844-687-4208\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/table\u003e\u003ch2\u003eWhat Connections Does the HDSPe AES Have?\u003c\/h2\u003e\u003cp\u003eHDSPe AES carries the following connectivity, taken from RME's own specification for this model.\u003c\/p\u003e\u003ctable\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAES\/EBU I\/O\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e8 x\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eWord Clock I\/O\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1 x\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMIDI I\/O\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e2 x\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTotalMix FX\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eARC USB\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/table\u003e\u003ch2\u003eWho Is the HDSPe AES For?\u003c\/h2\u003e\u003cp\u003eIt is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.\u003c\/p\u003e\u003ch2\u003eSpecifications\u003c\/h2\u003e\u003ctable\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAll settings\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003echangeable in real-time\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSync sources\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e8 x AES, word clock, internal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVaripitch\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eby input signal or word clock\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSample rates\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32 kHz up to 192 kHz, variable (Sync\/word clock)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSample rate range\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eAES: 28 kHz - 204 kHz, word clock: 28 kHz - 204 kHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eJitter\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u0026lt; 1 ns, internal and all inputs\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eJitter sensitivity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ePLL operates even at 100 ns Jitter without problems\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eComes with DIGICheck\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ethe ultimate measurement, analysis and test tool\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eInput word clock\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eBNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), termination via jumper\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOutput word clock\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eBNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMIDI input and output\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003evia four 5-pin DIN jacks\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/table\u003e\u003ch2\u003eWhy RME?\u003c\/h2\u003e\u003cp\u003eRME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.\u003c\/p\u003e\u003ch2\u003eFrequently Asked Questions\u003c\/h2\u003e\u003cp\u003e\u003cstrong\u003eIs this a genuine RME product?\u003c\/strong\u003e\u003cbr\u003eYes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eIs this covered by a warranty?\u003c\/strong\u003e\u003cbr\u003eYes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eHow quickly does this ship?\u003c\/strong\u003e\u003cbr\u003eThis item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eDo you offer local pickup?\u003c\/strong\u003e\u003cbr\u003eYes. Free local pickup is available at our Miami location once the item arrives.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eWhich operating systems are supported?\u003c\/strong\u003e\u003cbr\u003eRME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eCan you confirm compatibility with my existing system?\u003c\/strong\u003e\u003cbr\u003eYes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.\u003c\/p\u003e\u003ch2\u003eWhy Buy From Victory Musical Instruments?\u003c\/h2\u003e\u003cp\u003eVictory Musical Instruments is an authorized RME retailer based in Miami, Florida. Every unit ships new and sealed from the manufacturer with the full factory warranty intact. Our team answers the phone at 844-687-4208 and can help you spec a system, confirm compatibility, or arrange local pickup at our Miami location.\u003c\/p\u003e"}

Type	Audio Interface
Description	32-Channel AES/EBU PCI Express Card
Series	HDSPe
Connectivity	8 x AES/EBU I/O, 1 x Word Clock I/O, 2 x MIDI I/O, TotalMix FX, ARC USB
Sample rates	32 kHz up to 192 kHz, variable (Sync/word clock)
Sample rate range	AES: 28 kHz - 204 kHz, word clock: 28 kHz - 204 kHz
Availability	Sourced to order, call 844-687-4208

All settings	changeable in real-time
Sync sources	8 x AES, word clock, internal
Varipitch	by input signal or word clock
Sample rates	32 kHz up to 192 kHz, variable (Sync/word clock)
Sample rate range	AES: 28 kHz - 204 kHz, word clock: 28 kHz - 204 kHz
Jitter	< 1 ns, internal and all inputs
Jitter sensitivity	PLL operates even at 100 ns Jitter without problems
Comes with DIGICheck	the ultimate measurement, analysis and test tool
Input word clock	BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), termination via jumper
Output word clock	BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
MIDI input and output	via four 5-pin DIN jacks

Item added to your cart

RME HDSPe AES 32-Channel PCI Express Card

RME HDSPe AES 32-Channel PCI Express Card

Backed by us. Trusted by you.

Overview

At a Glance

What Connections Does the HDSPe AES Have?

Who Is the HDSPe AES For?

Specifications

Why RME?

Frequently Asked Questions

Why Buy From Victory Musical Instruments?

Customer Reviews

Sign Up for Our Newsletter & Enjoy an Exclusive 5% Discount!

AES/EBU I/O	8 x
Word Clock I/O	1 x
MIDI I/O	2 x
TotalMix FX	Yes
ARC USB	Yes
