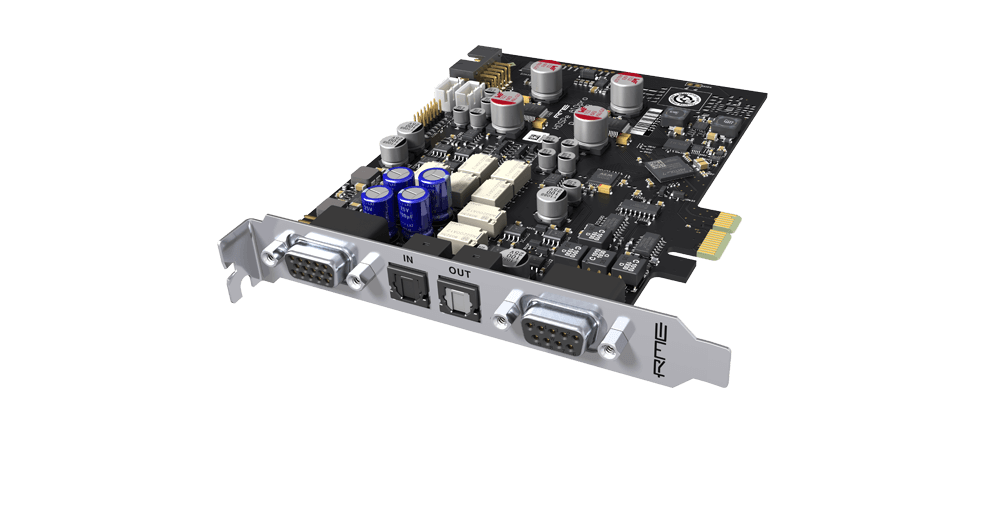

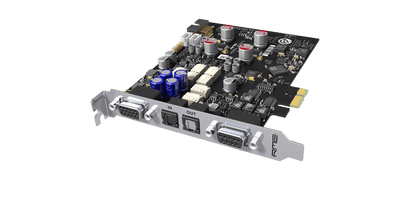

RME HDSPe AIO Pro is a 30-Channel PCI Express Card with Multi-Format I/O. Connectivity covers 1 x Stereo Analog I/O, 1 x ADAT I/O, 1 x SPDIF I/O, 1 x AES/EBU I/O, 1 x Phones Output, 1 x MIDI I/O.
Studio-grade conversion and RME driver stability in one box.
Overview
HDSPe AIO Pro - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
RME introduces the HDSPe AIO Pro PCI Express interface card, the successor of the popular HDSPe AIO. The Pro version provides professional users in the fields of studio and broadcast with the same high channel count as well as analog/digital input and output variety of the HDSPe AIO. In terms of technical features RME has completely reworked the HDSPe AIO Pro, defining the current state-of-the-art in PCI Express cards.
All inputs and outputs are simultaneously operational, even SPDIF (phono) and AES/EBU (XLR). Of course TotalMix, the unsurpassed flexible routing mixer and SteadyClock FS, RME's sensational clock technology with maximum jitter suppression of external clock signals, are on board too. HDSPe AIO Pro also supports the optional TCO for synchronization to timecode (LTC/video).
At a Glance
| Type | Audio Interface |
| Description | 30-Channel PCI Express Card with Multi-Format I/O |
| Series | HDSPe |
| Connectivity | 1 x Stereo Analog I/O, 1 x ADAT I/O, 1 x SPDIF I/O, 1 x AES/EBU I/O, 1 x Phones Output |
| Availability | Sourced to order, call 844-687-4208 |

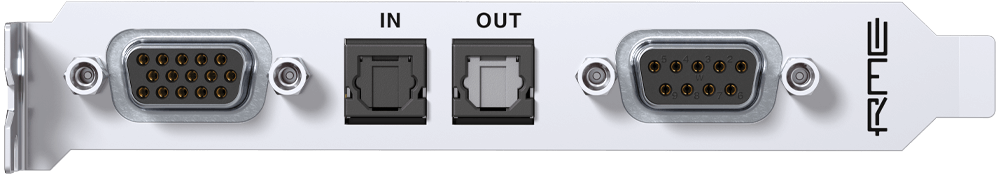

What Connections Does the HDSPe AIO Pro Have?
HDSPe AIO Pro carries the following connectivity, taken from RME's own specification for this model.
| Stereo Analog I/O | 1 x |
| ADAT I/O | 1 x |
| SPDIF I/O | 1 x |
| AES/EBU I/O | 1 x |
| Phones Output | 1 x |
| MIDI I/O | 1 x |
| TotalMix FX | Yes |
| ARC USB | Yes |
Who Is the HDSPe AIO Pro For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Input | Cinch (RCA), unbalanced |
| Input impedance | 18 kOhm |
| Signal to Noise ratio (SNR) @ +19/24 dBu | 117 dB RMS unweighted, 120 dBA |
| Signal to Noise ratio (SNR) @ +13 dBu | 116 dB RMSu nweighted, 118 dBA |
| Signal to Noise ratio (SNR) @ +4 dBu | 112 dB RMSu nweighted, 114 dBA |
| Frequency response @ 44,1 kHz, -0,1 dB | 7 Hz - 20.5 kHz |
| Frequency response @ 96 kHz, -0,5 dB | 3 Hz - 45,5 kHz |
| Frequency response @ 192 kHz, -1 dB | 2 Hz - 92 kHz |
| THD @ -1 dBFS | -114 dB, 0,0002 % |
| THD+N @ -1 dBFS | -110 dB, 0,0003 % |
| Channel separation | > 110 dB |
| Input | XLR, servo-balanced |
| Input impedance balanced | 36 kOhm, unbalanced: 18 kOhm |
| Signal to Noise ratio(SNR) @ +4 dBu | 116 dB RMS unweighted, 118 dBA |
| Output | Cinch (RCA), unbalanced |
| Output impedance+19/+13 dBu | 75 Ohm. +4/-2 dBu: 80 Ohm |
| Signal to Noise ratio (SNR) @ +19 dBu | 117 dB RMS unweighted, 119 dBA |
| Signal to Noise ratio (SNR) @ +13 dBu | 116 dB RMS unweighted, 118 dBA |
| Signal to Noise ratio (SNR) @ +4 dBu | 114 dB RMS unweighted, 116 dBA |
| Signal to Noise ratio (SNR) @ -2 dBu | 110 dB RMS unweighted, 112 dBA |
| Frequency response @ 44.1 kHz, -0,1 dB | 10 Hz - 20,2 kHz |
| Frequency response @ 96 kHz, -0,5 dB | 4 Hz - 44,6 kHz |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
