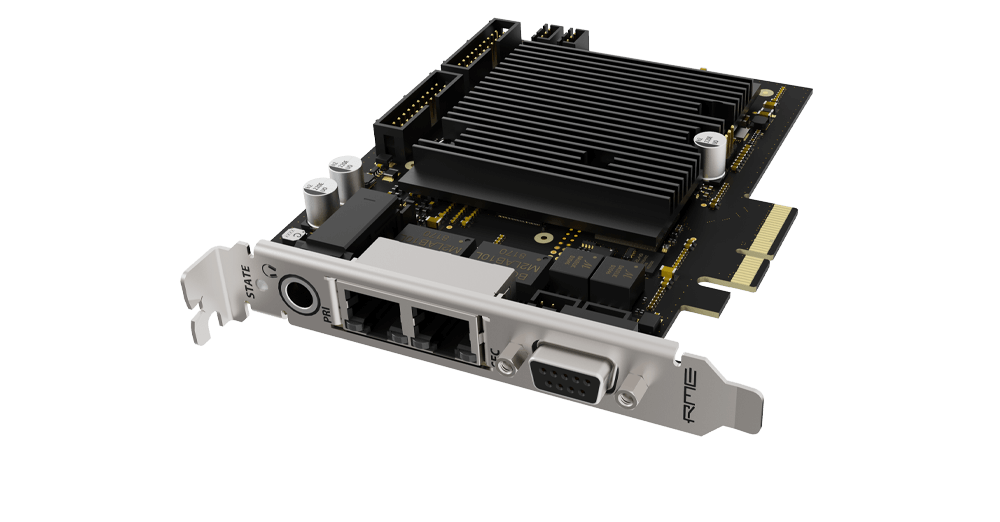

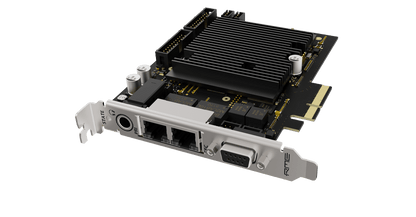

RME HDSPe AoX-M is a PCI Express card for Milan and AVB network audio. Connectivity covers 2 x Gigabit Ethernet (802.3 compliant), 1 x AES/EBU I/O, 1 x Phones Output, 1 x MIDI I/O, TotalMix FX, ARC USB.
Studio-grade conversion and RME driver stability in one box.
Overview
HDSPe AoX-M - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
The HDSPe AoX PCIe x4 audio interface cards combine dual network ports with headphone output, AES3, MIDI, and internal expansion headers for up to four MADI ports. Whether used in a Thunderbolt™ expansion chassis or built into DAWs or audio processors, these cards send and receive up to 512 channels of audio and provide numerous mixing and routing capabilities.
Occupying only a single slot, the PCIe x4 interface transmits and receives up to 512 channels of network audio signals on two separate RJ45 connectors. The network audio channels can partially be replaced (or extended in case of the Milan® version) with MADI signals by adding up to two optional dual optical or dual coaxial extension cards. It is therefore possible to integrate four MADI input signals, four MADI output signals plus up to 256 network audio channels per direction within a single audio interface for the first time - on macOS and Windows.
At a Glance
| Type | Audio Interface |
| Description | PCI Express card for Milan and AVB network audio |
| Series | HDSPe |
| Connectivity | 2 x Gigabit Ethernet (802.3 compliant), 1 x AES/EBU I/O, 1 x Phones Output, 1 x MIDI I/O, TotalMix FX |
| Availability | Sourced to order, call 844-687-4208 |

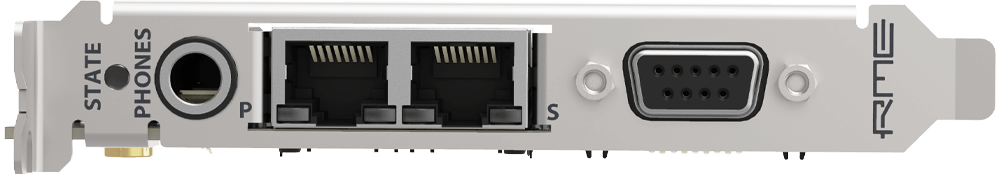

What Connections Does the HDSPe AoX-M Have?
HDSPe AoX-M carries the following connectivity, taken from RME's own specification for this model.
| Gigabit Ethernet (802.3 compliant) | 2 x |
| AES/EBU I/O | 1 x |
| Phones Output | 1 x |
| MIDI I/O | 1 x |
| TotalMix FX | Yes |
| ARC USB | Yes |
Who Is the HDSPe AoX-M For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| DIGICheck DSP | Level meter in hardware, peak- and RMS calculation |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
