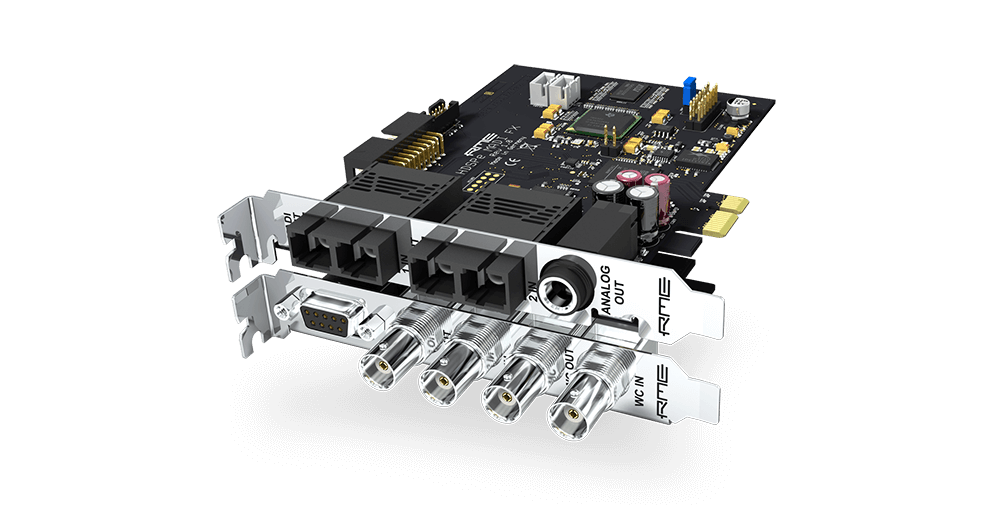

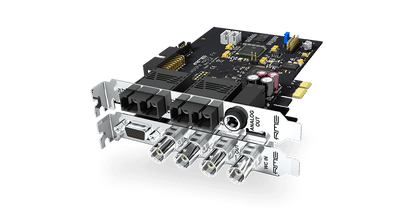

RME HDSPe MADI FX is a 390-Channel Triple MADI PCI Express Card. Connectivity covers 2 x MADI optical I/O, 1 x MADI I/O coaxial, 1 x AES/EBU I/O, 1 x Phones Output, 1 x Word Clock I/O, 4 x MIDI I/O.
Studio-grade conversion and RME driver stability in one box.
Overview
HDSPe MADI FX - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
The HDSPe MADI FX marks a new milestone both in the history of audio interface cards in the past two decades and within the long series of outstanding RME devices. Never before has such a high-performance multi-channel audio system existed.
Front of house engineer Antony King mixing success was found in the MADIface XT and HDSPe MADI FX.
At a Glance
| Type | Audio Interface |
| Description | 390-Channel Triple MADI PCI Express Card |
| Series | HDSPe |
| Connectivity | 2 x MADI optical I/O, 1 x MADI I/O coaxial, 1 x AES/EBU I/O, 1 x Phones Output, 1 x Word Clock I/O |
| Sample rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (Sync/word clock) |
| Sample rate range | MADI: 32 kHz - 96 kHz, word clock: 27 kHz - 200 kHz |
| Availability | Sourced to order, call 844-687-4208 |

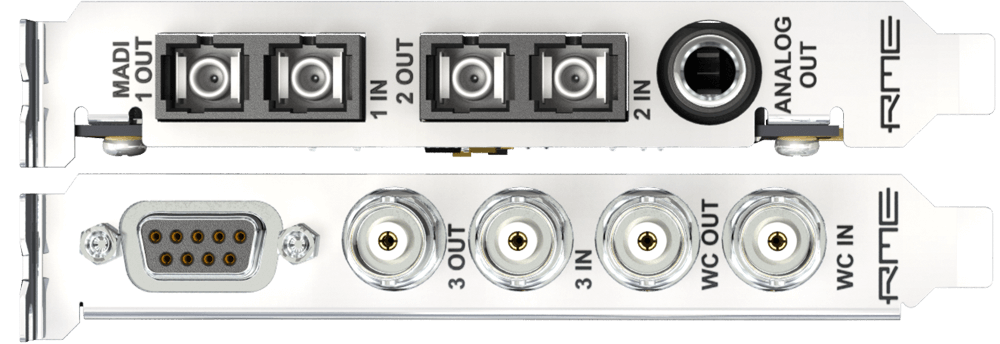

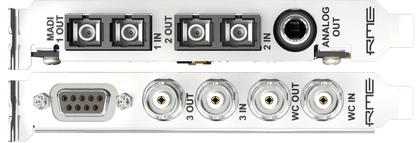

What Connections Does the HDSPe MADI FX Have?
HDSPe MADI FX carries the following connectivity, taken from RME's own specification for this model.
| MADI optical I/O | 2 x |
| MADI I/O coaxial | 1 x |
| AES/EBU I/O | 1 x |
| Phones Output | 1 x |
| Word Clock I/O | 1 x |
| MIDI I/O | 4 x |
| TotalMix FX | Yes |
| ARC USB | Yes |
Who Is the HDSPe MADI FX For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Sync sources | MADI coaxial, MADI optical, AES/EBU, word clock, internal |
| Varipitch | by input signal or word clock |
| Sample rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (Sync/word clock) |
| Sample rate range | MADI: 32 kHz - 96 kHz, word clock: 27 kHz - 200 kHz |
| Jitter | < 1 ns, internal and all inputs |
| Jitter sensitivity | PLL operates even at 100 ns Jitter without problems |
| Comes with DIGICheck | the ultimate measurement, analysis and test tool |
| Input word clock | Signal Adaptation Circuit (functional from 1.2 Vpp input signal), switchable termination |
| Output word clock | BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof |
| MIDI input and output | via two 5-pin DIN jacks |
| Signal-to-Noise (DR) | 110 dB RMS unweighted, 113 dBA @ 44.1 kHz |
| Channel separation | > 100 dB |
| Output | 6.3 mm TRS |
| Output impedance | 75 Ohm |
| Output level at 0 dBFS | +13 dBu |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
