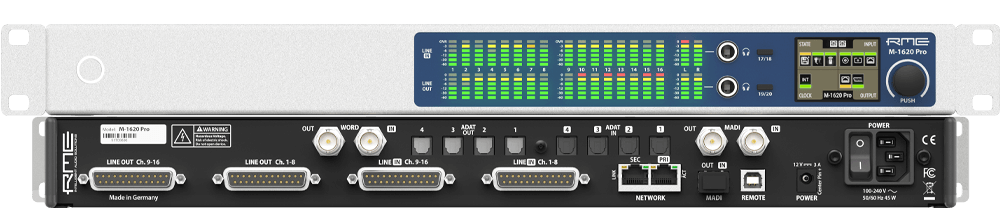

RME M-1620 Pro is a 16 channel A/D, 20 channel D/A converter with ADAT, Milan®, MADI. Connectivity covers 16 x Line Input, 16 x Line Output, 2 x Phones Output, 4 x ADAT I/O, 1 x MADI Optical SFP (optional), 1 x Redundant PSU (optional).
Transparent RME preamps placed where the sources are, controlled from anywhere.
Overview
16 channel A/D, 20 channel D/A converter with ADAT, Milan, MADI and separate phones out - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
The RME M-1620 Pro converts 16 analog line-level signals (per channel switchable up to +24 dBu) to and from MADI, ADAT and Milan network technology. This innovative unit is designed with a newly developed front panel that combines LED level meters with a display and includes two separate headphone outputs for monitoring - all within a single-height 19-inch rack device. Cutting-edge converters and flexible internal routing place it at the forefront of any audio network.
Insights into the structure and operation of a modern studio that specializes in Atmos productions with excellent technology, infrastructure and acoustics.
At a Glance
| Type | Microphone Preamp |
| Description | 16 channel A/D, 20 channel D/A converter with ADAT, Milan®, MADI |
| Series | M-Series |
| Connectivity | 16 x Line Input, 16 x Line Output, 2 x Phones Output, 4 x ADAT I/O, 1 x MADI Optical SFP (optional) |
| Resolution | 24 bit |
| Resolution | 24 Bit |
| Availability | Sourced to order, call 844-687-4208 |
What Connections Does the M-1620 Pro Have?
M-1620 Pro carries the following connectivity, taken from RME's own specification for this model.
| Line Input | 16 x |
| Line Output | 16 x |
| Phones Output | 2 x |
| ADAT I/O | 4 x |
| MADI Optical SFP (optional) | 1 x |
| Redundant PSU (optional) | 1 x |
| Word Clock I/O | 1 x |
Who Is the M-1620 Pro For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Resolution | 24 bit |
| Signal to Noise ratio (SNR) @ +24 dBu, 44.1 kHz | 117.0 dB RMS unweighted, 120.7 dBA |
| Signal to Noise ratio (SNR) @ +19 dBu | 116.3 dB RMS unweighted, 119.9 dBA |
| Signal to Noise ratio (SNR) @ +13 dBu | 114.7 dB RMS unweighted, 118.3 dBA |
| Frequency response @ 44.1 kHz, -0.1 dB | 5 Hz - 20.5 kHz |
| THD @ -1 dBFS | < -111 dB, < 0.00029% |
| THD+N @ -1 dBFS | < -108 dB, < 0.00039 % |
| Channel separation | > 110 dB |
| Output impedance | 200 Ohm balanced, 100 Ohm unbalanced |
| Signal to Noise Ratio (SNR) @ 13 dBu | 119.2 dB RMS unweighted |
| Signal to Noise Ratio (SNR) @ 19 dBu | 119.7 dB RMS unweighted |
| Signal to Noise Ratio (SNR) @ 24 dBu | 119.9 dB RMS unweighted |
| Frequency response @ 44.1 kHz, -0.1 dB | 0 Hz - 20.3 kHz (Sharp Filter, default) |
| Frequency response @ 96 kHz, -0.1 dB | 0 Hz - 30 kHz (Slow Filter, default) |
| Frequency response @ 96 kHz, -0.1 dB | 0 Hz - 44.1 kHz (Sharp Filter) |
| Frequency response @ 192 kHz, -0.1 dB | 0 Hz - 60.5 kHz (Slow Filter, default) |
| Frequency response @ 192 kHz, -0.1 dB | 0 Hz - 85 kHz (Sharp Filter) |
| THD @ 19 dBu | < -120 dB, < 0.0001 % |
| THD+N @ 19 dBu | < -113 dB, < 0.0002 % |
| Resolution | 24 Bit |
| Output | 6.3 mm TRS stereo (unbalanced) or mono (balanced) jack |
| Signal to Noise Ratio (SNR) @ 19 dBu | > 109 dB RMS unweighted, > 111 dB(A) |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
