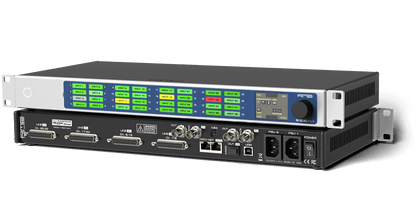

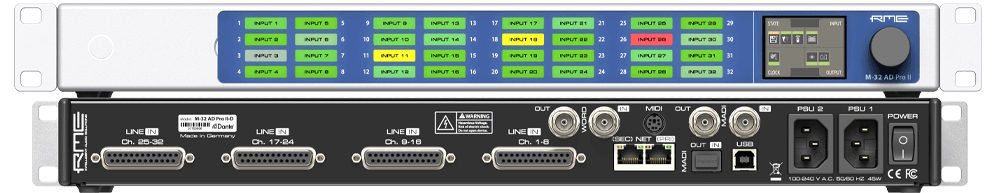

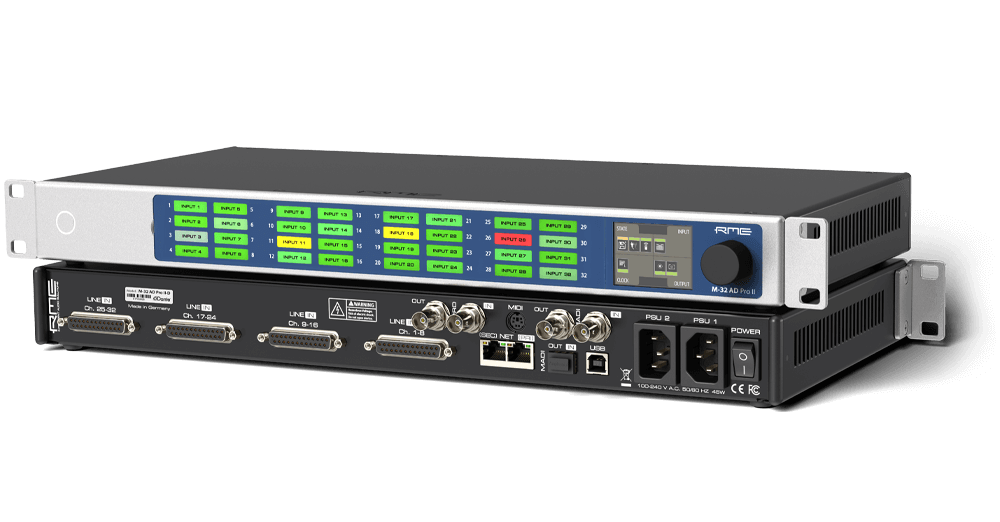

RME M-32 AD Pro II Dante is a high-end 32-channel 192 kHz AD converter with MADI and Dante. Connectivity covers 32 x Analog I/O, 1 x MADI Optical SFP (optional), 1 x MADI I/O coaxial, 1 x Word Clock I/O, 1 x MIDI I/O, 2 x Gigabit Ethernet (802.3 compliant).
Reference conversion built to run for years without attention.
Overview
M-32 AD Pro II-D / M-32 DA Pro II-D Converter with MADI & DANTE - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
The M-32 Pro II series is designed to meet the demanding requirements of professional studios, immersive sound installations, live sound systems, and industrial applications that need a reliable solution for analog conversion with high-end network audio processing. These new converters are available with either 32 analog inputs or outputs, and either with Dante® or AVB for a choice of four different models.
Boasting up to 32-channels, fully equipped MADI I/Os (coaxial & optical via optional SPF module), improved specs with extremely low THD values, intelligent channel routing and innovative usability, the brand-new M-32 Pro II Series truly represents the state-of-the art in exceptional audio performance.
At a Glance
| Type | Audio Converter |
| Description | high-end 32-channel 192 kHz AD converter with MADI and Dante |
| Series | M-Series |
| Connectivity | 32 x Analog I/O, 1 x MADI Optical SFP (optional), 1 x MADI I/O coaxial, 1 x Word Clock I/O, 1 x MIDI I/O |
| Resolution | 24 bit |
| Availability | Sourced to order, call 844-687-4208 |
What Connections Does the M-32 AD Pro II Dante Have?
M-32 AD Pro II Dante carries the following connectivity, taken from RME's own specification for this model.
| Analog I/O | 32 x |
| MADI Optical SFP (optional) | 1 x |
| MADI I/O coaxial | 1 x |
| Word Clock I/O | 1 x |
| MIDI I/O | 1 x |
| Gigabit Ethernet (802.3 compliant) | 2 x |
| USB for firmware & remote control | Yes |
Who Is the M-32 AD Pro II Dante For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Resolution | 24 bit |
| Signal to Noise ratio (SNR) @ +24 dBu, 44.1 kHz | 117.0 dB RMS unweighted, 120.7 dBA |
| Signal to Noise ratio (SNR) @ +19 dBu | 116.3 dB RMS unweighted, 119.9 dBA |
| Signal to Noise ratio (SNR) @ +13 dBu | 114.7 dB RMS unweighted, 118.3 dBA |
| Frequency response @ 44.1 kHz, -0.1 dB | 5 Hz - 20.5 kHz |
| THD @ -1 dBFS | < -111 dB, < 0.00029% |
| THD+N @ -1 dBFS | < -108 dB, < 0.00039 % |
| Channel separation | > 110 dB |
| Output impedance | 200 Ohm balanced, 100 Ohm unbalanced |
| Signal to Noise Ratio (SNR) @ 13 dBu | 116.0 dB RMS unweighted, 119.0 dB(A) |
| Signal to Noise Ratio (SNR) @ 19 dBu | 116.3 dB RMS unweighted, 119.3 dB(A) |
| Signal to Noise Ratio (SNR) @ 24 dBu | 116.5 dB RMS unweighted, 119.8 dB(A) |
| Frequency response @ 44.1 kHz, -0.1 dB | 0 Hz - 22 kHz |
| THD @ -1 dBFS | < -113 dB, < 0.00022 % |
| THD+N @ -1 dBFS | < -111 dB, < 0.00028 % |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
