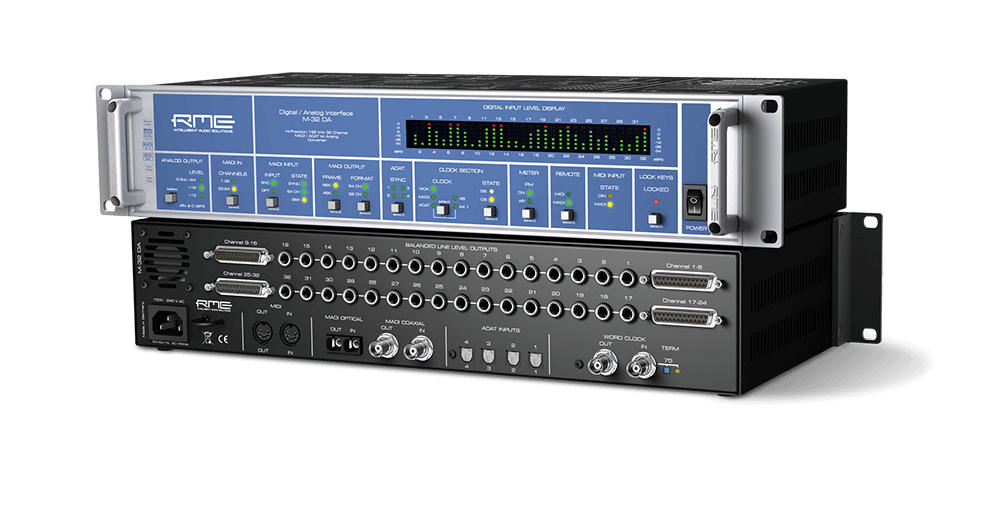

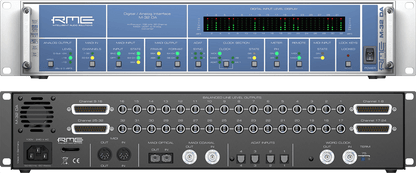

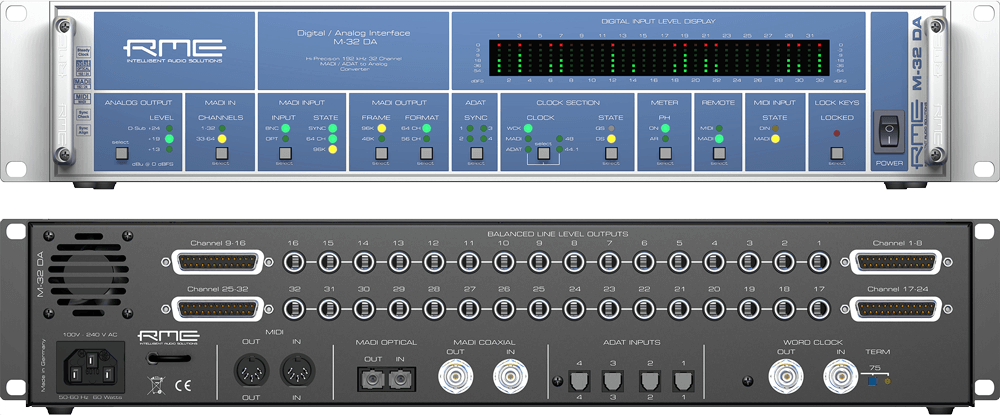

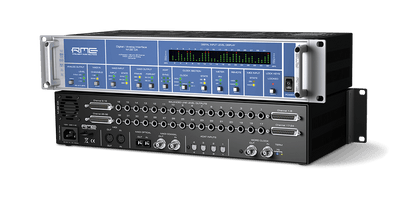

RME M-32 DA is a 32-channel 192 kHz DA converter with MADI and ADAT. Connectivity covers 32 x Line Output, 1 x MADI optical I/O, 4 x ADAT I/O, 1 x Word Clock I/O, 1 x MIDI I/O.
Reference conversion built to run for years without attention.
Overview
M-32 / M-16 DA - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
RME's M-32 DA is a 32-channel high-end DA converter, easy to operate yet having a comprehensive feature set. The unit combines excellent analog circuit design with the latest converter chips and RME's superior SteadyClock, resulting in a state-of-the-art DA conversion - not less than 32 times!
Erkan Altinok is a well-known sound editor, sounddesigner, re-recording mixer and film mixing engineer. He runs his own studio and has been involved...
At a Glance
| Type | Audio Converter |
| Description | 32-channel 192 kHz DA converter with MADI and ADAT |
| Series | M-Series |
| Connectivity | 32 x Line Output, 1 x MADI optical I/O, 4 x ADAT I/O, 1 x Word Clock I/O, 1 x MIDI I/O |
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC) |
| Power supply | Internal switching mode PS, 100V - 240V AC, 60 Watt |
| Dimensions | (WxHxD) 483 x 88 x 200 mm |
| Availability | Sourced to order, call 844-687-4208 |
What Connections Does the M-32 DA Have?
M-32 DA carries the following connectivity, taken from RME's own specification for this model.
| Line Output | 32 x |
| MADI optical I/O | 1 x |
| ADAT I/O | 4 x |
| Word Clock I/O | 1 x |
| MIDI I/O | 1 x |
Who Is the M-32 DA For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Input DA | 4 x ADAT optical, 1 x MADI optical/coaxial |
| Output DA | 1/4" TRS jack servo balanced, up to +21 dBu. 25 pin D-sub, balanced, up to +24 dBu |
| Dynamic Range DA (SNR) | 114 dB RMS unweighted, 118 dBA |
| THD DA | < -104 dB (< 0.00063%) |
| THD+N DA | < -100 dB (< 0.001%) |
| Crosstalk DA | > 110 dB |
| Frequency response DA, -0.5 dB | 5 Hz - 22 kHz (sf 48 kHz) |
| Frequency response DA, -0.5 dB | < 5 Hz - 34 kHz (sf 96 kHz) |
| Frequency response DA, -1 dB | < 5 Hz - 50 kHz (sf 192 kHz) |
| Input level for 0 dBFS | +24 dBu, +19 dBu, +13 dBu |
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC) |
| Jitter | Typical < 1 ns for internal, Word Clock, ADAT and MADI input |
| Jitter suppression | >30 dB (2.4 kHz) |
| Jitter sensitivity | all PLLs operate error-free even at 100 ns |
| Power supply | Internal switching mode PS, 100V - 240V AC, 60 Watt |
| Dimensions | (WxHxD) 483 x 88 x 200 mm |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
