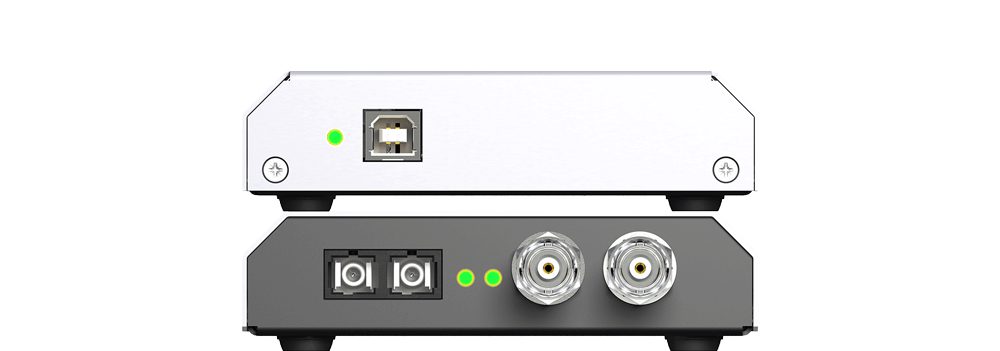

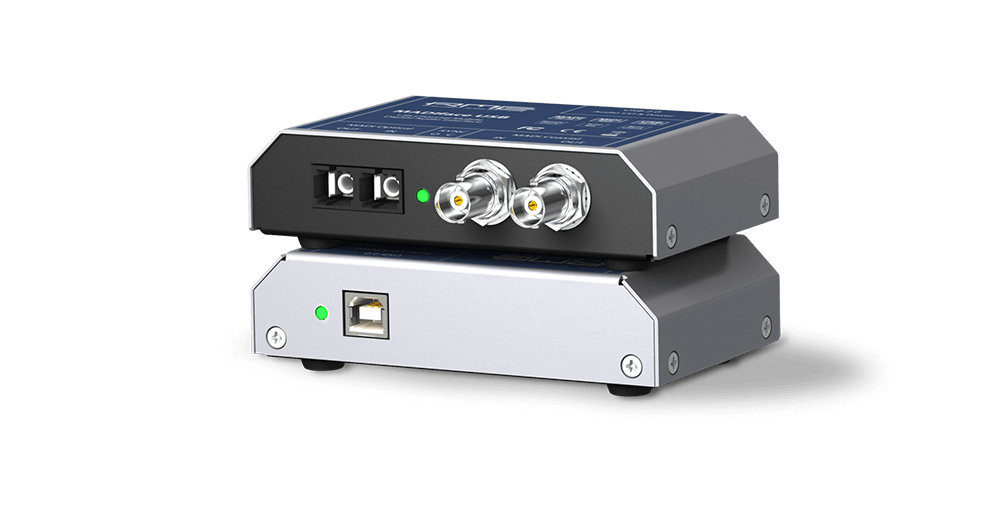

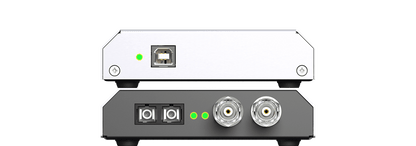

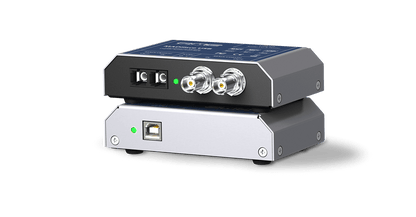

RME MADIface USB is a 128-Channel mobile MADI USB 2.0 Audio Interface. Connectivity covers 1 x MADI optical I/O, 1 x MADI I/O coaxial, 1 x Word Clock In, 1 x AES In over BNC, 1 x MIDI over MADI, 1 x ARC USB.
Studio-grade conversion and RME driver stability in one box.
Overview
MADIface USB - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
Mixer, router, format converter, stream splitter, signal repeater - the MADIface USB is a perfect addition to any MADI system. Clock sources can be selected via MADI, AES or Word Clock. You can use it to create redundancy, for automatic failover, and even for creating mixes with extremely low latency between the optical, coaxial and USB 2.0 audio inputs altogether! The MADIface USB can be easily integrated into a broad range of applications.
GIANNI is a musical theatre which premiered on October 1st 2016 at the Tischlerei of the Deutsche Oper Berlin.
At a Glance
| Type | Audio Interface |
| Description | 128-Channel mobile MADI USB 2.0 Audio Interface |
| Series | MADIface |
| Connectivity | 1 x MADI optical I/O, 1 x MADI I/O coaxial, 1 x Word Clock In, 1 x AES In over BNC, 1 x MIDI over MADI |
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/DDS) |
| Availability | Sourced to order, call 844-687-4208 |
What Connections Does the MADIface USB Have?
MADIface USB carries the following connectivity, taken from RME's own specification for this model.
| MADI optical I/O | 1 x |
| MADI I/O coaxial | 1 x |
| Word Clock In | 1 x |
| AES In over BNC | 1 x |
| MIDI over MADI | 1 x |
| ARC USB | 1 x |
| TotalMix FX | Yes |
| R | Yes |
Who Is the MADIface USB For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Inputs/Outputs | 2 x MADI I/O, optical and coaxial (BNC) |
| MIDI input and output | via virtual MIDI port |
| Clock modes | master (internal) and slave (MADI input) |
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/DDS) |
| Jitter | < 1 ns, internal and all inputs |
| Jitter sensitivity | PLL operates even at 100 ns Jitter |
| TotalMix | 2048 channel mixer with 48-bit internal resolution |
| TotalMix | latency-free submixes and perfect ASIO Direct Monitoring |
| Interface | USB 2.0, bus-powered |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
Why Buy From Victory Musical Instruments?
Victory Musical Instruments is an authorized RME retailer based in Miami, Florida. Every unit ships new and sealed from the manufacturer with the full factory warranty intact. Our team answers the phone at 844-687-4208 and can help you spec a system, confirm compatibility, or arrange local pickup at our Miami location.
