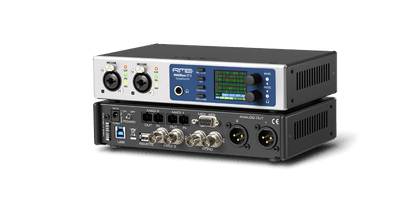

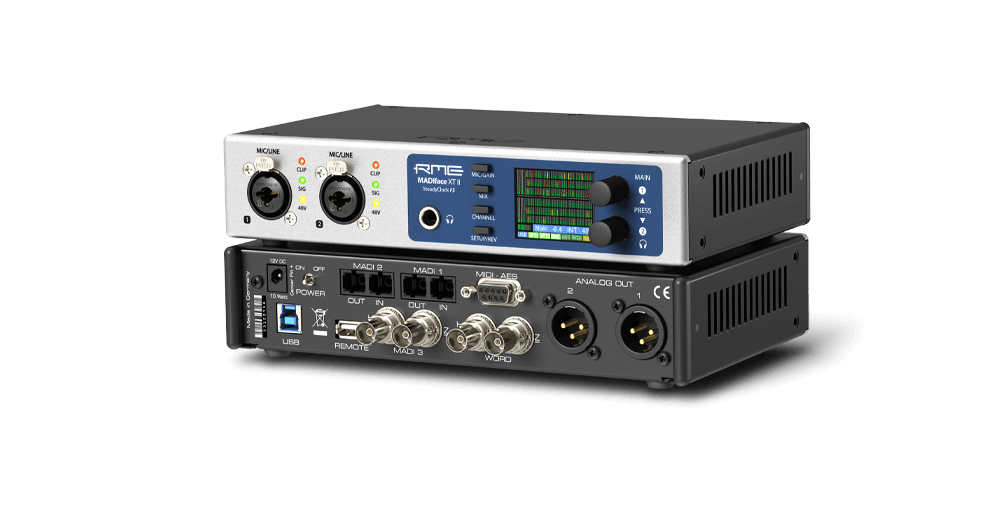

RME MADIface XT II is a 394-Channel Triple MADI USB 3.0 Audio Interface. Connectivity covers 2 x MADI optical I/O, 1 x MADI I/O coaxial, 2 x XLR Mic/Line, 2 x Analog I/O, 1 x Phones Output, 1 x Word Clock I/O.
Studio-grade conversion and RME driver stability in one box.
Overview
394-channel Triple MADI USB 3.0 Audio Interface - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions
RME presents the MADIface XT II a 394-channel 192 kHz USB 3.0 audio interface with comprehensive connectivity and control options. Compared to its predecessor MADIface XT, the MADIface XT II features updated digital and analog circuitry and surpasses the first generation with significantly improved analog and digital performance.
Packed with professional features, including SteadyClock FS, a powerful DSP, USB 3.0 (full 394 channel I/O Class Compliant ready), TotalMix FX with the latest Room EQ feature, and support for the Advanced Remote Control USB (available separately), the MADIface XT II is the professional’s preferred tool for live and studio work.
At a Glance
| Type | Audio Interface |
| Description | 394-Channel Triple MADI USB 3.0 Audio Interface |
| Series | MADIface |
| Connectivity | 2 x MADI optical I/O, 1 x MADI I/O coaxial, 2 x XLR Mic/Line, 2 x Analog I/O, 1 x Phones Output |
| Availability | Sourced to order, call 844-687-4208 |

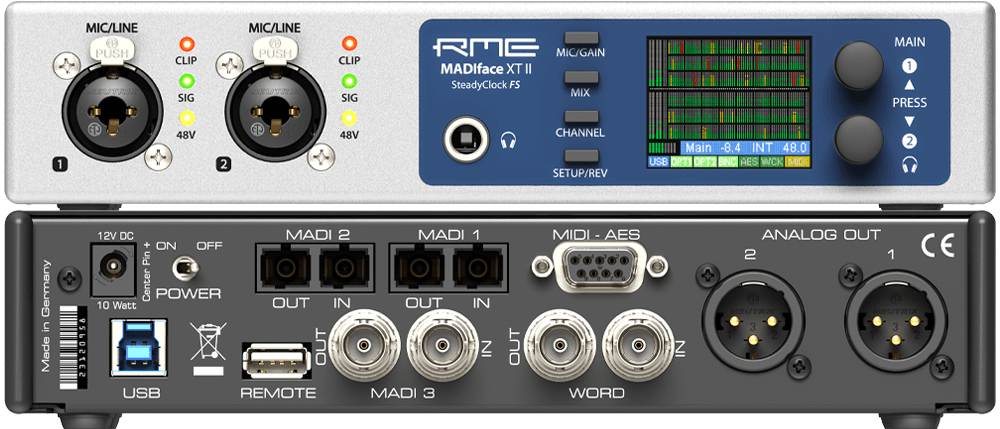

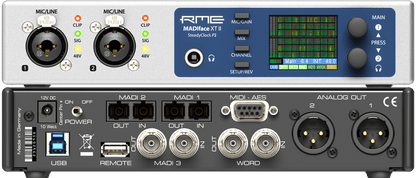

What Connections Does the MADIface XT II Have?
MADIface XT II carries the following connectivity, taken from RME's own specification for this model.
| MADI optical I/O | 2 x |
| MADI I/O coaxial | 1 x |
| XLR Mic/Line | 2 x |
| Analog I/O | 2 x |
| Phones Output | 1 x |
| Word Clock I/O | 1 x |
| AES/EBU I/O | 1 x |
| RME USB 3.0< | 1 x |
Who Is the MADIface XT II For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Input | XLR, electronically balanced |
| Input impedance @ 1 kHz | 3.3 kOhm |
| Signal to Noise ratio (SNR) | 116 dB (AES17), 118.5 dBA |
| Frequency response @ 44.1 kHz, -0.1 dB | 5 Hz - 20.8 kHz |
| Frequency response @ 96 kHz, -0.5 dB | 3 Hz - 45.2 kHz |
| Frequency response @ 192 kHz, -1 dB | 2 Hz - 89 kHz |
| Filter | Short Delay Sharp, 5 / 5 / 6 samples delay |
| THD | < -110 dB, < 0.00032 % |
| THD+N | < -104 dB, < 0.00063 % |
| Channel separation | > 110 dB |
| Gain range | 75 dB |
| Maximum input level, Gain 0 dB | +18 dBu |
| Maximum input level, Gain 75 dB | -57 dBu |
| CLIP LED | 0 dBFS |
| SIG LED | -60 dBFS |
| Input | 6.3 mm TRS jack, balanced |
| Input impedance | 6.6 kOhm balanced, 3.3 kOhm unbalanced |
| Maximum input level TRS, Gain 0 dB | +24 dBu |
| Maximum input level TRS, Gain 60 dB | -51 dBu |
| Dynamic range (DR) | 113.5 dB (AES17), 116 dBA |
| Frequency response @ 44.1 kHz, -0.1 dB | 0 Hz - 20.2 kHz |
| Frequency response @ 96 kHz, -0.5 dB | 0 Hz - 44.7 kHz |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
