RME Micstasy is an 8-Channel Full Range Preamp & AD Converter. Connectivity covers 8 x Analog I/O, 4 x AES/EBU I/O, 2 x ADAT I/O, 1 x Word Clock I/O, 1 x MIDI I/O, AutoSet Digital Gain Control.
Transparent RME preamps placed where the sources are, controlled from anywhere.
Overview
Micstasy - RME Audio Interfaces | Format Converters | Preamps | Network Audio & MADI Solutions

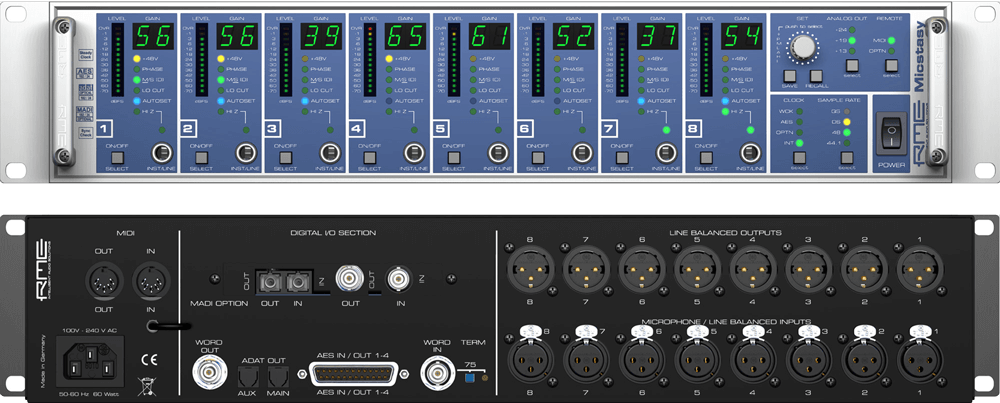

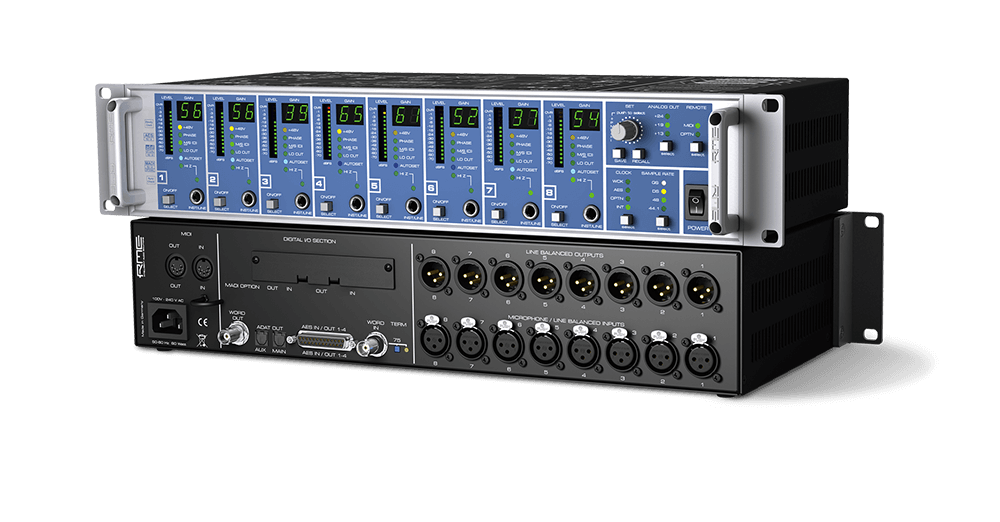

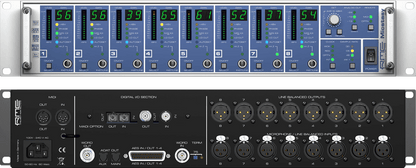

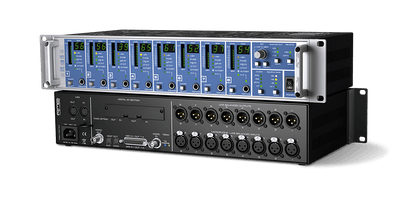

Micstasy is an 8-Channel hi-end mic/line preamp and AD-converter combining typical RME features with a number of previously unseen features. It can be used analog (Mic/Line In to Line Out) and digital (Mic/Line In to Digital Out), with both signal paths operating simultaneously. Special highlight: the device is fully remote-controllable via MIDI (also MIDI over MADI).
Berlin based company Pegasus Musikproduktion was founded in 2014 by Florian B. Schmidt and Aki Matusch. With first-rate mobile equipment they are producing premium music recordings all over europe.
At a Glance
| Type | Microphone Preamp |
| Description | 8-Channel Full Range Preamp & AD Converter |
| Series | Micstasy |
| Connectivity | 8 x Analog I/O, 4 x AES/EBU I/O, 2 x ADAT I/O, 1 x Word Clock I/O, 1 x MIDI I/O |
| Sample rate range | MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz |
| Power supply | Internal switching mode PS, 100V - 240V AC, 60 Watt |
| Dimensions | (WxHxD) 483 x 88 x 200 mm |
| Availability | Sourced to order, call 844-687-4208 |
What Connections Does the Micstasy Have?
Micstasy carries the following connectivity, taken from RME's own specification for this model.
| Analog I/O | 8 x |
| AES/EBU I/O | 4 x |
| ADAT I/O | 2 x |
| Word Clock I/O | 1 x |
| MIDI I/O | 1 x |
| AutoSet Digital Gain Control | Yes |
Who Is the Micstasy For?
It is aimed at engineers, producers and integrators who need RME conversion and driver stability in this format. If you are matching it into an existing rig and want the channel counts and clocking confirmed before you order, call 844-687-4208 and we will check it against your setup.
Specifications
| Frequency response -0.1 dB | 20 Hz - 100 kHz |
| EIN @ 30 dB Gain @ 150 Ohm | 122.3 dBu |
| EIN @ 40 dB Gain @ 150 Ohm | 126.5 dBu |
| EIN @ 50/60/70 dB Gain @ 150 Ohm | 127.4 dBu |
| THD+N @ 30 dB Gain | < -100 dB, < 0.001 % |
| Signal to Noise ratio AD (SNR) @ +30 dBu | 115.2 dB RMS unweighted, 118.5 dBA |
| Signal to Noise ratio AD (SNR) @ +21 dBu | 112.7 dB RMS unweighted, 116 dBA |
| Signal to Noise ratio AD (SNR) @ +13 dBu | 110 dB RMS unweighted, 113 dBA |
| Sync sources | Internal, AES, word, Option (MADI) |
| Sample frequencies | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (external clocks) |
| Sample rate range | MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz |
| Jitter | Typical < 1 ns for internal, word clock, AES and MADI input |
| Jitter suppression | >30 dB (2.4 kHz) |
| Jitter sensitivity | all PLLs operate error-free even at 100 ns |
| Power supply | Internal switching mode PS, 100V - 240V AC, 60 Watt |
| Dimensions | (WxHxD) 483 x 88 x 200 mm |
| Warranty | 2 years |
Why RME?
RME designs and builds its interfaces and converters in Germany and is known for driver support that outlasts the hardware, with current releases for products sold more than a decade ago. TotalMix FX, the routing and monitoring engine shared across the line, runs on the device itself rather than the host computer, so monitoring stays stable regardless of what the computer is doing.
Frequently Asked Questions
Is this a genuine RME product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is this covered by a warranty?
Yes. It carries the full RME manufacturer warranty, and we handle warranty claims for units purchased from us.
How quickly does this ship?
This item is sourced to order. Call 844-687-4208 and we will confirm current lead time before you buy.
Do you offer local pickup?
Yes. Free local pickup is available at our Miami location once the item arrives.
Which operating systems are supported?
RME publishes current drivers for Windows and macOS, and maintains them long after release. Check RME's download page for the release matching your operating system version.
Can you confirm compatibility with my existing system?
Yes. Call 844-687-4208 with your interface, converter or console model and we will confirm channel counts, clocking and cabling before you order.
