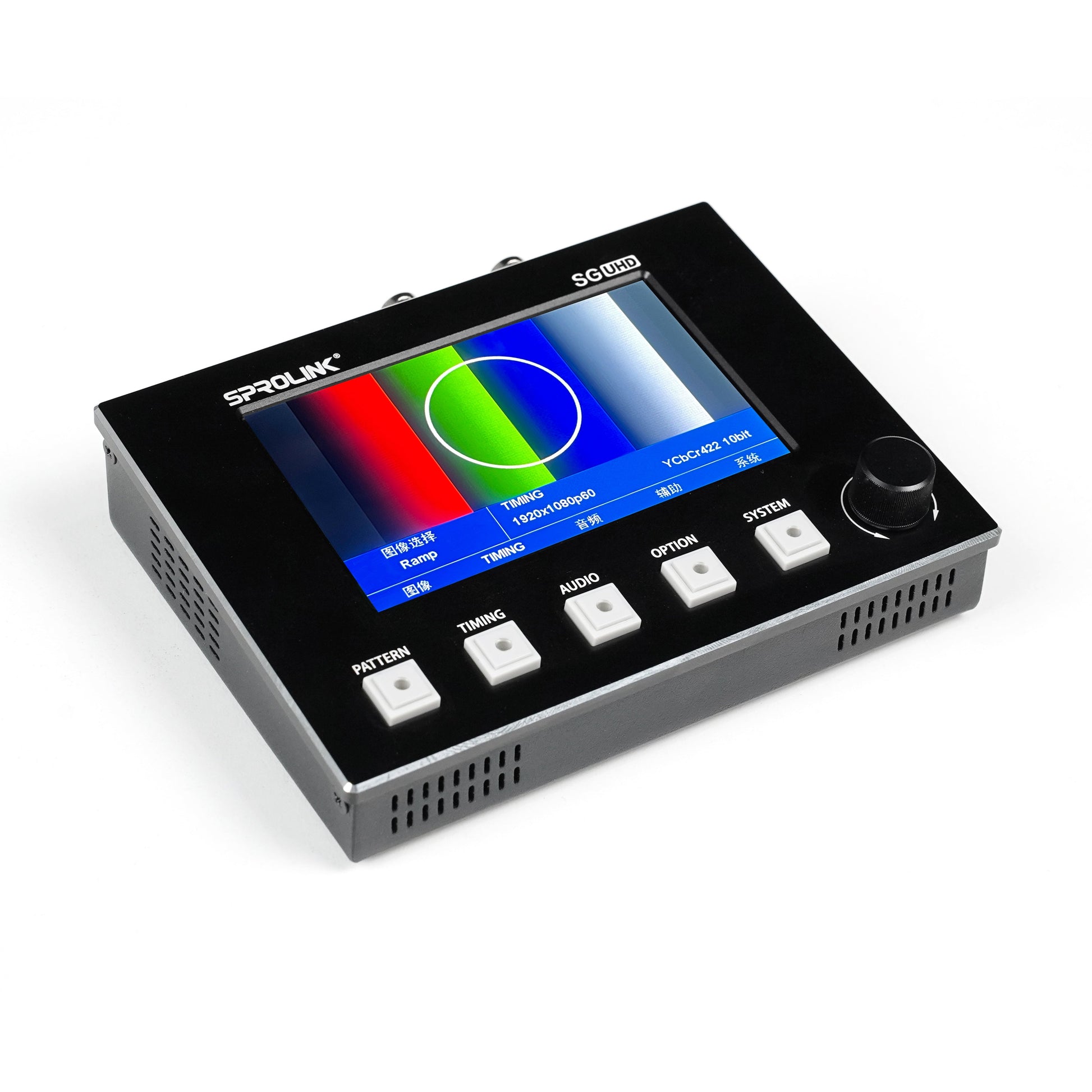

The Sprolink SG-UHD is a 4K multi-format video signal generator with HDMI, 3G-SDI, and SFP outputs, a 4.3-inch screen, SMPTE color bars, custom test patterns, and 16 channels of embedded audio. Call 844-687-4208 for help.
A pocket signal source for setting up, testing, and troubleshooting any video system.
Overview
The SG-UHD is a portable test signal generator for installers and live production techs. It outputs over HDMI, 3G-SDI, and SFP, drives independent 3G-SDI and HDMI 2.0 4K dual channels, and shows status on a 4.3-inch screen.
It includes built-in signals such as SMPTE color bars, supports linear testing, and lets you import custom patterns as test images. It carries up to 16 channels of embedded audio plus a 3.5mm stereo output. An FPGA design keeps it stable for long test sessions, and the metal enclosure adds durability, drop resistance, and better heat dissipation. Power is DC 12V or 5V over USB Type-C.
At a Glance
| Type | Multi-format video signal generator |
| Display | 4.3-inch screen |
| Outputs | HDMI, 3G-SDI, SFP |
| 4K | Independent 3G-SDI and HDMI 2.0 4K dual channel |
| Test signals | SMPTE color bars, linear test, custom patterns |
| Audio | Up to 16 embedded channels + 3.5mm stereo out |
| Power | DC 12V or 5V USB Type-C |
| Build | Metal enclosure, FPGA design |
Key Features
- HDMI, 3G-SDI, and SFP outputs
- Independent 3G-SDI and HDMI 2.0 4K dual channels
- Built-in SMPTE color bars and linear testing
- Import custom patterns as test images
- Up to 16 channels of embedded audio plus 3.5mm stereo output
- DC 12V or USB Type-C 5V power
- Metal enclosure with FPGA design for stable long-run operation
Specifications
| Outputs | HDMI, 3G-SDI, SFP |
| Display | 4.3 inch |
| Audio | 16 embedded channels + 3.5mm stereo |
| Power | DC 12V / 5V USB-C |
| Architecture | FPGA |
Why the SG-UHD
When a display, switcher, or long cable run is not behaving, a known-good signal source is the fastest way to find the fault. The SG-UHD puts HDMI, SDI, and SFP test signals, SMPTE bars, custom patterns, and embedded audio in one rugged, pocketable box, which saves real time on installs and live calls.
Frequently Asked Questions
What outputs does it have?
HDMI, 3G-SDI, and SFP, with independent 3G-SDI and HDMI 2.0 4K dual channels.
Can I load my own test patterns?
Yes. You can import custom patterns as test images alongside the built-in SMPTE color bars.
How is it powered?
DC 12V or 5V over USB Type-C, so it runs from a power bank in the field.
Is it genuine?
Yes. It is authentic Sprolink from an authorized dealer.
Does it include a warranty?
Yes. Sprolink provides a limited warranty against defects in materials and workmanship for the original purchaser. For warranty service or registration, contact Sprolink directly.
