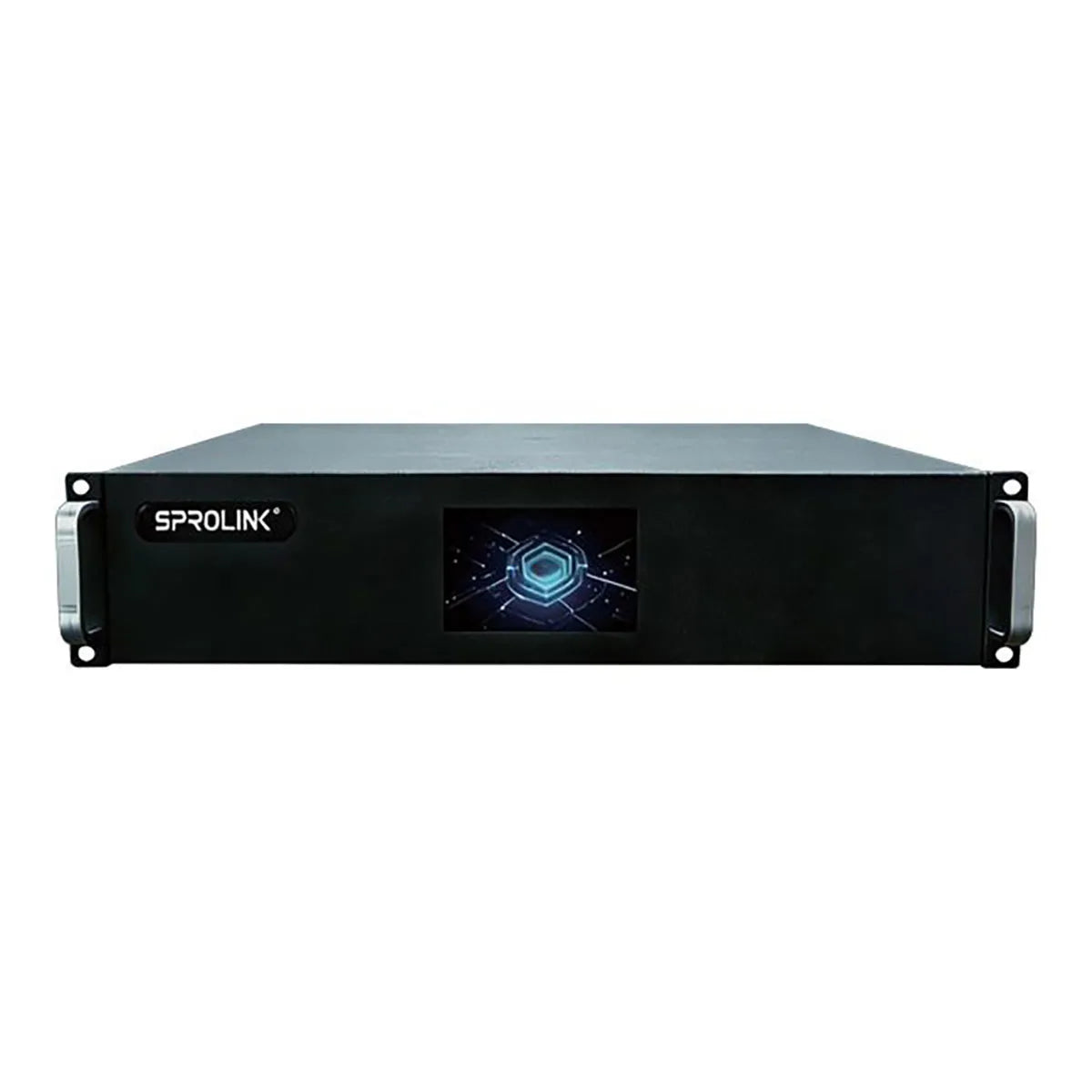

The Sprolink VD-8K 2U is an 8K video wall processor for professional A/V, supporting true 8K@60Hz RGB 4:4:4 with DP2.1, HDMI2.1, DP1.4, and Type-C, genlock frame synchronization, and audio processing. Call 844-687-4208 to scope a project.
A true 8K60 processor for the largest LED walls and pro A/V installs.
Overview
The VD-8K 2U is a high-end video wall processor built for professional A/V. It handles true 8K@60Hz at RGB 4:4:4 across modern interfaces, DP2.1, HDMI2.1, DP1.4, and Type-C, and is backward compatible with 8K@30Hz.
It supports custom input resolutions up to a maximum horizontal input of 16K, provides one 8K@60Hz input and four 4K@60Hz outputs, and includes genlock frame synchronization and audio processing for large, frame-accurate display systems.
At a Glance
| Type | 8K video wall processor (2U) |
| Max resolution | True 8K@60Hz RGB 4:4:4 |
| Interfaces | DP2.1, HDMI2.1, DP1.4, Type-C |
| Backward compatible | 8K@30Hz |
| Custom input | Up to 16K horizontal |
| I/O | One 8K@60Hz input, four 4K@60Hz outputs |
| Sync | Genlock frame synchronization |
| Audio | Audio processing |
Key Features
- True 8K@60Hz RGB 4:4:4 processing
- DP2.1, HDMI2.1, DP1.4, and Type-C interfaces
- Backward compatible with 8K@30Hz
- Custom input resolution up to 16K horizontal
- One 8K@60Hz input and four 4K@60Hz outputs
- Genlock frame synchronization
- Built-in audio processing
Specifications
| Max resolution | 8K@60Hz RGB 4:4:4 |
| Interfaces | DP2.1, HDMI2.1, DP1.4, Type-C |
| Inputs | 1 x 8K@60Hz |
| Outputs | 4 x 4K@60Hz |
| Form factor | 2U |
Why the VD-8K
Driving a very large LED wall at full resolution needs a processor that can take an 8K source and distribute it frame-accurately across multiple 4K outputs. The VD-8K does that with genlock sync and modern 8K interfaces, which is what large fixed installs and high-end stage walls require.
Frequently Asked Questions
What is genlock and why does it matter?
Genlock synchronizes the output frames so a multi-output wall shows one continuous image with no tearing between sections. It is essential on large walls.
What can it drive?
One 8K@60Hz input feeds four 4K@60Hz outputs, with custom input resolutions up to 16K horizontal for very wide walls.
Is it genuine?
Yes. It is authentic Sprolink from an authorized dealer.
Does it include a warranty?
Yes. Sprolink provides a limited warranty against defects in materials and workmanship for the original purchaser. For warranty service or registration, contact Sprolink directly.
