The Evno SX-W1 is the flagship wireless system for alto, tenor, and baritone saxophones in the Evno lineup, designed for superior performance and reliability. It features the W1 True Diversity wireless system, providing the greatest distance and stability for wireless audio transmission. The package contains everything needed in a complete wireless package. The SX-W1 package includes the SX microphone with the Evno W1 True Diversity wireless system.
The SX is the perfect choice from solo performance settings, principal soloist’s in all genres, to high energy horn section bands of all styles. The system can be used in low to high volume applications without the worry about the ‘low bark’ or high end feedback from surrounding instruments. The newly designed clamp allows for perfect placement on the bell of the saxophone putting the head of the microphone at the perfect axis point without any spin or twist to off set the microphone from the instrument. It is easy to clamp on and take off the bell with a spring loaded clamp while always being attached at the perfect height. The clamp is attached to the instrument with a loaded spring but also includes a reinforcement screw if your movement on stage is extreme. With the reinforcement screw not active, the setup can be moved quickly from one horn to another. The clamp also allows the player to integrate the soprano saxophone models as well if desired.
The SX gooseneck, designed in the USA, holds position as desired while being lightweight in design. The microphone itself is built with perfect venting as well as a highly attractive machining process creating a beautiful look while allowing the frequencies of the instrument to fully be captured by the microphone itself. Suspended in a standard microphone suspension of variable 7 points, the microphone allows for simple and easy replacements of the O rings as needed. The microphone body is terminated with a 3 pin mini XLR connection which is used for both wired and wireless connections.
The Evno W1 is the flag-ship wireless setup in the Evno wireless line. The W1 offers a True Diversity antenna system which provides the greatest distance at about 150meters. The Evno W1 True Diversity operates two antennas and two receivers at the same time while combining the audio. The antenna system switches the audio between antenna A and B depending on which antenna signal is stronger at the position on the stage. A True Diversity system is more stable and advanced as it also offers greater range as apposed to a diversity system with a single or double antenna.
The W1 is housed in a metal chassis with 1-XLR and 1-1/4in output. A 1/2 rack-mountable design, the system come with a rack-kit and extension cables to place in a standard rack unit. The extension kit places the antennas on the front of the of the rack case allowing quick removal of the antennas for storage. The antennas disconnect with an BNC locking connector to either the back or front when racked.
Powered by an included 12V power supply is easy to setup. The available 99 channels are changed with with a sync’ing process that sends the signal from the receiver to the transmitters with IR. Easy to change quickly on stage. Use of 5-6 systems simultaneously allows for horn style bands of all types to use an Evno belt-pack free wireless system. The W1 can also be used along side the Air and W2 systems and are not only compatible with both but also compatible with the A2, AH, and A4 transmitters. *Dependent on region and availability.

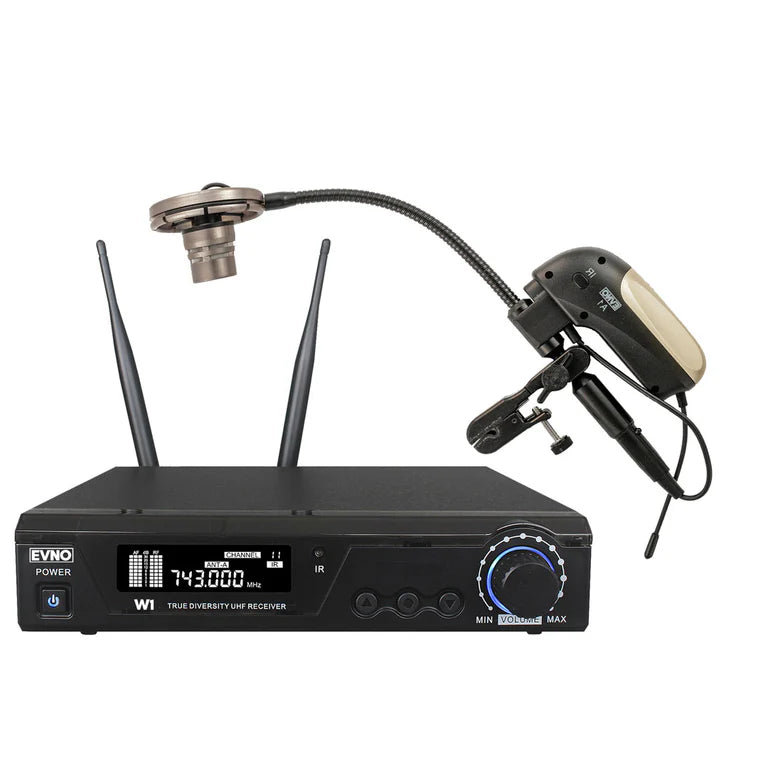

The complete Evno SX-W1 setup includes the Evno SX microphone, Evno SX-CL Clamp, W1 true diversity receiver, A1 transmitter, power supply and rack kit.
