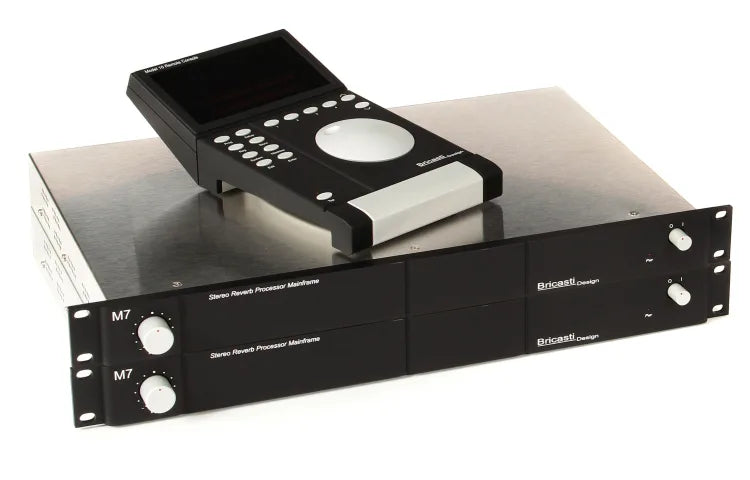

Bricasti Design System 2 with M10 and Two M7Ms is a complete professional reverb system with one M10 controller and 2 independently addressable M7M stereo engines.
Built for critical listening, repeatable sessions, and long-term studio integration.
Overview

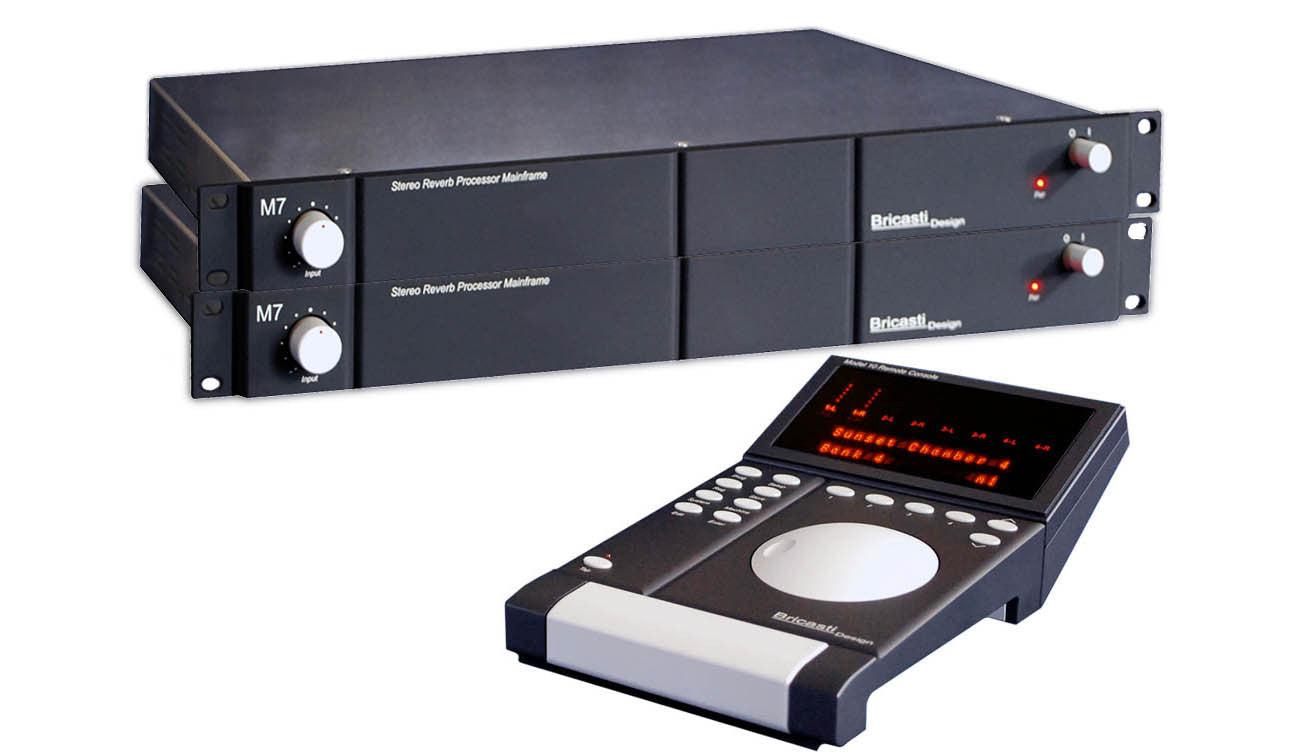

The Bricasti Design System 2 combines one M10 Remote Console with 2 M7M stereo reverb mainframes. It gives professional studios 2 independently addressable engines and tactile control from the listening position.
At a Glance
| System | One M10 plus 2 M7M mainframes |
|---|---|
| Stereo reverb engines | 2 |
| Control | Centralized from M10 |
| Per-engine digital I/O | 24-bit AES/EBU, 44.1 to 192 kHz |
| Per-engine analog I/O | Balanced XLR |
| Expansion ceiling | Up to eight processors per M10 |
What Is Included in Bricasti System 2?
The Bricasti Design System 2 combines one M10 Remote Console with 2 M7M stereo reverb mainframes. It gives professional studios 2 independently addressable engines and tactile control from the listening position.
Why Choose 2 M7M Engines?
With 2 M7M mainframes, an engineer can dedicate separate stereo reverbs to vocals, drums, instruments, scoring, or post-production stems and control them from one M10 without sharing a single engine.
Key Features
- 2 independent stereo True Stereo Reverb Process engines
- Centralized M10 control and multi-machine metering
- More than 200 programs and 100 user registers per M7M
- Balanced analog and AES/EBU integration on every mainframe
- Expandable M10 architecture for up to eight processors
- Handcrafted professional hardware system
Technical Specifications
| Package | 1 × M10 Remote Console; 2 × M7M Reverb Mainframes |
|---|---|
| Processing | True Stereo Reverb Process; six dual-core Analog Devices DSPs |
| Programs | More than 200 reverb presets; 100 user registers; 12 program parameters |
| Digital I/O | 24-bit AES/EBU on XLR; single-wire operation through 192 kHz |
| Digital sample rates | Self-clocking from 44.1 kHz to 192 kHz |
| Analog I/O | Balanced XLR; fully balanced, DC-coupled input and output circuits |
| Analog input | >116 dB A-weighted dynamic range; <0.001% THD+N; +24 dBu maximum |
| Analog output | >116 dB A-weighted dynamic range; <0.001% THD+N; +24 dBu maximum |
| Frequency response | 10 Hz to 20 kHz, within 0.05 dB |
| Level control | Analog input level adjustable in 2 dB steps |
| Construction | Stainless-steel chassis; milled anodized-aluminum front panel; separate analog and digital modules |
| Power architecture | Toroidal transformer linear analog supply plus dedicated digital switching supply |
| Compatibility | Bricasti M7 and M7M reverb processors |
| Machine control | Controls one to eight connected processors |
| Connection | RS422 serial interface using the Bricasti serial cable system |
| Included connection kit | 10-meter serial cable and serial loop-through terminator |
| Maximum cable run | Up to 30 meters from the first processor without an additional power source |
Why Bricasti Design?
Bricasti Design builds focused professional audio hardware in the United States with dedicated processing, carefully separated analog and digital sections, robust metalwork, and direct workflow controls. The result is equipment designed for recording, mixing, mastering, post-production, broadcast, and other critical listening environments.
Frequently Asked Questions
What is included in Bricasti System 2?
System 2 combines one M10 Remote Console with 2 M7M stereo reverb processors for centralized control.
How many independent reverb engines are in System 2?
It provides 2 independent stereo M7M reverb engines, each based on the M7 processing platform.
What sample rates do the M7M processors support?
Each M7M provides 24-bit AES/EBU digital I/O and self-clocks to incoming sample rates from 44.1 to 192 kHz.
Can the system be expanded?
Yes. The M10 can control up to eight compatible processors, with an M7-SC serial interconnect cable added for each additional mainframe in the chain.
Who should choose System 2?
It is built for professional rooms that need 2 independently addressable stereo reverb engines under tactile control at the listening position.
