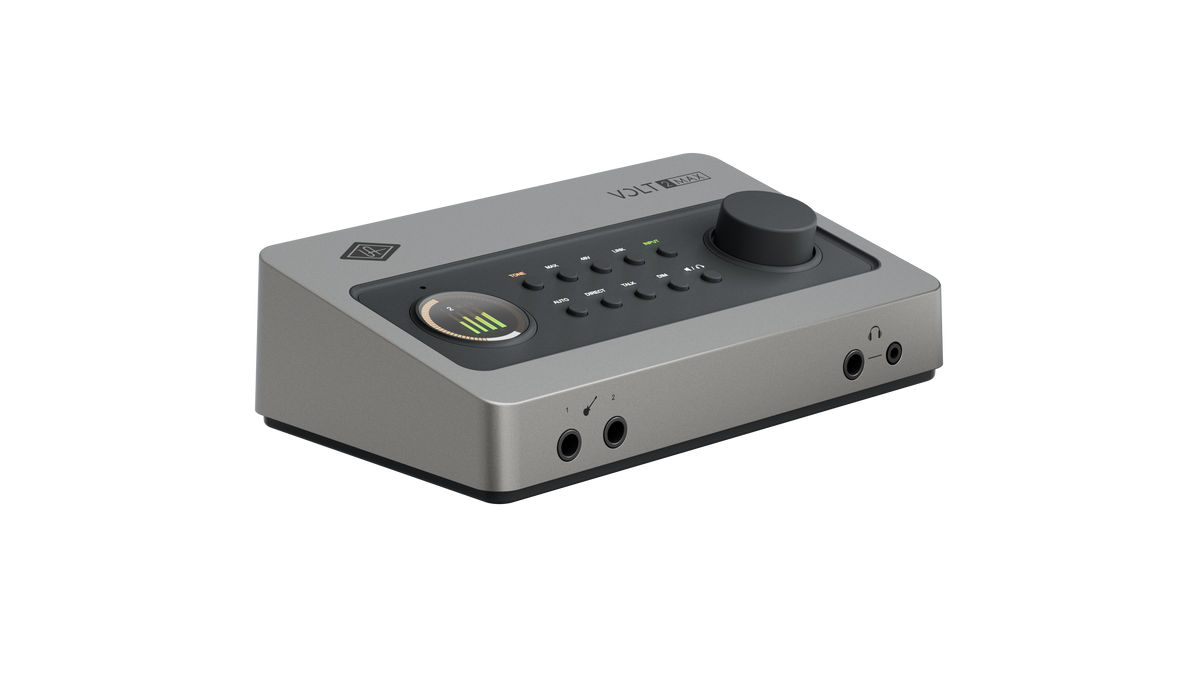

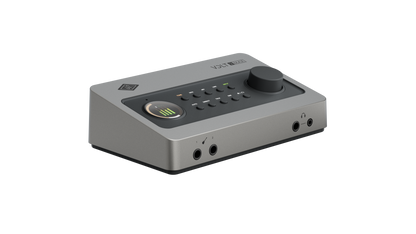

Universal Audio Volt 2 Max is a 10-in / 4-out desktop USB audio interface with 32-bit / 192 kHz conversion, two Tone Shaping Preamps carrying harmonic saturation, Max realtime compression with six presets built on the LA-2A, 1176 and discrete VCA algorithms, a built-in talkback microphone, ADAT or S/PDIF optical input, MIDI In and Out, and a full colour Smart Display with gain reduction metering.
Universal Audio compression on the way in, not after the fact.
Volt 2 Max is a next generation desktop USB audio interface with two Tone Shaping Preamps, a Smart Display with bright visual feedback, and Max dynamics processing. Taken together it packs the rich, full sound of a pro studio into the smallest footprint possible.
Built by the same Universal Audio team as the Apollo interfaces, Volt Max gives you studio mic preamp tones and classic compression at the push of a button. Six push-button presets ranging from Rap Vocals to Jangly Acoustic deliver big, radio ready sounds based on the 1176 and LA-2A studio compressors. Combined with the three preamp modes, that puts 18 sonic possibilities at your fingertips, all of them completely noise free.
The interface does not become a bottleneck either. Dual mic and Hi-Z instrument inputs record multiple sources at once, clean 48V phantom power feeds studio condensers, MIDI connects controllers and synths, and ADAT adds eight more digital inputs when the need arises.
Volt 2 Max at a Glance
| Format | Desktop USB audio interface, bus powered |
| Simultaneous I/O | 10-in / 4-out |
| Mic preamps | Two, 60 dB available gain, with Tone Shaping, harmonic saturation and Max compression |
| Tone Shaping modes | Warmth, Focus, Shine, each with harmonic saturation |
| Max Processing | Six realtime compression presets for vocals, guitars and bass |
| Conversion | 32-bit, up to 192 kHz |

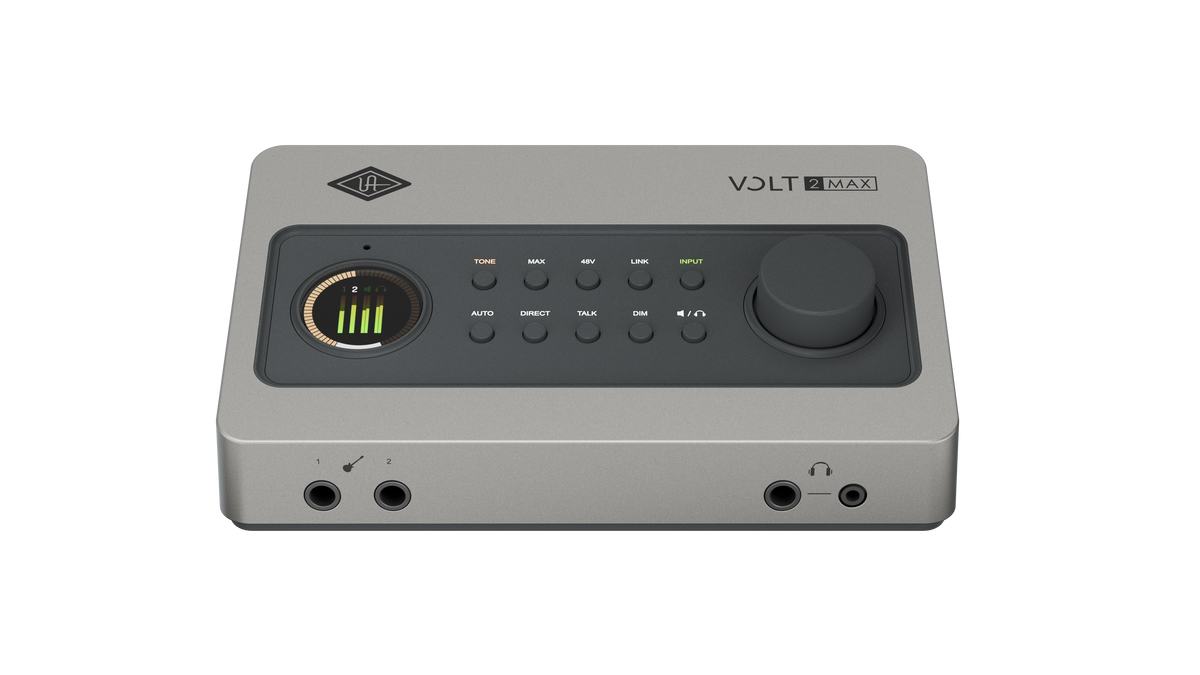

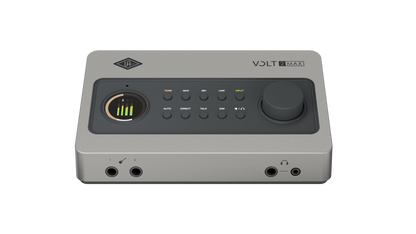

| Instrument inputs | Two front-panel Hi-Z |
| Talkback | Built-in microphone |
| Speaker switching | Not fitted |
| Digital input | ADAT or S/PDIF optical, up to eight channels |
| MIDI | In and Out, 1/8 inch TRS mini-jack, MIDI Type A |

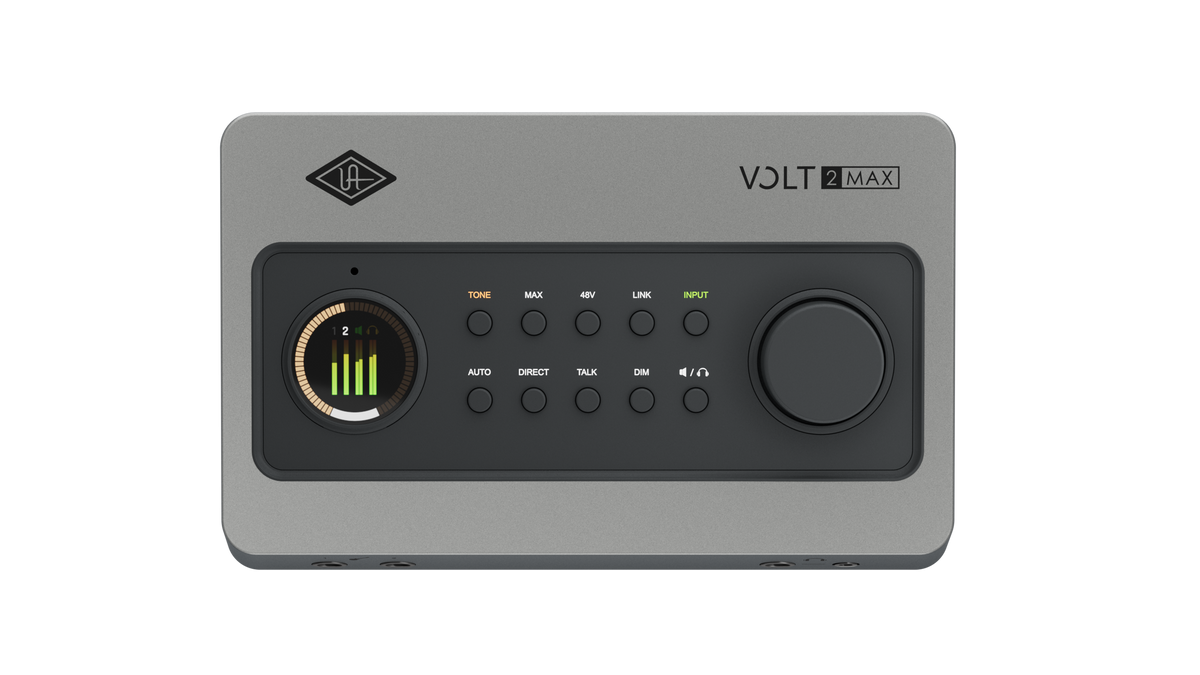

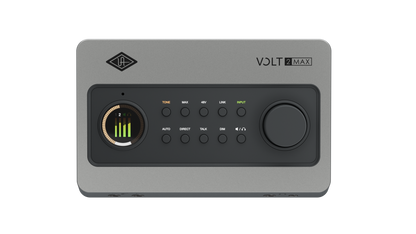

| Display | Full colour Smart Display with gain reduction metering |
| Headphone outputs | Two stereo, one shared cue mix |
| Connection | USB Type-C, USB 2.0 class compliant, onboard USB hub |
| Software included | UAD Volt Studio Bundle and LUNA |
Who Is Volt 2 Max For?
Volt 2 Max replaces the Volt 276 and it is aimed at the person who wants the sound committed on the way in. Two sources at a time with real compression, a talkback mic for working with a vocalist, and a second headphone output so someone else can hear the mix. If you also need speaker switching between two sets of monitors, step up to Volt 4 Max.

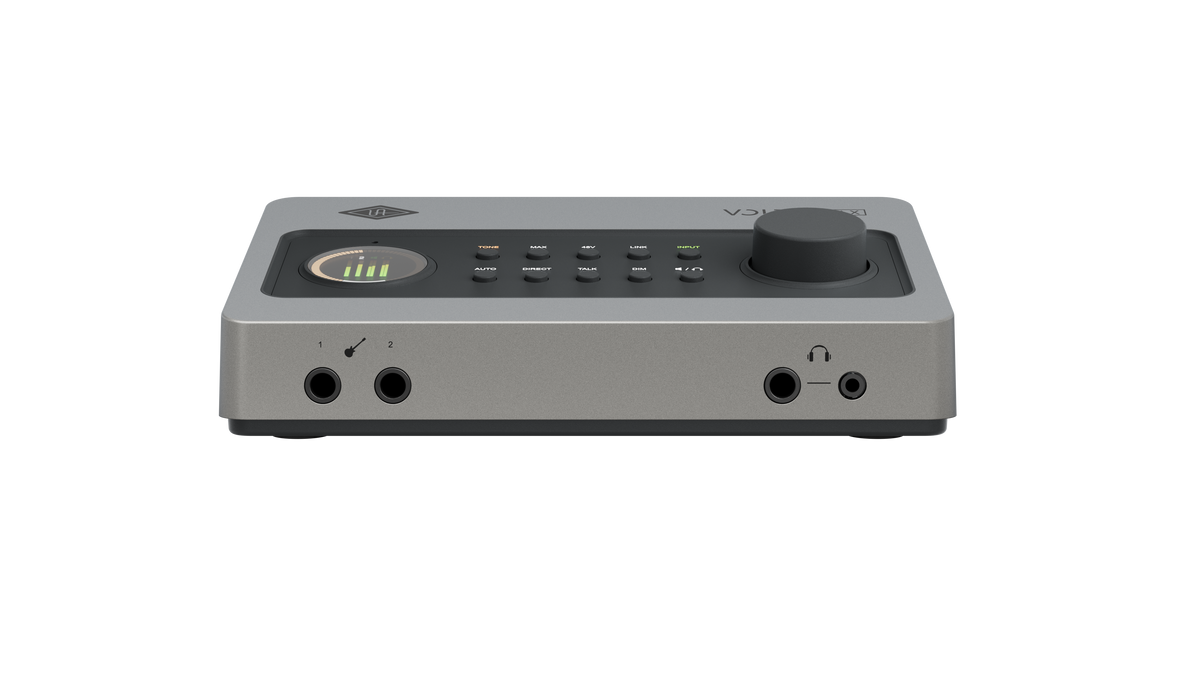

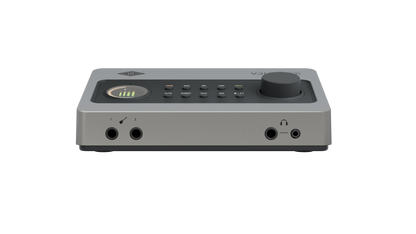

What Do the Tone Shaping Preamps Sound Like?
Every Volt Max preamp has a TONE button. Off is a clean preamp with 60 dB of transparent gain. Three further voicings colour the signal on the way in, and on the Max models each one adds harmonic saturation on top of the EQ, which is what Universal Audio means by a Unison Lite preamp.
Thick, dark and warm EQ with rich harmonics.
Mid-focused and tight EQ with harmonic edge.
Presence and shine EQ with harmonic sizzle.
What Does MAX Processing Do?
MAX is a second button and a second layer. It puts Universal Audio's realtime compression on the input channel, running on onboard DSP, so it is noise free and it records to the track. Six presets cover the jobs people actually need, and a seventh position tracks flat. Paired with the three TONE voicings that is over 18 character combinations from two buttons.
1176. Classic 8:1 vocal compression.
LA-2A. Smooth rap vocal limiting.
1176. Fast release 4:1 vocal compression.
1176. Pushes back spikey guitar peaks.
LA-2A. Deep tube opto compression.
Discrete VCA. Clean envelope control for bass.
Track flat and decide later with plug-ins.

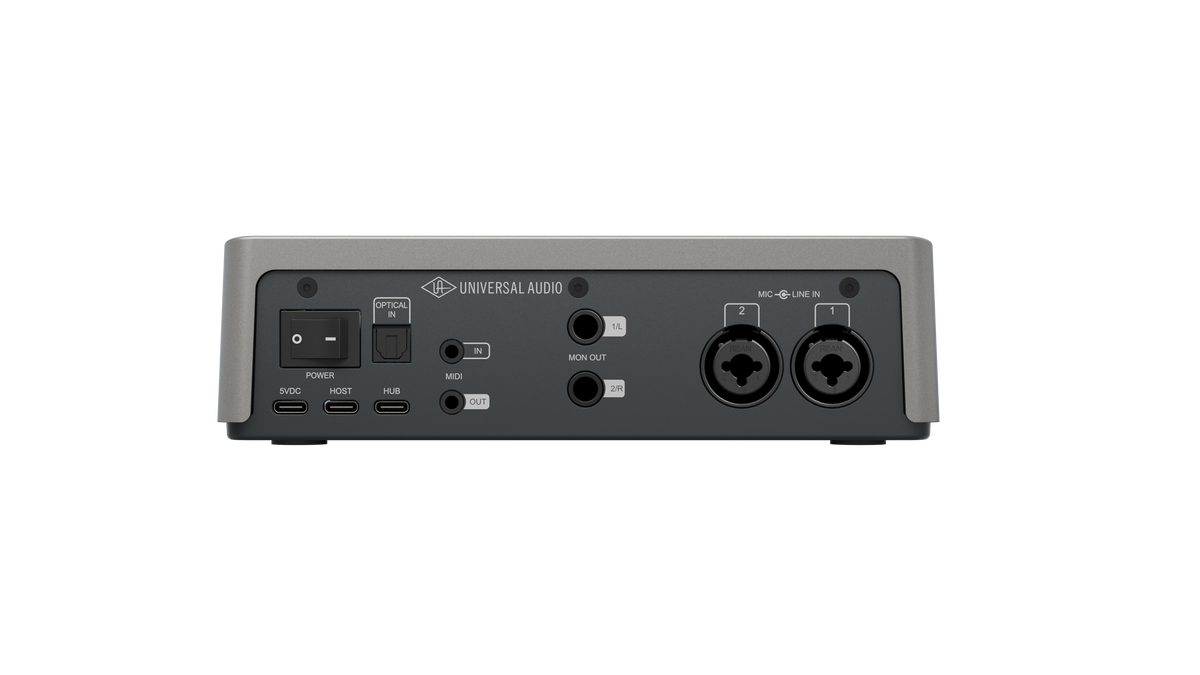

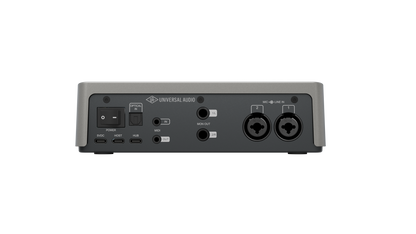

What I/O Does Volt 2 Max Have?
| Instrument inputs 1-2 | 1/4 inch TS unbalanced, 1 Megohm, 60 dB available gain |
| Microphone inputs 1-2 | XLR combo jack, pin 2 positive, 2 Kilohms, +48V switchable per channel |
| Line inputs 1-2 | 1/4 inch combo jack, TRS balanced or TS unbalanced, 10 Kilohms |
| Monitor outputs | One stereo pair, 1/4 inch TRS balanced, DC coupled |
| Headphone outputs | Two stereo, 1/4 inch and 1/8 inch TRS, DC coupled, one shared cue mix |
| Digital / optical | ADAT or S/PDIF optical input. ADAT gives 8 channels at 44.1 and 48 kHz, 4 channels at 96 kHz and 2 channels at 192 kHz with S/MUX. S/PDIF gives 2 channels at all supported rates |
| MIDI | In and Out, 1/8 inch TRS mini-jack, MIDI Type A |
| Talkback | Built-in microphone |
| USB | One USB 2.0 host port, one USB hub port supplying 5VDC at 0.5A maximum, one USB external power input, USB Type-C connectors |
What Software Comes with Volt 2 Max?
Every Volt includes a curated set of UAD plug-ins and instruments, the same software used to make and mix records for decades, plus LUNA, Universal Audio's digital audio workstation with analog emulation and tools that shorten the setup work. Bundle contents are subject to change without notice.
| UAD Volt Studio Bundle | LUNA Digital Audio Workstation, Topline Vocal Tune, UA 610 Tube Preamp & EQ Collection, Century Tube Channel Strip, Teletronix LA-2A Tube Compressor, UA 1176 Classic FET Compressor, Pure Plate Reverb, Galaxy Tape Echo, Oxide Tape Recorder, Vibe Analog Machines, PolyMAX Synth, Anthem Analog Synth, UAD Lion '68 Super Lead Amp, UAD Showtime '64 Tube Amp |
| Additional software | Melodyne Essential by Celemony, Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance (SVT-VR Classic, bx_Tuner, bx_Masterdesk_Classic), Virtual Drummer DEEP by UJAM, Virtual Bassist DANDY by UJAM, Splice INSTRUMENT, Prisma Producer Lab by UVI, FL Studio Producer Edition for three months |
What Are the Full Volt 2 Max Specifications?
| Supported sample rates | 44.1, 48, 88.2, 96, 176.4 and 192 kHz |
| Bit depth | 32 |
| Instrument input dynamic range | 116 dB, A-weighted |
| Instrument input maximum level | 13 dBu |
| Microphone input dynamic range | 119 dB, A-weighted |
| Microphone input THD plus noise | -110 dB, 0.0003 percent at 1 kHz |
| Microphone input maximum level | 14 dBu |
| Line input dynamic range | 119 dB, A-weighted |
| Line input maximum level | 22 dBu |
| Monitor output dynamic range | 126 dB, A-weighted |
| Monitor output maximum level | 20.2 dBu |
| Monitor output impedance | 200 Ohms |
| Headphone output dynamic range | 116 dB, A-weighted |
| Headphone output power | 45 mW into 32 Ohms, 24 mW into 300 Ohms |
| USB bus powered | Yes |
| Power consumption at 5VDC | 4.1W typical, 5.7W maximum |
| On / off switch | Yes, rear panel |
What Do I Need to Run Volt 2 Max?
| Mac | macOS 12 Monterey or newer, Intel or Apple silicon, available USB 2.0 or higher port |
| Windows | Windows 10 64-bit or newer, Intel or AMD processor, ASIO driver from the UA Connect app |
| iPad and iPhone | iPadOS or iOS 16 or newer |
| DAW compatibility | All major DAWs, including Ableton Live, FL Studio, GarageBand, Logic Pro and Pro Tools |
Lightning equipped iPhone and iPad models need an Apple Lightning to USB Camera Adapter. Devices with USB-C connect directly. Windows systems use the ASIO driver available in the UA Connect app. Bus power requirements vary by model and device.
Which Volt Is Right for You?
Six models share the same converters, the same 60 dB preamps and the same software. They differ in how many sources you record at once, whether the preamps also compress, and what you can plug into the back.
Why Universal Audio
Universal Audio has been building recording equipment since 1958, when Bill Putnam Sr. designed the 610 console and the 1176 limiter that are still the reference for the sound of a record. The modern company builds the Apollo interfaces, UAD plug-ins and the LUNA digital audio workstation. Volt takes the preamp voicings and dynamics algorithms from that catalog and puts them in a bus powered box that fits beside a laptop.
Frequently Asked Questions
What is Max Processing on Volt 2 Max?
Max Processing is onboard realtime DSP compression on the input channels. Six push-button presets cover vocals, guitars and bass, built on Universal Audio's LA-2A, 1176 and discrete VCA algorithms. It is completely noise free and it records to the track, so the sound is committed at the source.
What is the difference between TONE and MAX?
TONE shapes the preamp with EQ and harmonic saturation across three character modes, Warmth, Focus and Shine. MAX adds compression and limiting on top. Pairing them gives over 18 character combinations.
Does Volt 2 Max have speaker switching?
No. Volt 2 Max has one stereo monitor output. Speaker switching between main and alternate monitor pairs is fitted to Volt 4 Max and Volt 4P Max.
Does Volt 2 Max need a power supply?
No. Volt 2 Max is USB bus powered. There is a separate USB-C external power input requiring 5VDC at 1A minimum, an onboard USB hub port for peripherals, and a rear panel power switch.
Is this a genuine Universal Audio product?
Yes. Victory is a veteran owned dealer in Miami and units ship new in original packaging.
Is Volt 2 Max covered by a warranty?
Yes. The unit carries the full Universal Audio manufacturer warranty. Register it with Universal Audio after purchase and keep your receipt.
