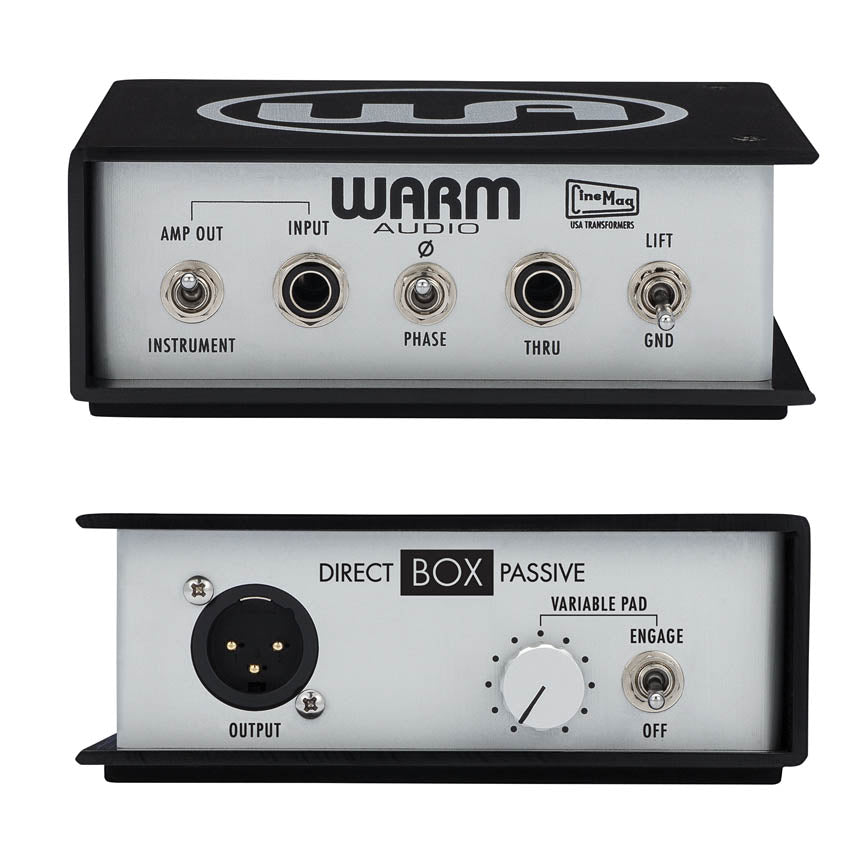

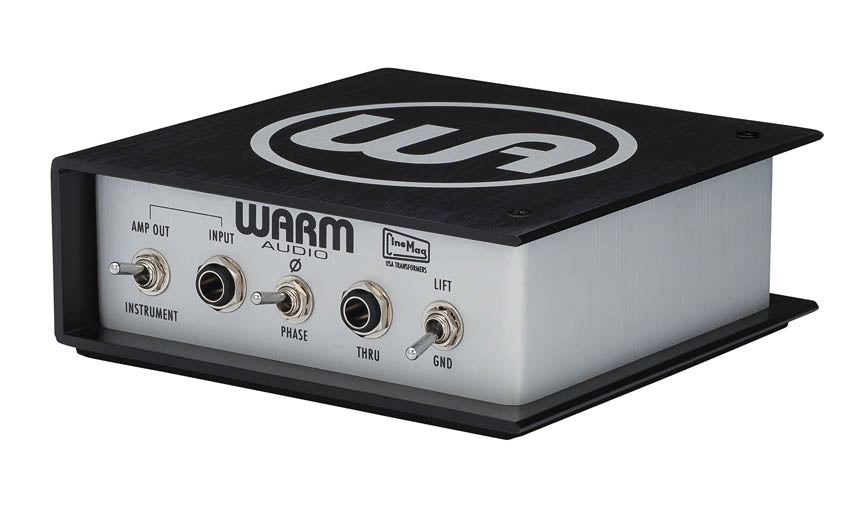

WA-DI-P is a passive direct box with a CineMag transformer, converting instrument level to balanced mic level with no power required. Passive is the right choice for active pickups, keyboards and any source with a strong output.
No power, nothing to fail, and the right answer for anything with a buffered output.
Whether you play guitar, bass, keyboards or another stringed instrument, you'll need a direct box that won't diminish your instrument's tone, like the Direct Box Active and Direct Box Passive from Warm Audio. Every aspect of our direct boxes are designed for maximum sonic integrity, from the custom-wound CineMag USA transformer to the rugged metal knob and switches. You can expect warm, rich tone even after long cable runs, and the extruded aluminum enclosure ensures a long life span. When you need to convert an instrument-level signal to mic-level, with sonic quality as your top priority, you'll be well-served with the Direct Box Active and Direct Box Passive from Warm Audio. Built around world-famous CineMag USA Transformer topology and engineering, like no other DI Boxes in the world. Constructed with top-tier discrete components housed in rugged aluminum chassis' that include switches, knobs and connectors that are all designed to withstand heavy abuse on the road or in the studio. Features include: · Custom-wound CineMag USA transformer · Converts instruments to mic-level signals without signal degradation · Ideal solution for plugging your instrument direct into any mic pre, mixer or recording device · Top-quality discrete components with gold-plated traces on circuit board · Rugged aluminum chassis construction · Pad: Variable from -3dB to -30dB · Balanced Output: 600 ohms, mic level · Input Impedance: 1 Meg Ohms · THD: .01% from 20Hz to 100Hz; Less than .004% from 100Hz to 20kHz · Frequency Response: 20Hz to 70kHz +/- 0.5dB
At a Glance
| Brand | Warm Audio |
|---|---|
| Model | WA-DI-P |
| Product type | Audio Accessory |
| Warranty | Warm Audio limited warranty |
When Should I Use a Passive DI?
With active pickups, keyboards, drum machines and any source that already has a strong buffered output. Those sources do not need the impedance help an active DI provides, and a passive box has fewer things to go wrong.
Does a Passive DI Need Power?
No. The transformer does the work, so there is no phantom power requirement and nothing to fail on a dark stage.
What Does the Transformer Do?
It balances the signal and isolates the instrument from the desk electrically, which is what removes hum and ground loop noise between two pieces of gear on different circuits.
Why Warm Audio
Warm Audio builds recreations of the classic studio hardware most engineers will never get to own, at a fraction of what the originals cost. The company sources premium components, CineMag and custom transformers, Fairchild-grade capacitors, NOS tubes where the design calls for them, and puts them into circuits copied closely from the originals rather than approximated. It has grown from microphones and preamps into compressors, EQs, direct boxes, guitar pedals and cable.
